纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (1.074[00]) - DRYER ASSEMBLY, AIR (YN96V00026F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
224 次

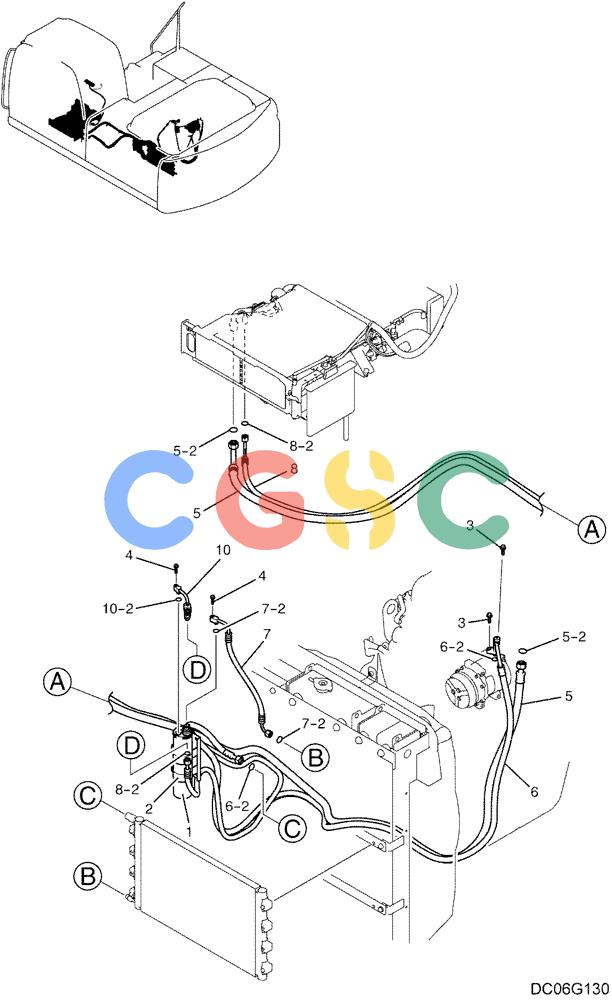

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN54S00041P1 | [1] | RECEIVER-DRIER | SM Superseded by part number: LQ54S00005P1 |
| 2. | YN20M01469P1 | [1] | BRACKET | KOB |
| 3. | YT96V00001S009 | [2] | SCREW | KOBScrew -- M08x25mm Long |
| 4. | YT96V00001S010 | [2] | CAP | KOBScrew -- M06x25mm Long |
| 5. | YN20M01529F1 | [1] | FLEXIBLE HOSE | SM(Incls. O-Ring 2445Z1604D5) |
| 5-2. | 2445Z1604D5 | [2] | O-RING | KOB(Part of YN20M01529F1), 5/8 in |
| 6. | YN20M01528F1 | [1] | FLEXIBLE HOSE | SM(Incls. O-Ring 2445Z1604D4) |
| 6-2. | 2445Z1604D4 | [2] | O-RING | KOB(Part of YN20M01528F1), 1/2 in |
| 7. | YN20M01547F1 | [1] | FLEXIBLE HOSE | SM(Incls. O-Ring 2445Z1604D6) |
| 7-2. | 2445Z1604D6 | [2] | O-RING | KOB(Part of YN20M01547F1), 08mm |
| 8. | YN20M01617F1 | [1] | FLEXIBLE HOSE | SM(Incls. O-Ring 2445Z1604D6) |
| 10. | YN20M01518F1 | [1] | RIGID TUBE | SM(Incls. O-Ring 2445Z1604D6) |
