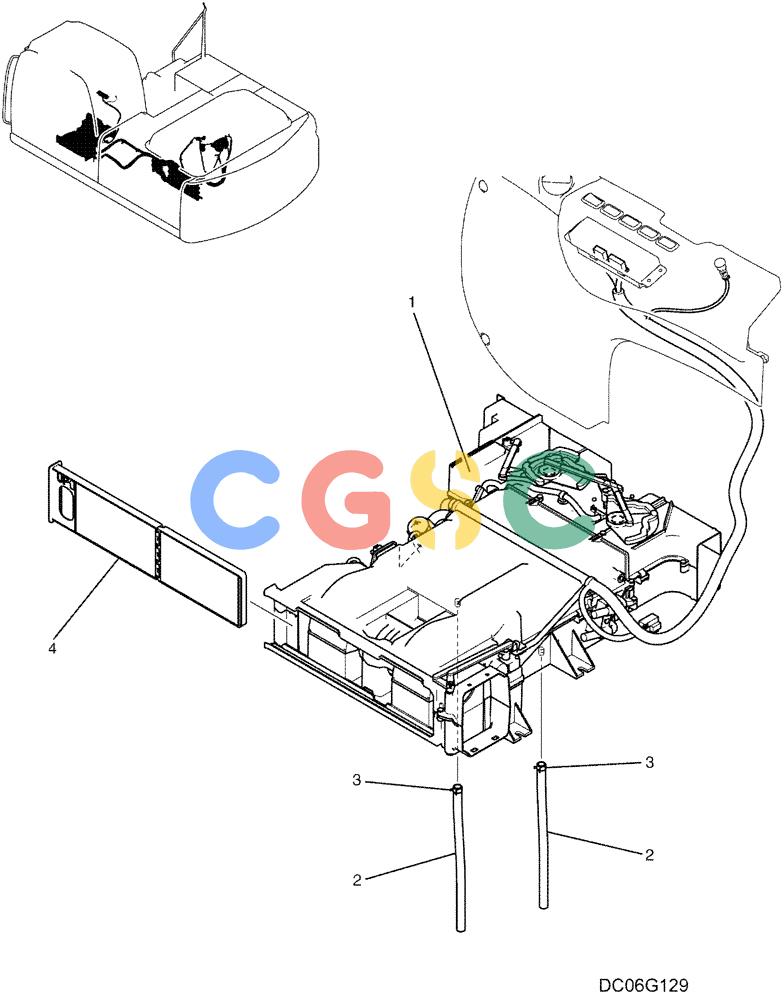

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (1.073[00]) - CONDITIONER ASSEMBLY, AIR (YN20M00113F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
404 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN20M00107F2 | [1] | AIR CONDITIONER | SMAIR CONDITIONING Assembly -- See Figure 1.076 Superseded by part number: YT20M00022F4 |
| 2. | LC20M01014D2 | [2] | HOSE,11mm ID x 360mm L | KOBID 11 x OD 15 x 360mm |
| 3. | 24100U1176S5 | [2] | CLAMP | KOB |
| 4. | YN50V01014P1 | [1] | CAB FILTER,124mm W x 491.5mm L | SMElement, Air-conditioner -- 478.5x114x31mm Superseded by part number: YN50V01014P1P |
