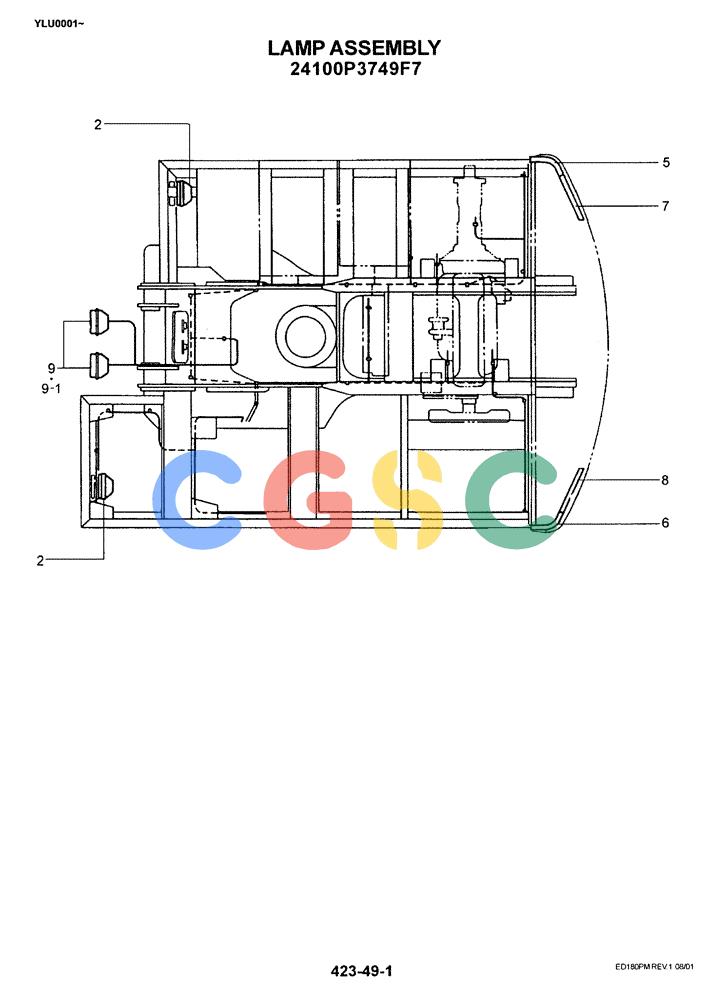

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (06-006) - LAMP ASSEMBLY 24100P3749F7 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
276 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P3749F7 | [1] | LAMP ASSY | |
| 2. | 2456R248 | [2] | LIGHT,28V, 60W | KOBHEAD |
| 5. | 2456U104F3 | [1] | LIGHT,RH, 24V, 25W | KOB(RH), SEE FIGURE 06-007 |
| 6. | 2456U104F4 | [1] | LAMP,LH, 24V, 25W | KOB(LH) |
| 7. | 2456U105F3 | [1] | LIGHT,RH, 24V, 25W | KOB(RH) |
| 8. | 2456U105F4 | [1] | LIGHT,LH, 24V, 25W | KOB(LH) |
| 9. | 2456R442F1 | [2] | LIGHT | KOB |
| 9-1. | 78856 | [1] | BULB | HITBEAM, SEALED |
