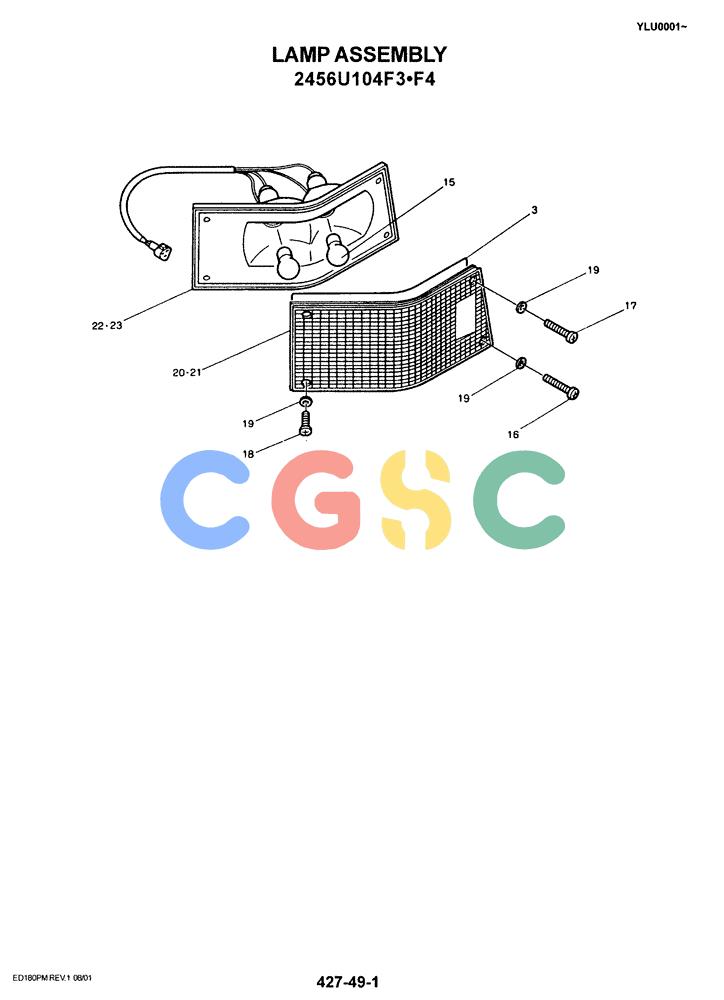

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (06-007) - LAMP ASSEMBLY 2456Y104F3-F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
881 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2456U104F3 | [1] | LIGHT,RH, 24V, 25W | KOB(RH) |
| . . | 2456U104F4 | [1] | LAMP,LH, 24V, 25W | KOB(LH) |
| 3. | 2456U104S3 | [1] | PACKING | KOB |
| 15. | 2456U85S4 | [2] | BULB | KOB24V -- 25W |
| 16. | 2456U104S16 | [1] | SCREW | KOB |
| 17. | 2456U104S17 | [1] | SCREW | KOB |
| 18. | 2456U104S18 | [2] | SCREW | KOB |
| 19. | 2456U104S19 | [4] | WASHER | KOB |
| 20. | 2456U104S20 | [1] | LENS | KOB(RH) |
| 21. | 2456U104S21 | [1] | LENS | KOB(LH), F4 ONLY |
| 22. | 2456U104S22 | [1] | HEADLAMP LENS | KOB(RH), F3 ONLY |
| 23. | 2456U104S23 | [1] | HEADLAMP LENS | KOB(LH), F4 ONLY |
