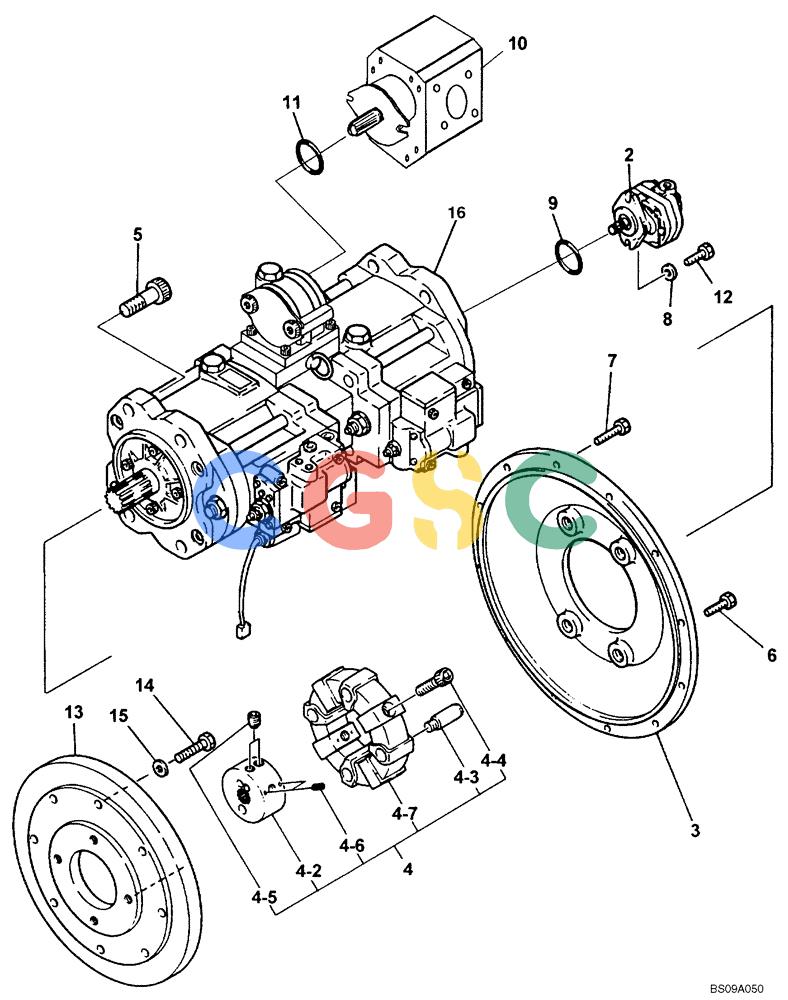

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (05-003) - POWER TAKE-OFF ASSEMBLY (24100N10106F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
853 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N10106F2 | [1] | POWER TAKE OFF ASSEMBLY | |
| 2. | 2437U507F1 | [1] | PUMP | KOBASSEMBLY, GEAR (See Figure 12-022) |
| 2. | 2437U507F1R | [1] | REMAN-HYD PUMP | RACED180 BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001, ASSEMBLY, GEAR |
| 2. | 2437U507F1C | [1] | CORE-HYDRAULIC PUMP | RACReturn Number |
| 3. | 2416N6903 | [1] | BRACKET | KOB |
| 4. | 2418U224F2 | [1] | COUPLING | KOBASSEMBLY, Incls. Refs. 4-2 - 4-7 |
| 4-2. | 2418U224S2 | [1] | HUB | KOB |
| 4-3. | 2418U162S2 | [4] | BOLT | KOBM16x2.0x16mm Long |
| 4-4. | 2418U128S5 | [4] | SCREW | KOBM16x2.0x50mm Long Superseded by part number: LQ30P01003S005 |
| 4-5. | 2418U162S3 | [2] | SCREW | KOBSet -- M16x2.0x28mm Long |
| 4-6. | ZP26D05010 | [8] | PIN | KOBRoll -- OD 05 x 10mm Long |
| 4-7. | 2418U224S7 | [1] | RUBBER INSULATOR | KOBPAD Superseded by part number: YB30P01001S001 |
| 5. | ZS23C16045 | [4] | CAP,Hex Socket Head, M16 x 45mm | KOBScrew -- M16x2.0x45mm |
| 6. | ZS13C10035 | [10] | SCREW | KOBM10x1.50x35mm Superseded by part number: ZS18C10035 |
| 7. | ZS13C10040 | [4] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 8. | ZW11K10000 | [6] | WASHER | KOBID 10 x OD 18 x Th 2.0mm |
| 9. | ZD12G05500 | [1] | O-RING,3.1mm Thk x 54.4mm ID, 90 Duro | KOBO -- ID 54.40 ± 0.49 x OD 60mm |
| 10. | 2437U543F1 | [1] | PUMP | KOBDozer (See Figure 12-024) |
| 11. | ZD12G08500 | [1] | O-RING,84.40mm ID x 90.60mm OD x 3.10mm | KOBID 84.40 ± 0.73 x OD 90mm |
| 12. | ZS13C10025 | [2] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 13. | 2418P30995 | [1] | SPACER | KOBID 120 x OD 350 x Th 24.1mm |
| 14. | YW02PU1001P1 | [8] | SCREW | KOB3/8inx16x39mm Long Grade 8 |
| 15. | YN02PU1006P1 | [8] | WASHER | KOBID 11.2 x OD 25.4 x Th 2.1mm |
| 16. | 2437U542F2 | [1] | PUMP | KOBSee Figure 12-023 |
