纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (1.083[00]) - HARNESS ASSEMBLY, CAB (YN14E00056F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
737 次

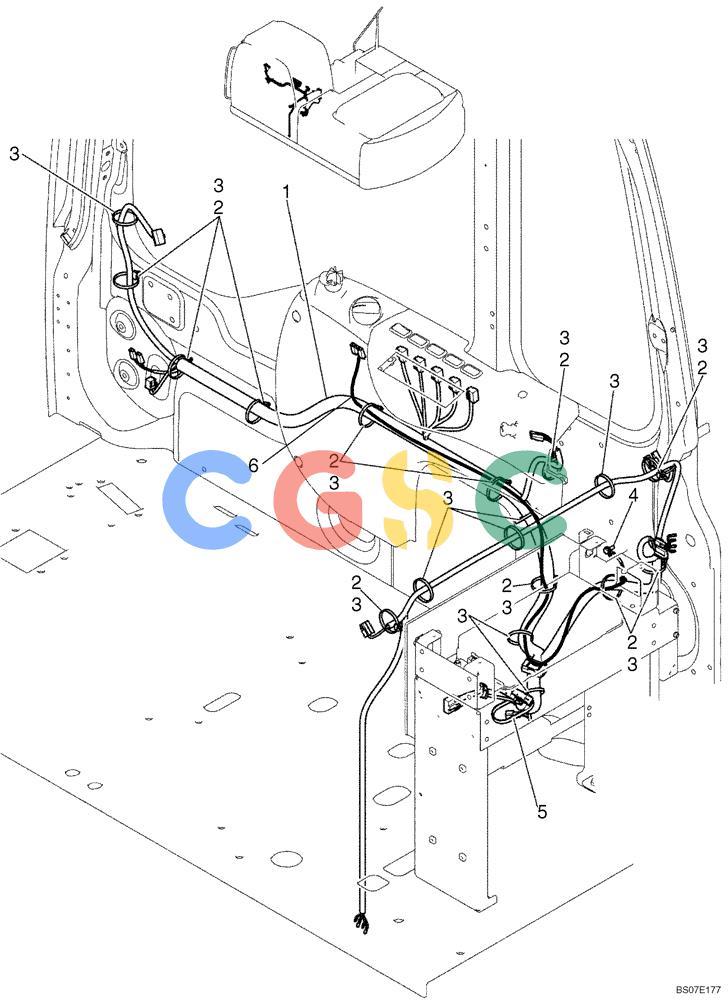

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN14E01100P3 | [1] | WIRE HARNESS | KOBUsed before date 01/07/2008 Superseded by part number: YN14E01100P4 |
| . . | YN14E01100P4 | [1] | WIRE HARNESS | KOBUsed after date 01/07/2008 |
| 2. | YN13E01375P1 | [11] | CLIP,M8 x 8.20mm Shank | KOBAnchor Wire Ties |
| 3. | PY01P01043D3 | [20] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 4. | ZM73C06016 | [1] | BOLT,M6x16mm - Course Thread | KOBM06x1.0x16mm (Incls. Washer) |
| 5. | PY01P01043D8 | [1] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long |
| 6. | YN14E01106P1 | [1] | HARNESS | KOBKey Switch, Used after date 03/26/2007 |
