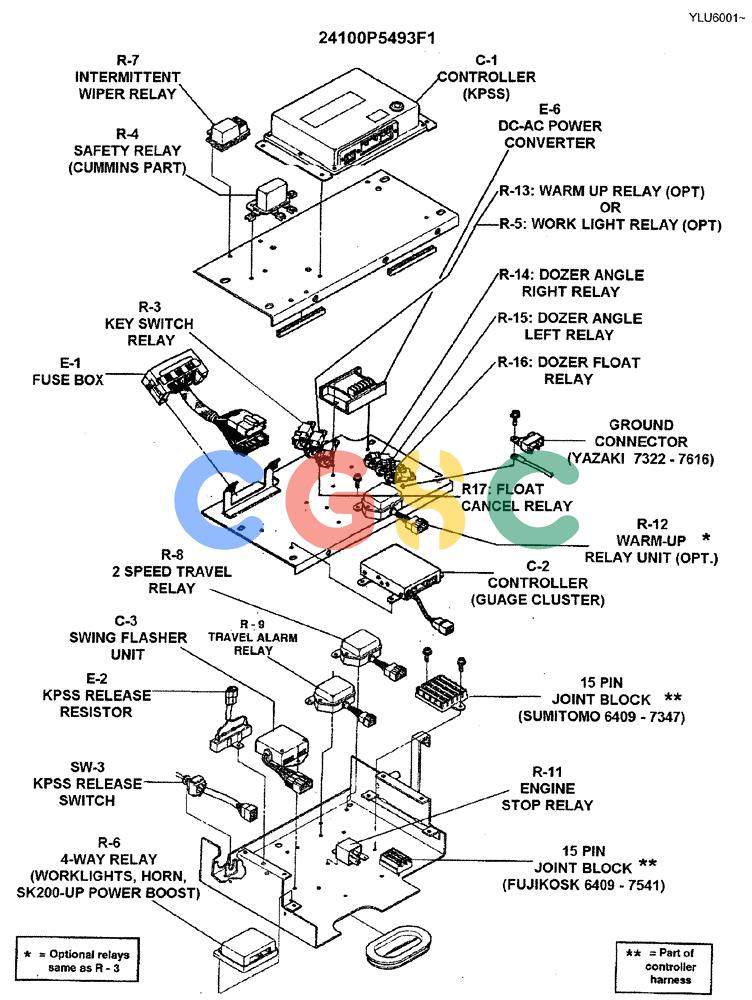

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (05-008[02]) - CONTROLLER INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
864 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P5493F1 | [1] | CONTROLLER INSTAL | |
| 1. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 2. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 3. | 3006300 | [1] | RELAY | KOB(YN24SU1001P1) (CUMMINS P/N) Superseded by part number: 84475895 |
| 4. | ZM66C06016 | [2] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 5. | 2480U411F1 | [1] | CONTROL | KOBK.P.S.S. Superseded by part number: YN22E00364F2 |
| 6. | ZM66C06012 | [4] | BOLT | KOBM06x1.0x12mm (Incls. Washer & Lockwasher) |
| 7. | 24100J20921F1 | [1] | CONTROLLER ASSY (SEE FIGURE 05-009) | |
