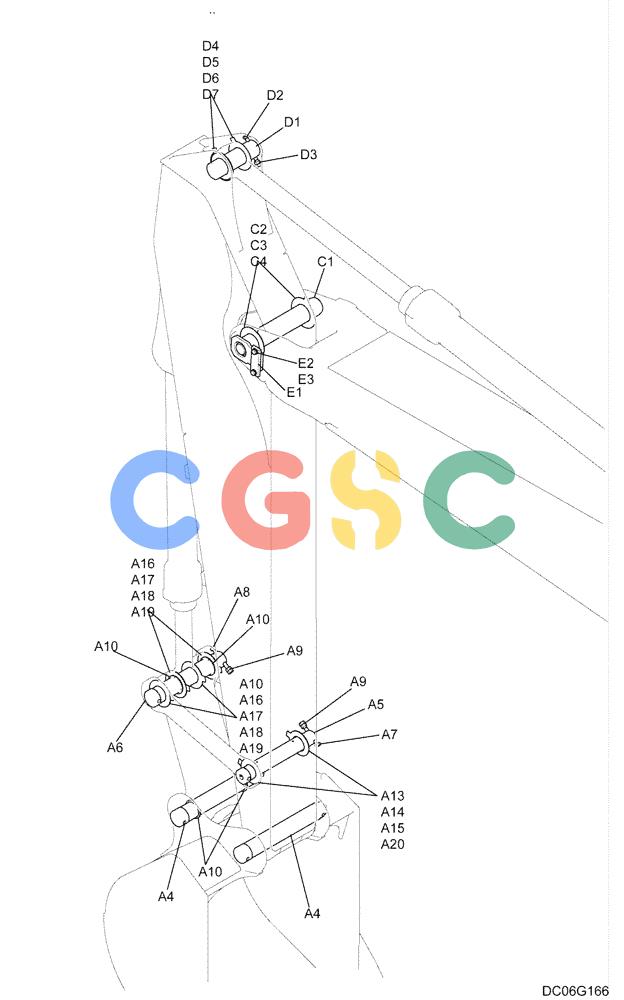

| A1. | YN12B02175F1 | [1] | LINK | KOBAssembly, Bucket Superseded by part number: YN12B11101F1 |
| A1-1. | YN12B02176F1 | [1] | Link, Bucket | |
| A1-2. | YN12B02221P1 | [4] | BUSHING,80mm ID x 95mm OD x 47mm L | KOBID 80 x OD 95 x 47mm Long |
| A1-3. | LC12B01499P1 | [2] | BUSHING,80mm ID x 95mm OD x 89mm L | KOBID 80 x OD 95 x 89mm Long |
| A2. | YN12B01227P1 | [1] | LINK | KOB Superseded by part number: YN12B11269P1 |
| A3. | YN12B01228P1 | [1] | LINK | KOB |
| A4. | YN12B02407P1 | [2] | PIN | KOB Superseded by part number: YN12B11170P1 |
| A5. | YN12B02408P1 | [1] | PIN | KOB |
| A6. | YN12B02412P1 | [1] | PIN | KOB |
| A7. | HS18C16130G2 | [1] | BOLT,Hex, M16 x 130mm, Cl 10.9 | KOBM16x2.0x130mm |
| A8. | HS18C16140G2 | [1] | SCREW,M16 x 140mm, Cl 10.9 | KOBM16x2.0x140mm |
| A9. | ZN18C16013 | [4] | NUT | KOBM16x2.0mm |
| A10. | 2445R220D4 | [6] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust -- ID 80 X OD 95 x Th 5mm |
| A11. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| A12. | ZG91S04000 | [1] | LUBE NIPPLE | KOB1/4" PT -- Straight |
| A13. | B16T0442D57 | [1] | SHIM,0.5mm Thk | KOB(M72 ID x 130 OD) |
| A14. | B16T0442D44 | [1] | SHIM,0.9mm Thk | KOB(M72 ID x 130 OD) |
| A15. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| A16. | YN12B01122D1 | [2] | SHIM,82mm ID x 140mm OD x 0.5mm Thk | KOBID 82 x OD 140 x Th 0.5mm |
| A17. | YN12B01122D2 | [2] | SHIM,82mm ID x 140mm OD x 0.9mm Thk | KOBID 82 x OD 140 x Th 0.9mm |
| A18. | YN12B01122D3 | [2] | SHIM,82mm ID x 140mm OD x 1.6mm Thk | KOBID 82 x OD 140 x Th 1.6mm |
| A19. | YN12B01601D1 | [4] | SHIM,82mm ID x 140mm OD x 2mm Thk | KOBID 82 x OD 140 x Th 2.0mm |
| A20. | YN12B01602D1 | [2] | SHIM,72mm ID x 130mm OD x 2mm Thk | KOBID 72 x OD 130 x Th 2.0mm |
| B1. | YN12B00821F1 | [1] | ARM | KOBArm Assembly |
| B3. | 2445R220D3 | [2] | SEAL,70mm ID x 85mm OD x 5mm Thk | KOBDust -- ID 70 x OD 85 x Th 5mm |
| B4. | 2445R138D8 | [2] | SEAL,90mm ID x 105mm OD x 4mm Thk | KOBDust -- ID 90 x OD 105 x Th 4mm |
| C1. | YN12B02094P1 | [1] | PIN | KOB Superseded by part number: YN12B02415P1 |
| C2. | YN02B01414D1 | [2] | SHIM,92mm ID x 160mm OD x 2mm Thk | KOBID 92 x OD 160 x Th 2.0mm |
| C3. | B16T0442D53 | [1] | SHIM,92mm ID x 160mm OD x 0.5mm Thk | KOBID 92 x OD 160 x Th 0.5mm |
| C4. | B16T0442D40 | [1] | SHIM,92mm ID x 160mm OD x 0.9mm Thk | KOBID 92 x OD 160 x Th 0.9mm |
| D1. | YN02B01722P1 | [1] | PIN,85mm OD x 277mm L | KOB |
| D2. | HS18C16150G2 | [1] | SCREW | KOBM16x2.0x150mm |
| D4. | YN02B01415D1 | [2] | SHIM,87mm ID x 150mm OD x 2mm Thk | KOBID 87 x OD 150 x Th 2.0mm |
| D5. | B16T0442D78 | [1] | SHIM,87mm ID x 140mm OD x 0.5mm Thk | KOBID 87 x OD 140 x Th 0.5mm |
| D6. | B16T0442D77 | [1] | SHIM,87mm ID x 140mm OD x 0.9mm Thk | KOBID 87 x OD 140 x Th 0.9mm |
| D7. | B16T0442D62 | [1] | SHIM,87mm ID x 140mm OD x 1.6mm Thk | KOBID 87 x OD 140 x Th 1.6mm |
