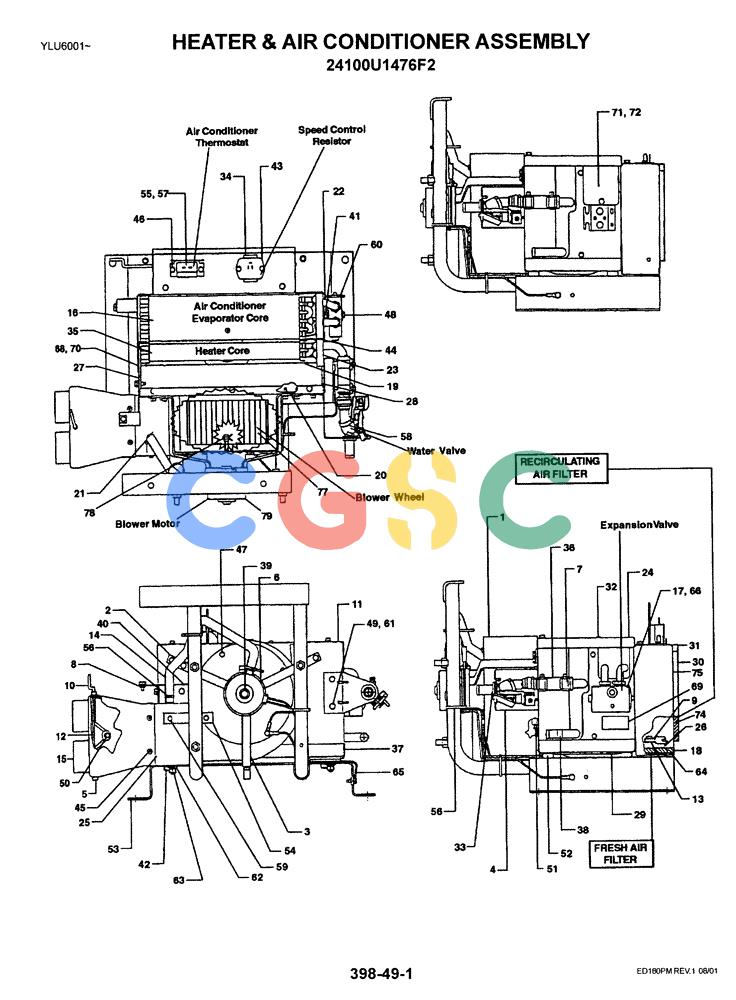

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (05-016) - HEATER & AIR CONDITIONER ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
665 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100U1476F2 | [1] | HEATER | KOB |
| 1. | 24100U1476S001 | [1] | FAN | KOBHOUSING,(W/BLOWER) |
| 2. | 24100U1476S002 | [2] | BRACKET | KOBMOTOR |
| 3. | 24100U1476S003 | [1] | BRACKET | KOBMOTOR |
| 4. | 24100U1476S004 | [1] | BRACKET ASSY (RD-3-7262-1P) (WATER VALVE MOUNT) | BRACKET ASSY (RD-3-7262-1P) (WATER VALVE MOUNT) |
| 5. | 24100U1476S005 | [1] | BUSHING, SNAP | |
| 6. | 24100U1476S006 | [1] | CLAMP | KOB |
| 7. | 24100U1476S007 | [2] | CLAMP | KOBHOSE |
| 8. | 24100U1476S008 | [2] | CLIP | KOB(CONDUIT) |
| 9. | 24100U1476S009 | [1] | ROD (FRESH AIR DOOR) | |
| 10. | 24100U1476S010 | [1] | ROD ASSY (DIFF. DOOR) | |
| 11. | 24100U1476S011 | [1] | COVER ASSY | |
| 12. | 24100U1476S012 | [1] | DOOR ASSY (DIFF. DOOR) | |
| 13. | 24100U1476S013 | [1] | DOOR ASSY (FRESH AIR) | |
| 14. | 24100U1476S014 | [1] | HOSE | KOBDRAIN |
| 15. | 24100U1476S015 | [1] | DUCT | KOBDUCT (PLENUM DIFFUSSER) |
| 16. | 24100U1476S016 | [1] | EVAPORATOR | KOB |
| 17. | 24100U1476S017 | [1] | VALVE | KOB(R-134A) |
| 18. | 24100U1476S018 | [1] | CAB FILTER | KOB(FRESH AIR) |
| 19. | 24100U1476S019 | [1] | GASKET (WATER BAFFLE) | |
| 20. | 24100U1476S020 | [1] | GASKET (BLOWER FACE) | |
| 21. | 24100U1476S021 | [1] | GASKET | KOB(BLOWER WRAP) |
| 22. | 24100U1476S022 | [1] | GASKET | KOB(CORE, EVAPORATOR) |
| 23. | 24100U1476S023 | [1] | GASKET (CORE, HEATER) | |
| 24. | 24100U1476S024 | [1] | GASKET (COVER) | |
| 25. | 24100U1476S025 | [1] | GASKET (DIFFUSER WRAP) | |
| 26. | 24100U1476S026 | [1] | GASKET (FRESH AIR DOOR) | |
| 27. | 24100U1476S027 | [2] | GASKET | KOB(EVAPORATOR & SIDE) |
| 28. | 24100U1476S028 | [1] | GASKET | KOBGASKET (HSG SIDE) |
| 29. | 24100U1476S029 | [1] | GASKET | KOBGASKET (PAN) |
| 30. | 24100U1476S030 | [2] | GASKET (RECIRC. SEAL, SIDES) | |
| 31. | 24100U1476S031 | [1] | GASKET (RECIRC. SEAL, TOP) | |
| 32. | 24100U1476S032 | [1] | GROMMET (RD-4199-0P) | GROMMET (RD-4199-0P) |
| 33. | 24100U1476S033 | [1] | GROMMET | KOB |
| 34. | 24100U1476S034 | [1] | GUARD, RESISTOR | |
| 35. | 24100U1476S035 | [1] | CORE | KOBHEATER |
| 36. | 24100U1476S036 | [1] | HOSE | KOBHEATER |
| 37. | 24100U1476S037 | [1] | HOUSING ASSY (INCLUDED IN #39) | |
| 38. | 24100U1476S038 | [1] | LABEL, INLET | |
| 39. | 24100U1476S039 | [1] | SMALL ELECTRIC MOTOR | KOBASSY (REF 37, 77, 78 & 79) |
| 40. | 24100U1476S040 | [1] | MOUNT ASSY | |
| 41. | 24100U1476S041 | [1] | NUT, CLIP | |
| 42. | 24100U1476S042 | [4] | NUT (M8) | |
| 43. | 24100U1476S043 | [1] | RESISTOR | KOBSPEED CONTROL |
| 44. | 24100U1476S044 | [1] | RETAINER, CORE & EVAPORATOR | |
| 45. | 24100U1476S045 | [8] | RIVET, POP (O.D.=3/16") | |
| 46. | 24100U1476S046 | [9] | RESISTOR | KOBCAPSCREW (M5) |
| 47. | 24100U1476S047 | [4] | CAPSCREW (M5) | |
| 48. | 24100U1476S048 | [1] | CAPSCREW (M6) | |
| 49. | 24100U1476S049 | [17] | CAPSCREW (M6) | |
| 50. | 24100U1476S050 | [2] | SCREW (1/4" x 20 DOG POINT) | |
| 51. | 24100U1476S051 | [4] | SCREW (10-32 HEX SEMS) | |
| 52. | 24100U1476S052 | [4] | SPACER | |
| 53. | 24100U1476S053 | [1] | SUPPORT ASSY (BASE UNIT) | |
| 54. | 24100U1476S054 | [1] | SUPPORT ASSY | |
| 55. | 24100U1476S055 | [1] | THERMOSTAT | KOB |
| 56. | 24100U1476S056 | [2] | WRAP, TIE (4") | |
| 57. | 24100U1476S057 | [3] | WRAP, TIE (8") | |
| 58. | 24100U1476S058 | [1] | VALVE | KOBWATER (CABLE OPERATED Superseded by part number: RD3-9191-0P |
| 59. | 24100U1476S059 | [2] | WASHER (#10) | |
| 60. | 24100U1476S060 | [1] | WASHER (1/4") | |
| 61. | 24100U1476S061 | [17] | WASHER (M6) | |
| 62. | 24100U1476S062 | [4] | WASHER (M8) | |
| 63. | 24100U1476S063 | [4] | WASHER (M8) | |
| 64. | 24100U1476S064 | [2] | WEATHER STRIPPING (.500"X.125') | |
| 65. | 24100U1476S065 | [1] | WIRE | KOBASSY |
| 66. | 24100U1476S066 | [2] | O-RING | KOB |
| 67. | 24100U1476S067 | [1] | TUBE | |
| 68. | 24100U1476S068 | [1] | LABEL (QUALITY AUDIT) | |
| 69. | 24100U1476S069 | [1] | LABEL (R-134A WARNING) | |
| 70. | 24100U1476S070 | [1] | LABEL (PARTS LIST) | |
| 73. | 24100U1476S073 | [1] | SEALANT | |
| 74. | 24100U1476S074 | [1] | FILTER | KOBRECIRCULATING |
| 75. | 24100U1476S075 | [1] | FRAME | KOB(RECIRCULATING FILTER) |
| 77. | 24100U1476S077 | [1] | BLOWER | KOBWHEEL (4") (INCLUDED IN #39) |
| 78. | 24100U1476S078 | [1] | HOSE CLAMP | KOBCLIP, BLOWER (INCLUDED IN #39) |
| 79. | 24100U1476S079 | [1] | MOTOR (24V) (INCLUDED IN #39) | |
