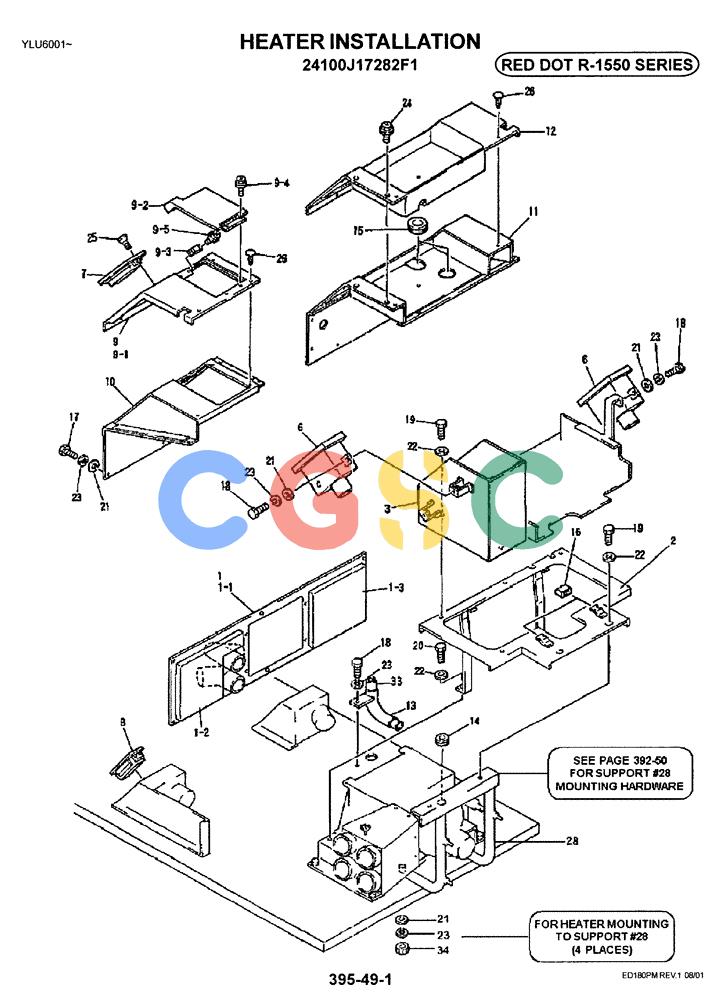

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (05-015) - HEATER INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
192 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J17282F1 | [1] | HEATER INSTAL. | |
| 1. | YN20MU1001F1 | [1] | DUCT | KOB |
| 1-1. | YN20MU1002P1 | [1] | DUCT | KOB |
| 1-2. | YN20MU1003P1 | [1] | FOAM INSULATION | KOB |
| 1-3. | YN20MU1004P1 | [1] | FOAM INSULATION | KOB |
| 2. | 2416N7082 | [1] | SUPPORT | KOB |
| 3. | 2414N5528 | [1] | BOX | KOB |
| 6. | 2427P4243 | [2] | DUCT | KOB |
| 7. | YN20M01055P1 | [2] | GRILLE | KOB |
| 8. | YN20M01011P1 | [2] | GRILLE | KOB |
| 9. | 24100T903F1 | [1] | COVER | KOBASSY |
| 9-1. | 2414N5529 | [1] | COVER | KOB |
| 9-2. | 2414P9654 | [1] | COVER | KOB |
| 9-3. | 2406Z628 | [1] | LATCH | KOB |
| 9-4. | 2420R1092D2 | [2] | SCREW,M5 x 16mm | KOBM05x0.8x16mm (Incls. Washer & Lockwasher) Superseded by part number: ZM46C05016 |
| 9-5. | 2420R605D2 | [2] | SCREW,M3 x 10mm | KOBM03x0.5x10mm (Incls. Washer & Lockwasher) |
| 10. | 2414J3155 | [1] | COVER | KOB |
| 11. | 2414J3154 | [1] | COVER | KOB Superseded by part number: 2414J3246 |
| 12. | 2414J3038 | [1] | COVER | KOB |
| 13. | 2429P1242 | [1] | GUIDE | KOB |
| 14. | PY03M01053P1 | [1] | GROMMET | KOB |
| 15. | 2420R429D11 | [2] | GROMMET | KOB |
| 16. | 2427Z1818 | [2] | RUBBER SLEEVE | KOB |
| 17. | ZS18C08016 | [8] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 18. | ZS18C08020 | [5] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 19. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 21. | ZW16X08000 | [16] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 22. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 23. | ZW26X08000 | [17] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 24. | 2420R1090D1 | [6] | SCREW,M6 x 10mm | KOBM06x1.0x10mm (Incls. Washer & Lockwasher) |
| 25. | YN17M01033D2 | [4] | SCREW | KOBM05x14mm |
| 26. | 2420R584 | [13] | FASTENER | KOB |
| 28. | 2416N7467 | [1] | SUPPORT | KOB |
| 33. | 2414Z199D025 | [1] | PROTECTIVE SLEEVE | KOBHose -- 250mm Long (9-27/32 in) |
| 34. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
