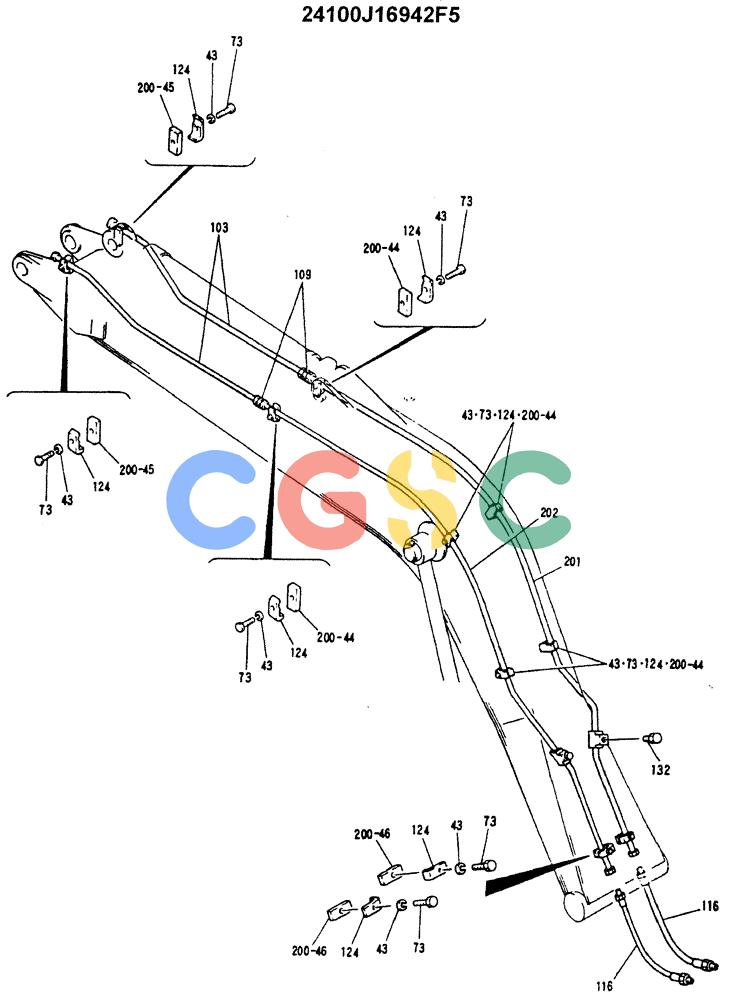

| . . | 24100J16942F5 | [1] | BOOM ASSY 5.15M (AUXILIARY) | |
| 2. | 2438U1946F1 | [1] | CYLINDER | KOB |
| 3. | 2438U1947F1 | [1] | BUCKET CYLINDER | KOB Superseded by part number: 2438U1946F1 |
| 4. | 2438U1948F1 | [1] | CYLINDER | KOB |
| 5. | 2418P29837 | [1] | RIGID TUBE | KOB |
| 6. | 2418P29600 | [1] | RIGID TUBE | KOB |
| 7. | 2418P29601 | [1] | RIGID TUBE | KOB |
| 8. | 2418P29623 | [1] | RIGID TUBE | KOB |
| 9. | 2418P29624 | [1] | RIGID TUBE | KOB |
| 11. | 2418P31928D2 | [1] | TUBE | KOB |
| 12. | 2418P31928D1 | [1] | TUBE | KOB |
| 13. | 2418P31927D2 | [1] | TUBE | KOB |
| 14. | 2418P31927D1 | [1] | TUBE | KOB |
| 15. | 2444R1177D1 | [1] | FLEXIBLE HOSE | KOB800mm Long (31-1/2 in) |
| 16. | 2444R1169D6 | [2] | HOSE | KOB870mm Long (34-1/4 in) |
| 17. | 2444R1169D5 | [4] | HOSE | KOB750mm Long (29-1/2 in) |
| 18. | HX21E04282DY | [1] | FLEXIBLE HOSE,6.30mm ID x 2820mm L | KOB(PF 1/4, L=2820mm) |
| 19. | HX21E04214DY | [1] | FLEXIBLE HOSE,6.30mm ID x 2140mm L | KOB(PF 1/4, L=2140mm) |
| 20. | HX21E04073DY | [1] | FLEXIBLE HOSE,6.30mm ID x 730mm L | KOB(PF1/4, L=730mm) |
| 21. | ZH22Z04000 | [3] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 22. | HX21E04223DY | [1] | FLEXIBLE HOSE,6.30mm ID x 2230mm L | KOB(PF 1/4, L=2230mm) |
| 23. | ZG91S02000 | [9] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 24. | 2432T2242 | [2] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| 25. | 2432T2244 | [3] | CLAMP | KOBDouble -- 102x32x12mm (Ø23xØ23mm) |
| 26. | ZC26X22011 | [4] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 27. | 2432T1187 | [1] | CLAMP | KOB Superseded by part number: YN43H01097P1 |
| 29. | ZS13C10040 | [1] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 30. | ZS13C10045 | [4] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 31. | ZS13C10050 | [2] | SCREW | KOBM10x1.50x50mm Superseded by part number: ZS18C10050 |
| 32. | ZS13C10060 | [16] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 33. | ZS13C10070 | [4] | SCREW | KOBM10x1.50x70mm Superseded by part number: ZS18C10070 |
| 34. | ZS13C12025 | [2] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 35. | ZS13C14030 | [2] | SCREW | KOBM14x2.0x30mm Superseded by part number: ZS18C14030 |
| 36. | ZS13C12045 | [2] | SCREW | KOBM12x1.75x45mm Superseded by part number: ZS18C12045 |
| 37. | 2420T4330D10 | [1] | SCREW,M16 x 2 x 140mm | KOBM16x2.0x140mm Superseded by part number: ZS18C16140 |
| 38. | 2420T4330D13 | [2] | SCREW,M16 x 2 x 145mm | KOBM16x2.0x145mm |
| 39. | ZN13C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 40. | ZS13C10055 | [1] | SCREW | KOBM10x1.50x55mm Superseded by part number: ZS18C10055 |
| 41. | ZN13C16013 | [6] | NUT | KOBM16x2.0mm |
| 42. | ZW22X10000 | [35] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 43. | ZW22X12000 | [17] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 44. | ZD12P02600 | [6] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 45. | 2419T7416 | [1] | PIN | KOB Superseded by part number: 2419T7676 |
| 46. | 2419P4111D1 | [1] | PIN | KOB |
| 47. | 2419P3909 | [2] | PIN | KOB |
| 48. | 2419T7690 | [1] | PIN | KOB |
| 49. | 2419P4046D3 | [1] | PIN | KOB |
| 51. | 2418T12645D2 | [1] | PLATE | KOB125 x 261 x Th 9.0mm |
| 52. | 2445R138D7 | [2] | SEAL,80mm ID x 95mm OD x 4mm Thk | KOBDust -- ID 80 x OD 95 x Th 4mm |
| 53. | ZW22X14000 | [2] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 54. | ZW22X16000 | [1] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 56. | B16T0442D39 | [2] | SHIM,82mm ID x 150mm OD x 0.9mm Thk | KOBID 82 x OD 150 x Th 0.9mm |
| 57. | B16T0442D3 | [2] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOBID 82 x OD 150 x Th 1.2mm |
| 58. | B16T0442D4 | [2] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 59. | B16T0442D6 | [2] | SHIM,150mm OD x 82mm ID x 2.3mm Thk | KOBID 82 x OD 150 x Th 2.3mm |
| 60. | 2418T25590 | [2] | COLLAR CLAMP | KOB |
| 61. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 62. | B16T0442D11 | [2] | SHIM,140mm OD x 77mm ID x 1.6mm Thk | KOBID 77 x OD 140 x Th 1.6mm |
| 63. | B16T0442D12 | [2] | SHIM,140mm OD x 77mm ID x 2.3mm Thk | KOBID 77 x OD 140 x Th 2.3mm |
| 64. | B16T0442D58 | [2] | SHIM,140mm OD x 77mm ID x 0.5mm Thk | KOBID 77 x OD 140 x Th 0.5mm |
| 66. | B16T0442D10 | [2] | SHIM,140mm OD x 77mm ID x 1.2mm Thk | KOBID 77 x OD 140 x Th 1.2mm |
| 67. | 2418P29786 | [1] | RIGID TUBE | KOB |
| 68. | ZA23B22000 | [2] | HYD CONNECTOR | KOBM30x1.50x38mm Long |
| 69. | 2418T17550 | [2] | PLATE | KOBID 18 x OD 60 x Th 06mm |
| 70. | ZS13C16025 | [2] | CAPSCREW M16x2.0x25mm | CAPSCREW M16x2.0x25mm |
| 71. | 2418T12469 | [1] | PLATE | KOB150 x 50 x Th 12mm, 2-Ø16 Holes |
| 72. | 2432T2434 | [1] | CLAMP | KOBDouble Line -- 129x38x15mm (Ø29xØ36mm) |
| 73. | ZS13C12055 | [11] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 74. | 2444R1171D2 | [1] | HOSE | KOB870mm Long (34-1/4 in) |
| 75. | 2444Z2519D10 | [1] | FLEXIBLE HOSE | KOB(L=940mm) |
| 76. | 2418P29787 | [1] | RIGID TUBE | KOB |
| 78. | 2444R2588D1 | [1] | FLEXIBLE HOSE | KOB(L=934mm) |
| 79. | 2432T5873 | [2] | CLAMP | KOB |
| 80. | ZE13X12000 | [2] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 81. | ZS23C10035 | [4] | SCREW,Hex Socket Head, M10 x 35mm | KOBM10x1.50x35mm |
| 82. | ZW22K10000 | [4] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 83. | ZS13C12065 | [2] | SCREW | KOB(M12X65mm) Superseded by part number: ZS18C12065 |
| 84. | 2416T13218 | [2] | U-BRACKET | KOB |
| 85. | 2414P4100D1 | [1] | COVER | KOB |
| 86. | 2414P4100D2 | [1] | COVER | KOB |
| 87. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 88. | ZS18C10020 | [4] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 89. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 90. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 92. | LP02B01056D1 | [2] | SHIM,0.5mm Thk | KOB0.5 |
| 93. | LP02B01056D2 | [2] | SHIM,0.9mm Thk | KOB0.9 |
| 94. | LP02B01056D3 | [2] | SHIM,1.2mm Thk | KOB1.2 |
| 95. | LP02B01056D4 | [2] | SHIM,1.6mm Thk | KOB1.6 |
| 99. | HX21E04078DY | [1] | FLEXIBLE HOSE,6.30mm ID x 780mm L | KOB(PF 1/4, L=780mm) |
| 103. | 2418T25621 | [2] | TUBE | KOB |
| 109. | ZA23B28000 | [2] | CONNECTION | KOBM36x1.50x43mm Long |
| 116. | 2444R1097D5 | [2] | FLEXIBLE HOSE | KOB(L= 750) |
| 124. | ZC26X28014 | [10] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 132. | 2420Z985 | [2] | PLUG | KOB |
| 200. | 2411J5089D3F1 | [1] | BOOM, HOE | BOOM, HOE |
| 200-41. | 2405T1889 | [2] | BUSHING | KOB |
| 200-44. | 2416T12924D2 | [6] | BLOCK | KOB |
| 200-45. | 2416T13009 | [2] | BLOCK | KOB |
| 200-46. | 2416T23436D2 | [2] | BLOCK | KOB |
| 201. | 2418P29632 | [1] | TUBE | KOB |
| 202. | 2418P30402 | [1] | TUBE | KOBTUBE |
