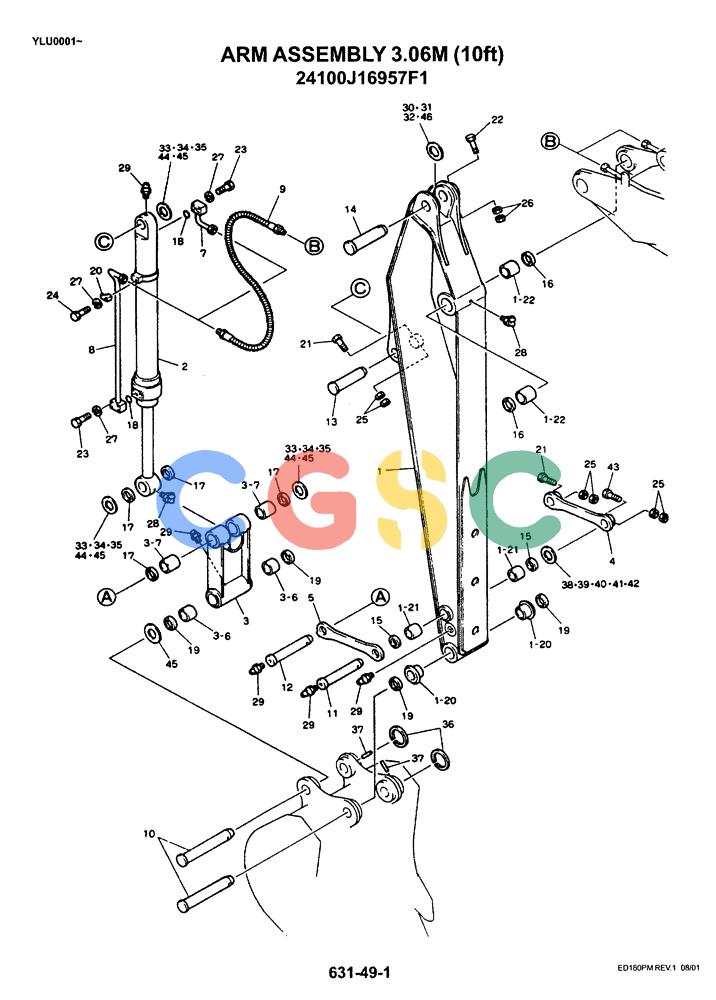

| . . | 24100J16957F1 | [1] | ARM ASSY, 3.06M | |
| 1. | 2411J5093D1F1 | [1] | ARM | KOB |
| 1-20. | 2405P726 | [2] | BUSHING | KOB |
| 1-21. | 2405T1887 | [2] | BUSHING | KOB |
| 1-22. | 2405T1888 | [2] | BUSHING | KOB |
| 2. | 2438U1949F1 | [1] | CYLINDER | KOBBUCKET |
| 3. | 2406N1736F1 | [1] | LINK CONROD | KOB |
| 3-6. | 2405T1885 | [2] | BUSHING | KOB |
| 3-7. | 2405P725 | [2] | BUSHING | KOB |
| 4. | 2406P5564 | [1] | LINK | KOBRH |
| 5. | 2406P5565 | [1] | LINK | KOBLH |
| 7. | 2418P10046D2 | [1] | RIGID TUBE | KOB145mm Long (5-45/64 in) |
| 8. | 2418P31929 | [1] | TUBE | KOB |
| 9. | 2444R1169D11 | [2] | HOSE | KOB(1750mm Long (68-57/64 in)) (w/ Guard) |
| 10. | 2419P4116 | [2] | PIN | KOB |
| 11. | 2419P4115 | [1] | PIN | KOB |
| 12. | 2419P4114 | [1] | PIN | KOB |
| 13. | 2419P4113 | [1] | PIN | KOB |
| 14. | 2419P4046D3 | [1] | PIN | KOB |
| 15. | 2445R138D4 | [2] | SEAL,65mm ID x 80mm OD x 4mm Thk | KOB |
| 16. | 2445R138D7 | [2] | SEAL,80mm ID x 95mm OD x 4mm Thk | KOBDust -- ID 80 x OD 95 x Th 4mm |
| 17. | 2445R138D6 | [4] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm |
| 18. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 19. | 2445R220D3 | [4] | SEAL,70mm ID x 85mm OD x 5mm Thk | KOBDust -- ID 70 x OD 85 x Th 5mm |
| 20. | 2432T1333 | [1] | CLAMP | KOBSingle Block -- 50x30x25mm Superseded by part number: YW43H01049P1 |
| 21. | 2420T4327D7 | [2] | SCREW,M14 x 2 x 130mm | KOB(M14 x 130mm) |
| 22. | 2420T4330D10 | [1] | SCREW,M16 x 2 x 140mm | KOBM16x2.0x140mm Superseded by part number: ZS18C16140 |
| 23. | ZS13C10060 | [8] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 24. | ZS13C10050 | [1] | SCREW | KOBM10x1.50x50mm Superseded by part number: ZS18C10050 |
| 25. | ZN13C14011 | [6] | NUT | KOBM14x2.0mm Superseded by part number: ZN18C14011 |
| 26. | ZN13C16013 | [2] | NUT | KOBM16x2.0mm |
| 27. | ZW22X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 28. | ZG91U02000 | [2] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 29. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 30. | B16T0442D3 | [1] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOBID 82 x OD 150 x Th 1.2mm |
| 31. | B16T0442D4 | [1] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 32. | B16T0442D6 | [1] | SHIM,150mm OD x 82mm ID x 2.3mm Thk | KOBID 82 x OD 150 x Th 2.3mm |
| 33. | B16T0442D1 | [3] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| 34. | B16T0442D2 | [3] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 35. | B16T0442D5 | [3] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOBID 72 x OD 130 x Th 2.3mm |
| 36. | 2418T23987D2 | [2] | RING | KOBRetaining -- ID 105 ± 1.0 x OD 110 x Th 12mm |
| 37. | 2419T6002D6 | [2] | PIN,16mm OD x 102mm L | KOBOD 16 x 102mm Long |
| 38. | 2418T4037D2 | [1] | SHIM,67mm ID x 110mm OD x 1.2mm thk | KOBID 67x OD 110 x Th 1.2mm |
| 39. | 2418T4037D5 | [1] | SHIM,67mm ID x 110mm OD x 1.6mm thk | KOBID 67x OD 110 x Th 1.6mm |
| 40. | 2418T4037D1 | [1] | SHIM,67mm ID x 110mm OD x 2.3mm thk | KOBID 67x OD 110 x Th 2.3mm |
| 41. | 2418T4037D3 | [1] | SHIM,67mm ID x 110mm OD x 0.9mm Thk | KOBID 67x OD 110 x Th 0.9mm |
| 42. | B16T0442D88 | [1] | SHIM,100mm OD x 67mm ID x 0.5mm Thk | KOBID 67 x OD 100 x Th 0.5mm |
| 43. | 2420T4327D5 | [1] | SCREW,M14 x 2 x 115mm | KOB(M14 x 115mm) |
| 44. | B16T0442D44 | [4] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOBID 72 x OD 130 x Th 0.9mm |
| 45. | B16T0442D57 | [4] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOBID 72 x OD 130 x Th 0.5mm |
| 46. | B16T0442D39 | [1] | SHIM,82mm ID x 150mm OD x 0.9mm Thk | KOBID 82 x OD 150 x Th 0.9mm |
