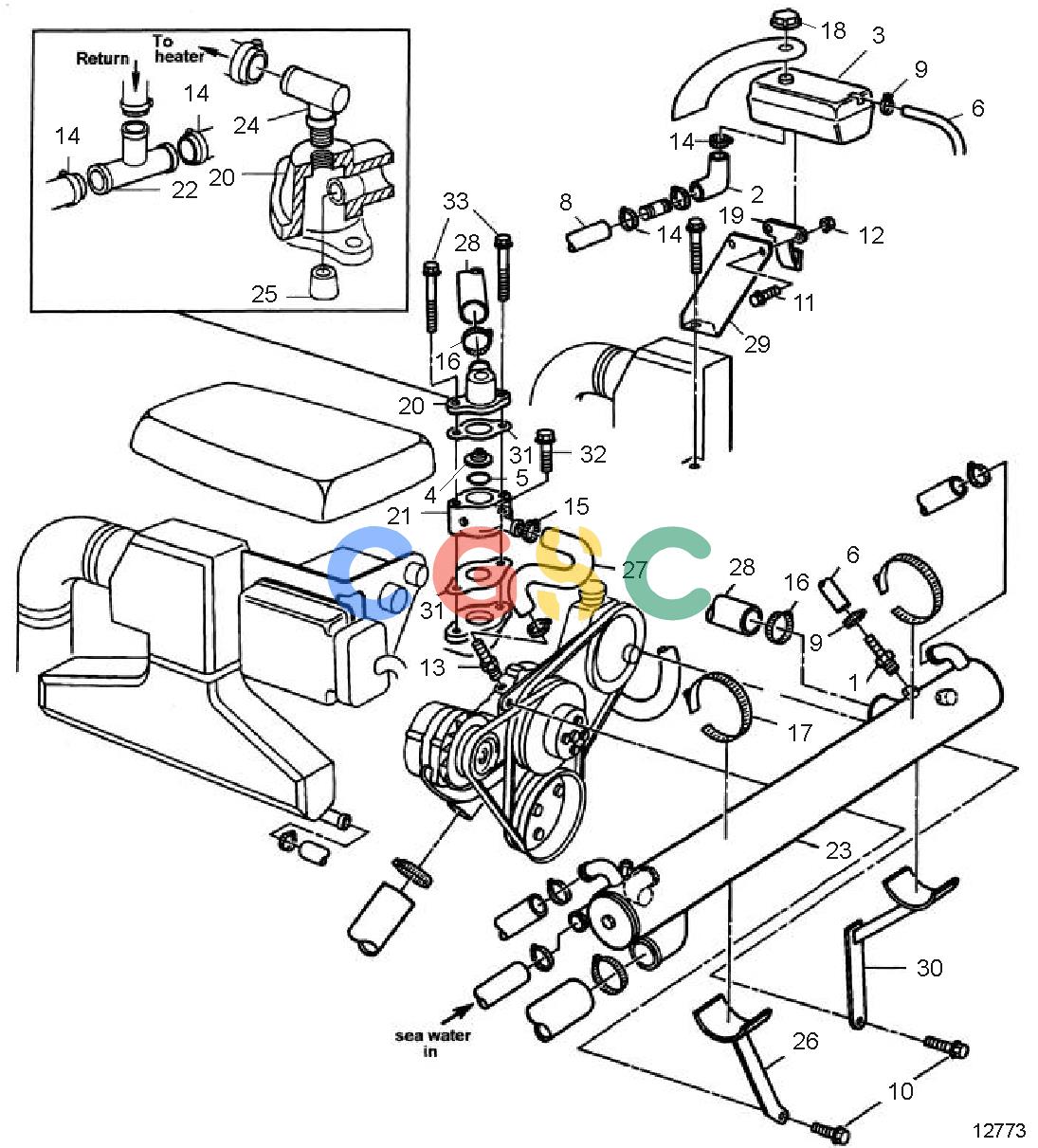

沃尔沃零件查询5.0FLPMDA; 5.8FLPMDACooling SystemFreshwater CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
192 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3851789
|
[1] |
Heat exchanger
|
5.0 FL, Fi 15.8 FL, Fi, FSi
|
| 1. |
180254
|
[1] |
Elbow nipple
|
|
| 2. |
857500
|
[1] |
Hose
|
|
| 3. |
861105
|
[1] |
Expansion tank
|
|
| 4. |
875788
|
[1] |
Thermostat kit
|
|
| 5. |
416033
|
[1] |
Sealing ring
|
|
| 6. |
942700
|
[1] |
Hose
|
|
| 7. |
943367
|
[1] |
Rubber hose
|
L=250mm, Not shown
|
| 8. |
943369
|
[1] |
Rubber hose
|
L=15000mm
|
| 9. |
945652
|
[2] |
Hose clamp
|
|
| 10. |
945767
|
[2] |
Flange screw
|
|
| 11. |
946173
|
[2] |
Flange screw
|
|
| 12. |
948645
|
[2] |
Flange lock nut
|
|
| 13. |
961659
|
[1] |
Hose nipple
|
|
| 14. |
961666
|
[12] |
Hose clamp
|
|
| 15. |
961667
|
[2] |
Hose clamp
|
|
| 16. |
961670
|
[2] |
Hose clamp
|
|
| 17. |
961674
|
[2] |
Hose clamp
|
|
| 18. |
1357775
|
[1] |
Pressure cap
|
|
| 19. |
3851363
|
[1] |
Bracket
|
|
| 20. |
3851383
|
[1] |
Thermostat housing
|
|
| 20. |
968147
|
[1] |
Plug
|
|
| 21. |
3851384
|
[1] |
Thermostat housing
|
|
| 21. |
479977
|
[1] |
Plug
|
|
| 21. |
968145
|
[1] |
Plug
|
|
| 22. |
3851414
|
[1] |
Connection pipe
|
|
| 23. |
3851617
|
[1] |
Heat exchanger
|
|
| 23. |
192134
|
[1] |
Plug
|
|
| 23. |
841068
|
[2] |
Bolt
|
|
| 23. |
3851618
|
[2] |
Cover
|
|
| 23. |
3851619
|
[2] |
Gasket
|
|
| 23. |
3851598
|
[1] |
Fitting
|
Not shown
|
| 24. |
961611
|
[1] |
Hose nipple
|
|
| 25. |
3851385
|
[1] |
Plug
|
|
| 26. |
3851682
|
[1] |
Bracket
|
|
| 27. |
3851760
|
[1] |
Hose
|
|
| 28. |
3851761
|
[1] |
Hose
|
|
| 29. |
3851772
|
[1] |
Bracket
|
|
| 30. |
3851771
|
[1] |
Bracket, Fi
|
|
| 30. |
3851934
|
[1] |
Bracket, fl
|
|
| 31. |
3852111
|
[2] |
Gasket
|
|
| 32. |
3853391
|
[1] |
Flange screw
|
|
| 33. |
3853401
|
[2] |
Flange screw
|
|
| 33. |
961663
|
[2] |
Hose clamp
|
See no. 20, FWC installation instructions (pin 7736035)
|
| 33. |
961669
|
[1] |
Hose clamp
|
See no. 20, FWC installation instructions (pin 7736035)
|
| 33. |
3853598
|
[1] |
Elbow
|
See no. 20, FWC installation instructions (pin 7736035)
|
