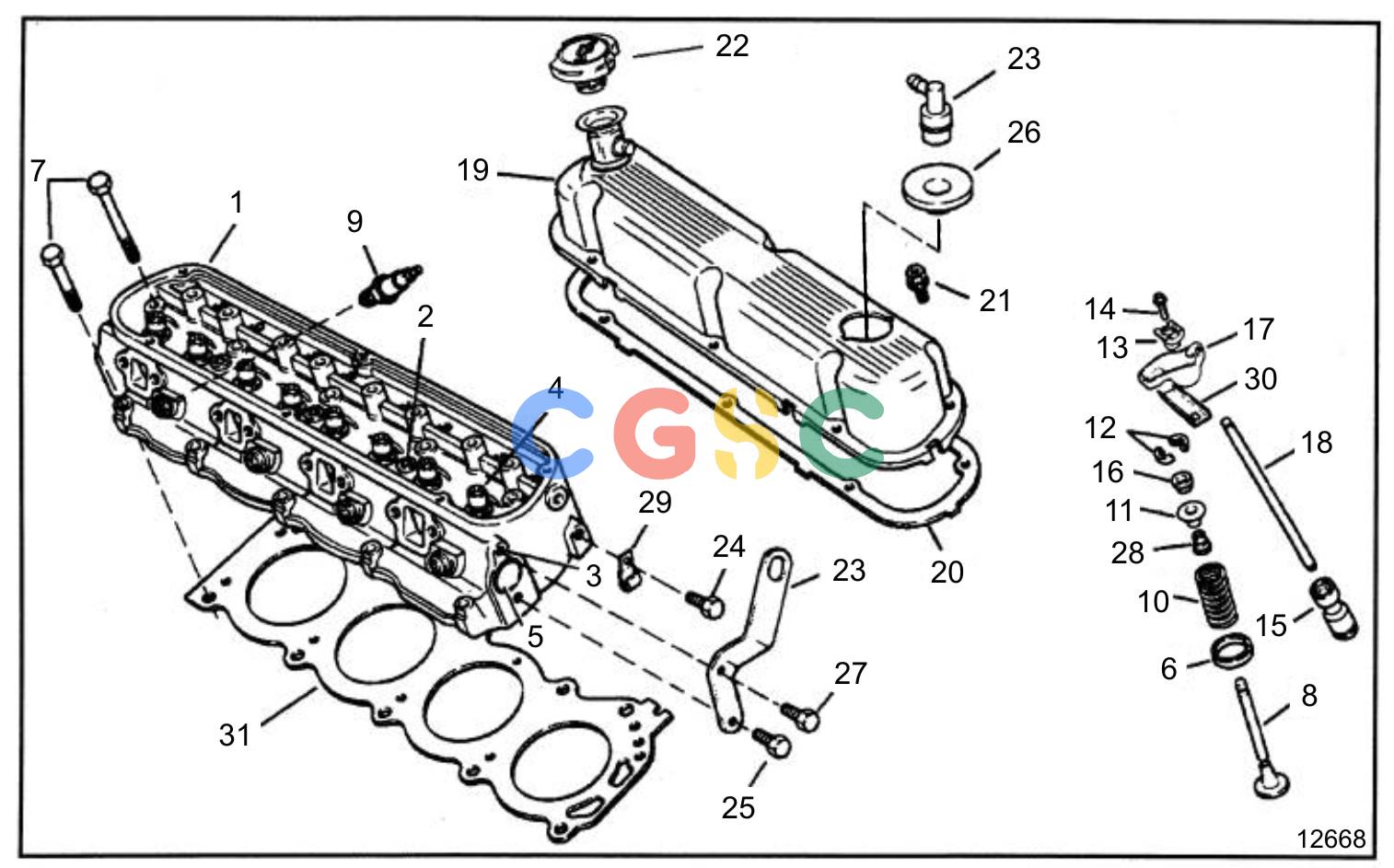

| 1. |
3853895
|
[2] |
Head
|
|
| 2. |
3853015
|
[3] |
Expansion plug, core hole
|
|
| 3. |
3853016
|
[2] |
Insert, thermactor hole
|
|
| 4. |
3853017
|
[8] |
Bushing, Valve guide
|
|
| 5. |
3852650
|
[2] |
Cap plug, core hole
|
|
| 6. |
3853030
|
[8] |
Insert, exhaust valve seat
|
|
| 7. |
3852771
|
[10] |
Bolt, cylinder head, 2-5/16 in
|
|
| 7. |
3852772
|
[10] |
Bolt, cylinder head, 3-15/16 in
|
|
| 8. |
3852807
|
[8] |
Valve, exhaust, standard
|
|
| 8. |
3852808
|
[8] |
Valve, intake, standard
|
|
| 8. |
3853027
|
[1] |
Valve, exhaust, 0.015 in. os
|
|
| 8. |
3853028
|
[1] |
Valve, intake, 0.015 in. os
|
|
| 8. |
3853029
|
[1] |
Valve, intake, 0.030 in. os
|
|
| 9. |
3851861
|
[2] |
Spark plug kit
|
|
| 10. |
3852809
|
[8] |
Spring, valve, exhaust
|
|
| 10. |
3852810
|
[8] |
Spring, intake valve
|
|
| 11. |
3852811
|
[8] |
Retainer, exhaust
|
|
| 11. |
3854303
|
[8] |
Retainer, spring, intake
|
|
| 12. |
3852672
|
[32] |
Valve cotter, valve spring retainer
|
|
| 13. |
3852671
|
[16] |
Spring seat, valve rocker arm fulcrum
|
|
| 14. |
3852814
|
[16] |
Bolt, rocker arm
|
|
| 15. |
3853847
|
[16] |
Tappet
|
|
| 16. |
3852813
|
[8] |
Sleeve, valve, spring retainer, intake
|
|
| 17. |
3852815
|
[16] |
Arm
|
|
| 18. |
3852816
|
[16] |
Push rod, valve
|
|
| 19. |
3853906
|
[1] |
Valve cover, rocker arm, starboard
|
|
| 19. |
3853907
|
[1] |
Valve cover, rocker arm, port
|
|
| 20. |
3852818
|
[2] |
Gasket, valve cover
|
|
| 21. |
3853037
|
[12] |
Screw, valve cover
|
|
| 22. |
3852707
|
[1] |
Oil filler cap
|
|
| 23. |
3852705
|
[1] |
Bracket, rear, port
|
|
| 24. |
3853419
|
[1] |
Flange screw, clamp, stbd cylinder head
|
Front
|
| 25. |
3853557
|
[2] |
Flange screw, lift bracket to lower engine
|
Front & rear
|
| 26. |
3852821
|
[1] |
Grommet, pcv valve
|
|
| 27. |
3853389
|
[2] |
Flange screw, lift bracket to upper engine
|
Front & rear
|
| 28. |
3852670
|
[8] |
Valve stem seal, valve stem, intake
|
|
| 28. |
3853031
|
[1] |
Valve stem seal, exhaust, 0.015 in. os
|
|
| 28. |
3853109
|
[1] |
Valve stem seal, intake, 0.015 in. os
|
|
| 28. |
3853110
|
[1] |
Valve stem seal, intake, 0.030 in. os
|
|
| 29. |
3852146
|
[1] |
Clamp, oil press sender lead to cyl head
|
Front
|
| 30. |
3852819
|
[8] |
Guide, rocker arm
|
|
| 31. |
3853732
|
[2] |
Cylinder head gasket, cylinder head
|
|
| 32. |
3852820
|
[1] |
Valve, PCV
|
|
