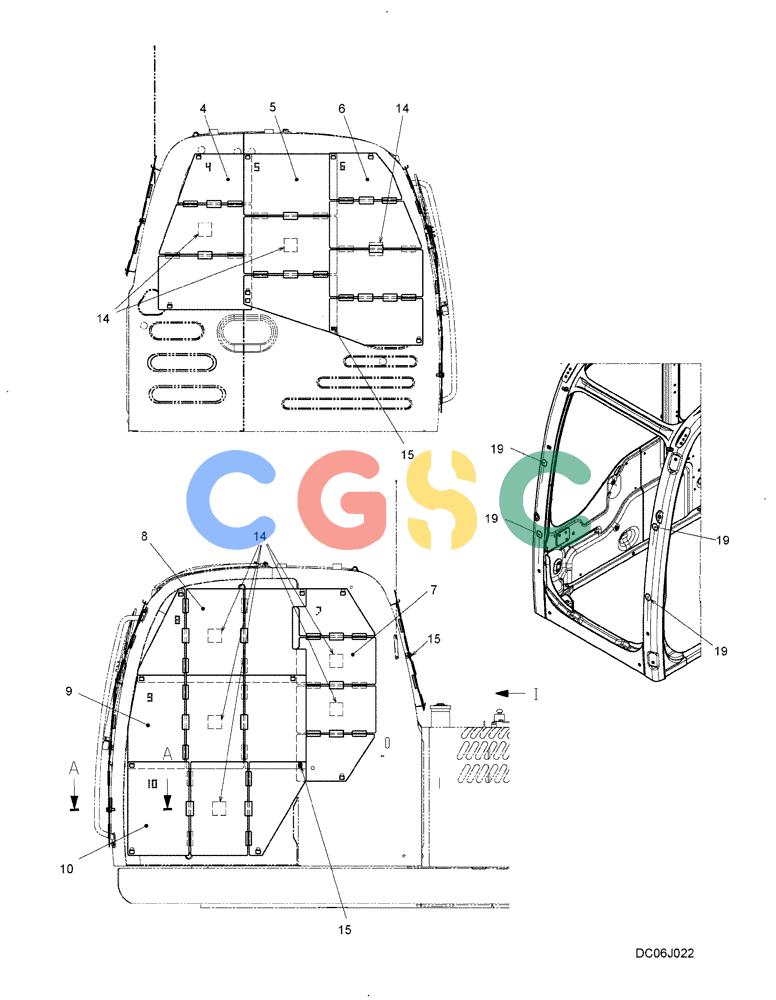

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (6.009[00]) - VANDALISM GUARD (YN25C00008F1), FIGURE 1 OF 2 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
857 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN25C01034P1 | [1] | GUARD | KOB |
| 2. | YN25C01035P1 | [1] | GUARD | KOB |
| 3. | YN25C01036P1 | [1] | GUARD | KOB |
| 4. | YN25C01007P2 | [1] | GUARD | KOB |
| 5. | YN25C01008P2 | [1] | GUARD | KOB |
| 6. | YN25C01009P2 | [1] | GUARD | KOB |
| 7. | YN25C01006P1 | [1] | GUARD | KOB |
| 8. | YN25C01005P1 | [1] | GUARD | KOB |
| 9. | YN25C01004P1 | [1] | GUARD | KOB |
| 10. | YN25C01003P1 | [1] | GUARD | KOB |
| 11. | YN25C01002P1 | [1] | GUARD | KOB |
| 12. | YN25C01001P1 | [1] | GUARD | KOB |
| 13. | YN25C01029P1 | [1] | Spacer | |
| 14. | YN25C01014P1 | [14] | PLATE | KOB |
| 15. | ZM73C08016 | [3] | BOLT,M8x16mm - Course Thread | KOBM08x1.25x16mm (Incls. Washer) |
| 16. | ZM73C12035 | [2] | BOLT,M12x35mm - Course Thread | KOBM12x1.75x35mm (Incls. Washer) |
| 17. | YN21C03336F1 | [1] | Box | |
| 18. | ZM73C08025 | [4] | BOLT,M8x25mm - Course Thread | KOBM08x1.25x25mm (Incls. Washer) |
| 19. | YT02C01567D3 | [4] | PLATE | KOB |
