纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (6.011[00]) - IDLER ASSEMBLY (HIGH & WIDE) (LQ52D00024F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
419 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

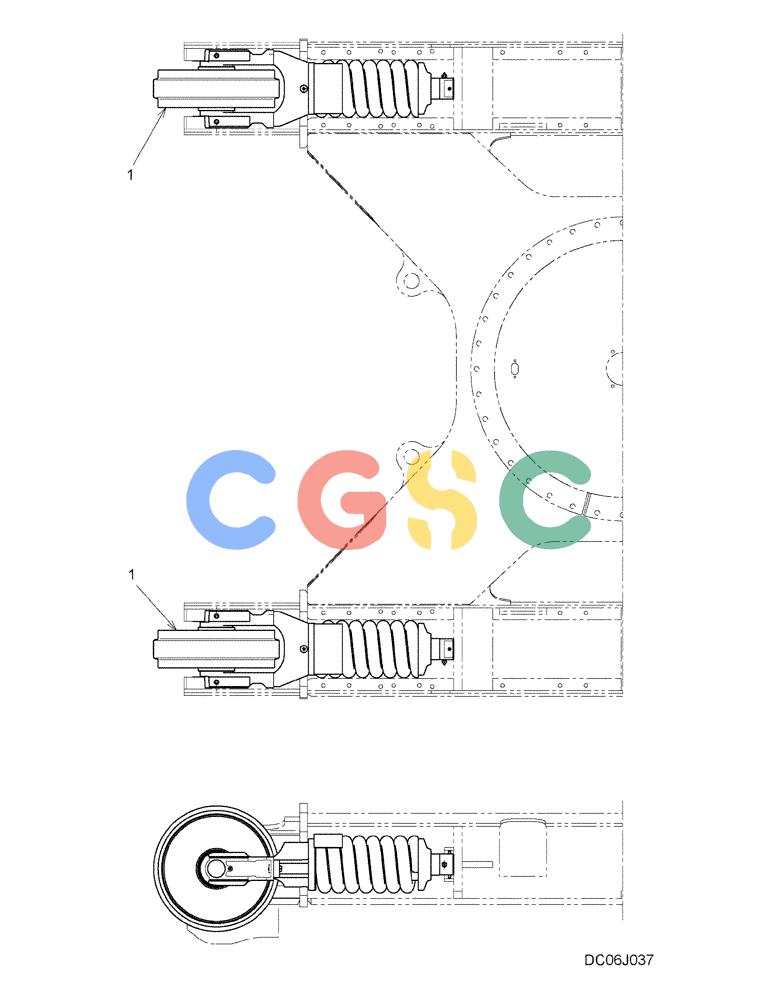

| 1. | LQ52D00025F1 | [2] | IDLER | KOBAssembly, Crawler -- Incls. Refs. 1-1 - 1-4 |
| 1-1. | YN52D00009F1 | [1] | IDLER | KOBAssembly -- Not Shown, See Figure 6.011 (01) Superseded by part number: LQ52D00044F1 |
| 1-2. | LQ54D00010F1 | [1] | SPRING | SMAdjust Assembly -- Not Shown, See Figure 6.011 (02) Superseded by part number: LQ54D00010F8 |
| 1-3. | ZS13C16045 | [2] | SCREW | KOBM16x2.0x45mm, Not Shown |
| 1-4. | 2444P803 | [1] | LUBE NIPPLE,5/8” – 18 x 64mm L, 19mm Hex | KOB5/8" - 18 UNF, Straight, Not Shown |
