纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (6.011[01]) - IDLER ASSEMBLY (YN52D00009F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
707 次

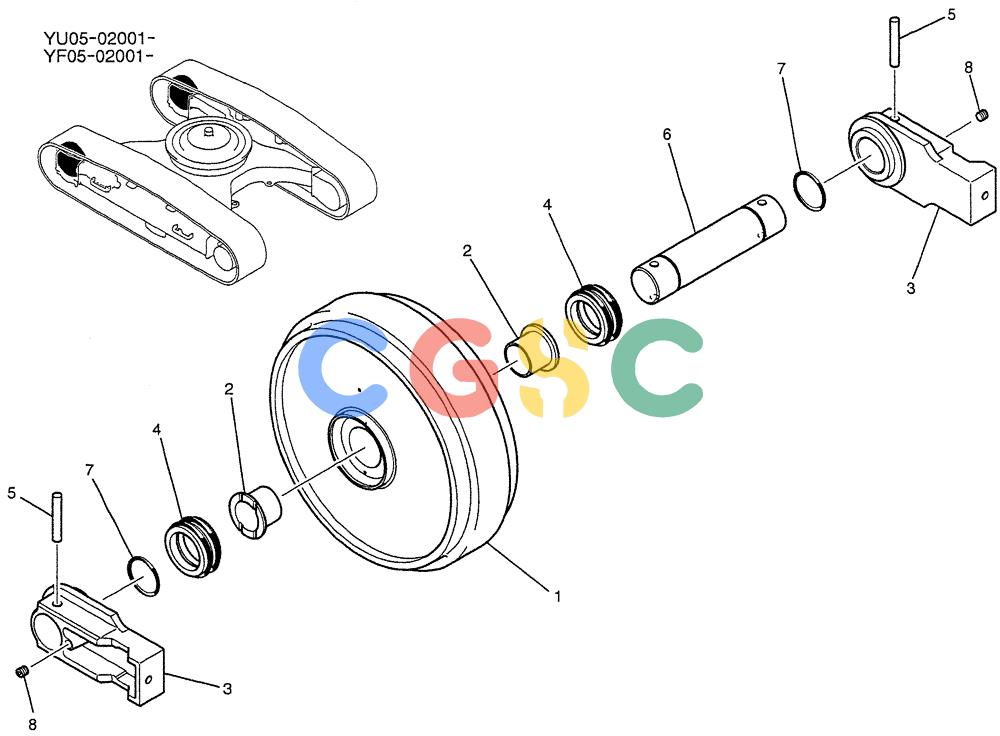

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN52D00009F1 | [1] | IDLER | KOBAssembly, Incls. Refs. 1-8 Superseded by part number: LQ52D00044F1 |
| 1. | YN52D01006P1 | [1] | IDLER | KOB |
| 2. | 2405P482 | [2] | BUSHING | KOBID 75.2 x OD 83 x 69.5mm Long |
| 3. | YN52D01011P1 | [2] | COLLAR | KOB |
| 4. | 2445R442F1 | [2] | SEAL,110mm ID x 133.4mm OD x 33mm Thk | KOB |
| 5. | YN52D01008P1 | [2] | PIN,16mm OD x 102mm L | KOB |
| 6. | YN52D01001P1 | [1] | SHAFT | KOB |
| 7. | ZD11G07000 | [2] | O-RING,69.40mm ID x 75.60mm OD x 3.10mm | KOBID 69.40 ± 0.61 x OD 75mm |
| 8. | ZE82T02000 | [2] | PLUG | KOB1.25" PT |
