纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (6.011[02]) - IDLER ADJUSTER ASSEMBLY (LQ54D00010F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
376 次

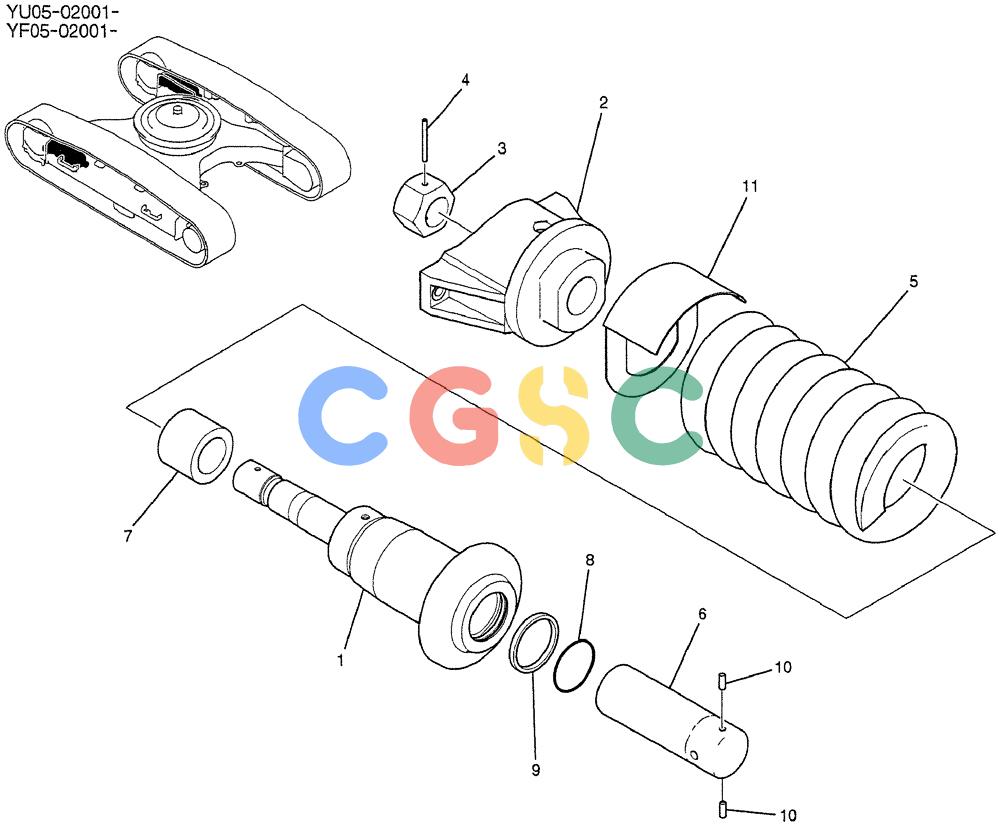

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LQ54D00010F1 | [1] | SPRING | SMIdler Adjust Assembly, Incls. Refs. 1-11 Superseded by part number: LQ54D00010F8 |
| 1. | YN70V00004F2 | [1] | LUBE NIPPLE | SMCylinder Assembly, Grease Superseded by part number: LQ70V00003P1 |
| 2. | LQ54D01013P1 | [1] | U-BRACKET | KOB |
| 3. | LQ54D01005P1 | [1] | NUT | KOB |
| 4. | ZP26D08080 | [1] | PIN | KOBRoll -- OD 08 x 80mm Long |
| 5. | LQ54D01022P1 | [1] | SPRING | SM Superseded by part number: LQ54D01024P1 |
| 6. | 2439P174 | [1] | PISTON | KOB |
| 7. | YN54D01024P1 | [1] | COLLAR CLAMP | KOB |
| 8. | ZD12G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOBID 89.40 ± 0.77 x OD 95mm |
| 9. | 2445Z1034 | [1] | GASKET,90mm ID x 105mm OD x 10mm Thk | KOBU-Packing |
| 10. | LQ54D01023P1 | [2] | PIN | SM |
| 11. | LQ54D01014P1 | [1] | GUARD | KOBCover |
