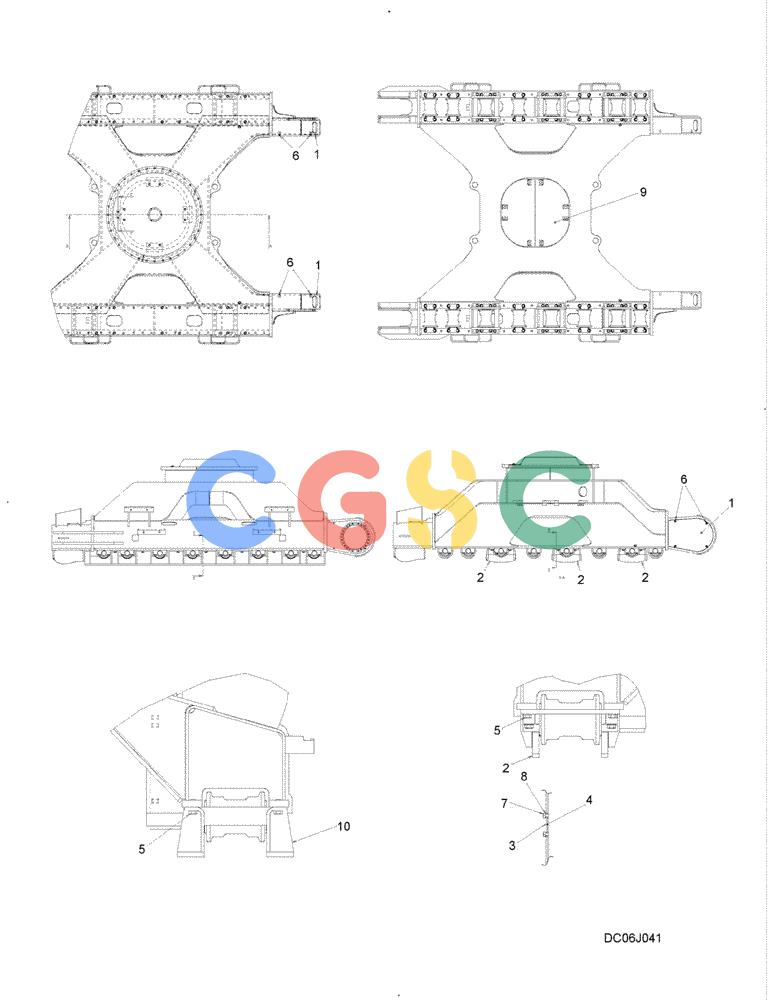

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (6.013[01]) - LOWER FRAME GROUP (HIGH & WIDE) (YN01FU0003F1 & YN01FU0003F2), FIGURE 1 OF 2 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
430 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LQ01F01059P1 | [2] | COVER | KOB |
| 2. | YN63D00003P1 | [6] | GUIDE | KOBTrack (F1 Only) Superseded by part number: YN63D00003P2 |
| 2. | YN63D00003P2 | [6] | GUIDE | KOB |
| 3. | 2422T556 | [1] | PLATE | KOB90x50x Th 05mm |
| 4. | 2418T12274 | [1] | PACKING | KOB90x50x Th 05mm |
| 5. | 2420P1580D1 | [24] | SCREW,M18 x 1.5 x 40mm | KOBScrew -- M18x1.50x40mm, (F1 Only) |
| 6. | ZM73C12025 | [8] | BOLT,M12x25mm - Course Thread | KOBM12x1.75x25mm (Incls. Washer) |
| 7. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| 8. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 9. | LC24C00027F1 | [1] | Under Cover Assembly, Incls. Refs. 9-A - 9-D | |
| 9-A. | 2414P9839 | [2] | COVER | KOBNot Shown |
| 9-B. | ZW11P18000 | [8] | WASHER | KOBWasher, ID 19 x OD 34 x Th 3.0mm, Not Shown |
| 9-C. | ZW22K18000 | [8] | LOCK WASHER | KOBID 18 x OD 26 x Th 3.5mm, Not Shown |
| 9-D. | ZS13C18040 | [8] | BOLT | KOBM18x2.0x40mm, Not Shown |
| 10. | YN01FU1020P1 | [2] | STONEGUARD | KOBRock Guard (F2 Only) Superseded by part number: YN01F01096P1 |
