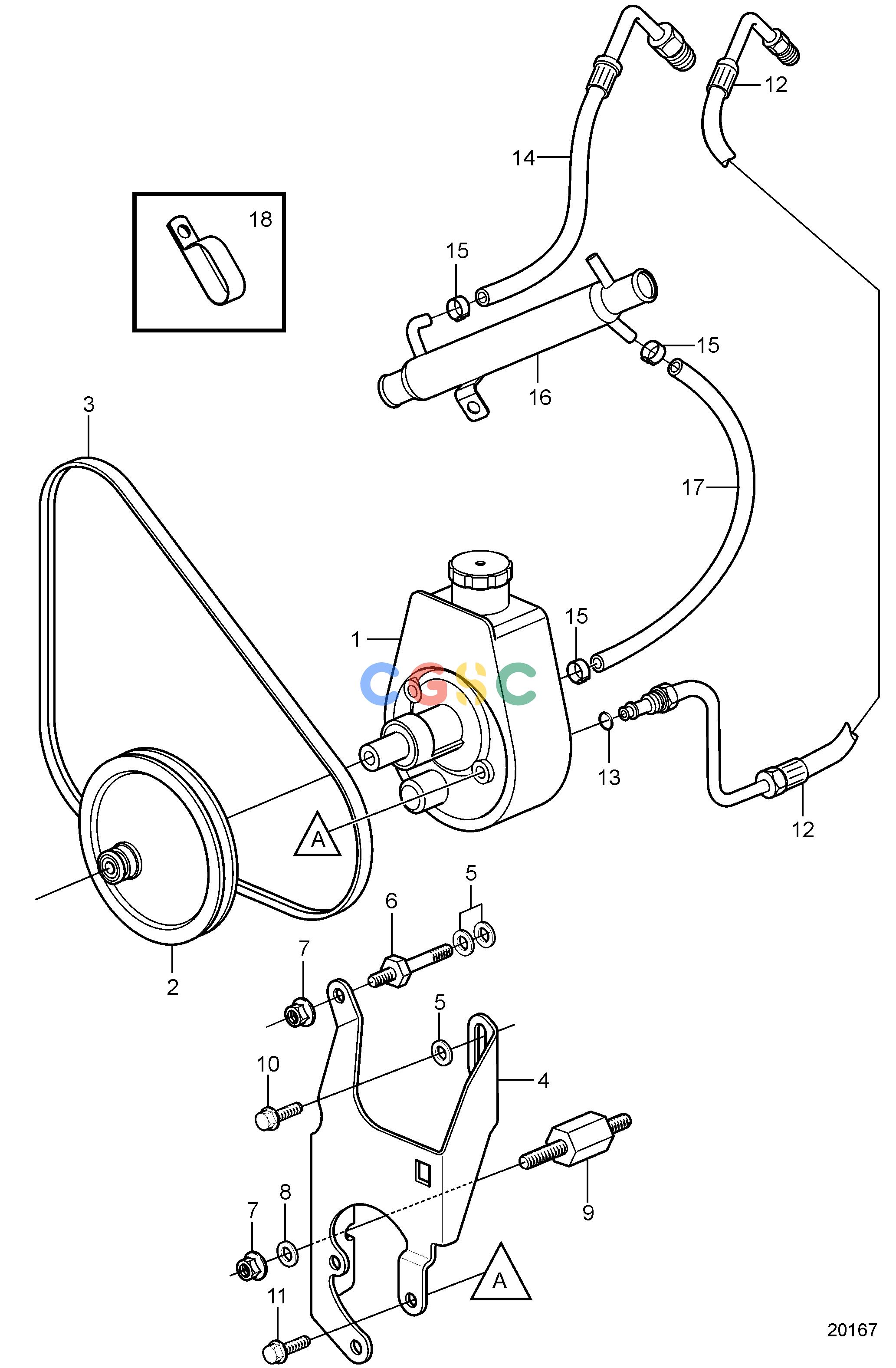

沃尔沃零件查询5.0GL-F; 5.0GL-FFSteering SystemPower SteeringEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
929 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3850491
|
[1] |
Steering pump
|
|
| 2. |
3853804
|
[1] |
Pulley
|
|
| 3. |
3852464
|
[1] |
V-belt
|
|
| 4. |
3856871
|
[1] |
Bracket
|
|
| 5. |
980933
|
[3] |
Washer
|
|
| 6. |
3852507
|
[1] |
Stud
|
|
| 7. |
3853403
|
[2] |
Nut retainer
|
|
| 8. |
3852054
|
[1] |
Washer
|
|
| 9. |
3856973
|
[1] |
Stud
|
|
| 10. |
3853557
|
[1] |
Flange screw
|
|
| 11. |
3853405
|
[3] |
Screw
|
|
| 12. |
3863145
|
[1] |
Hose
|
|
| 13. |
3852497
|
[1] |
O-ring
|
|
| 14. |
3863148
|
[1] |
Hose
|
|
| 15. |
982663
|
[3] |
Hose clamp
|
|
| 16. |
3862629
|
[1] |
Oil cooler
|
|
| 17. |
3852839
|
[1] |
Hose
|
|
| 18. |
3852490
|
[1] |
Attaching clamp, loop
|
D=36mm
|
| 18. |
984038
|
[1] |
Clamp, J
|
D=22,2mm
|
