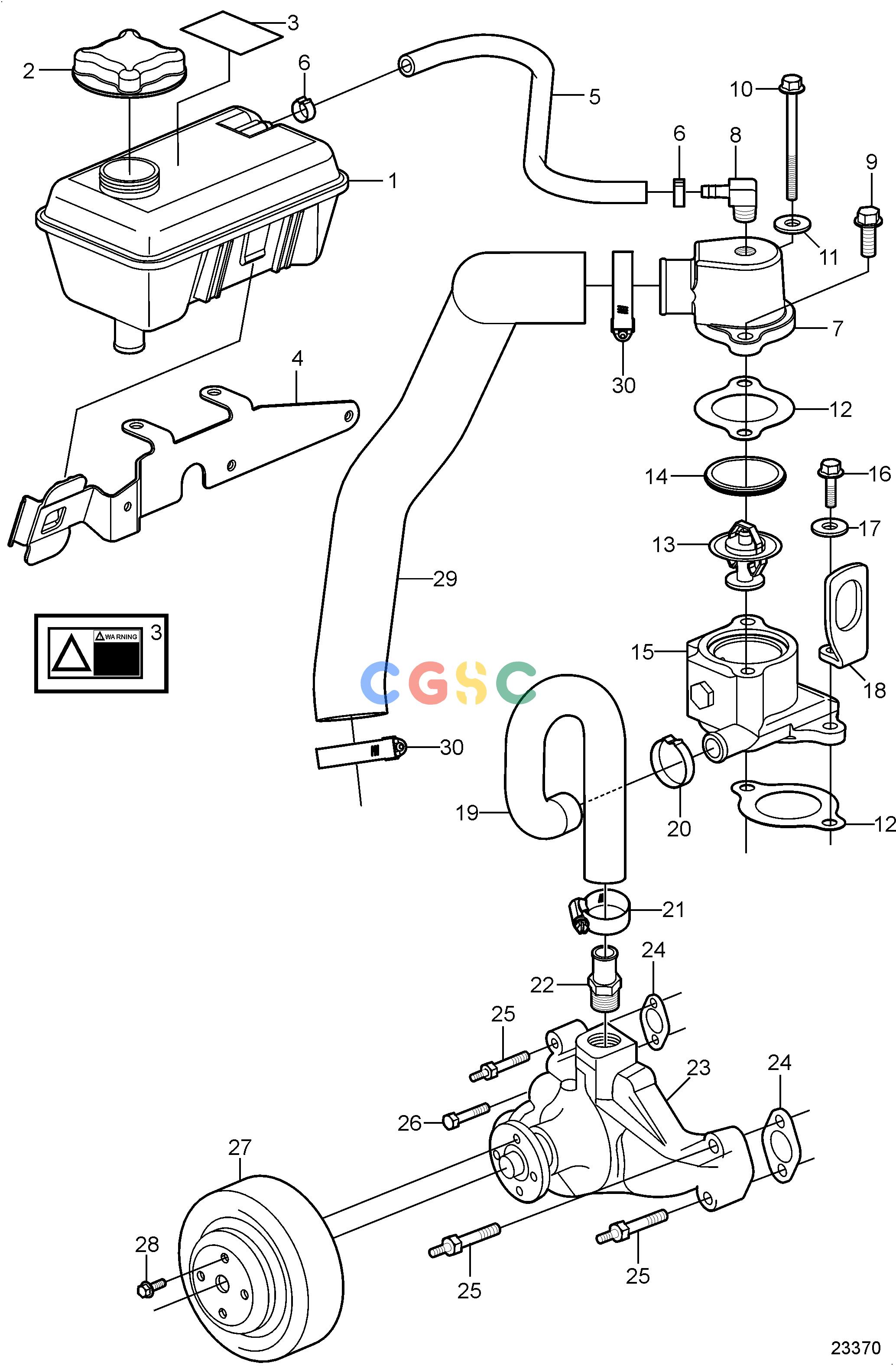

沃尔沃零件查询5.0GL-H; 5.0GL-HFCooling SystemCirculation Pump and ThermostatEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
224 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861105
|
[1] |
Expansion tank
|
|
| 2. |
1674083
|
[1] |
Pressure cap
|
|
| 3. |
3858552
|
[1] |
Decal
|
Warning!
|
| 4. |
3842583
|
[1] |
Bracket
|
|
| 5. |
3860955
|
[1] |
Hose
|
|
| 6. |
3860413
|
[1] |
Hose clamp
|
|
| 6. |
982643
|
[1] |
Clamp
|
Oetiker
|
| 7. |
3860555
|
[1] |
Thermostat housing
|
|
| 8. |
3860585
|
[1] |
Elbow nipple
|
|
| 9. |
3860163
|
[1] |
Screw
|
|
| 10. |
3853391
|
[1] |
Screw
|
|
| 11. |
3852162
|
[1] |
Washer
|
|
| 12. |
3852111
|
[2] |
Gasket
|
|
| 13. |
3831426
|
[1] |
Thermostat kit
|
|
| 14. |
416033
|
[1] |
Sealing ring
|
|
| 15. |
3851384
|
[1] |
Thermostat housing
|
|
| 16. |
3853401
|
[1] |
Screw
|
|
| 17. |
3852162
|
[1] |
Washer
|
|
| 18. |
3861919
|
[1] |
Lifting eye
|
|
| 19. |
3842131
|
[1] |
Hose
|
|
| 20. |
982716
|
[1] |
Clamp
|
|
| 21. |
3863439
|
[1] |
Hose clamp
|
|
| 22. |
983744
|
[1] |
Hose nipple
|
|
| 23. |
3853850
|
[1] |
Circulation pump
|
|
| 24. |
3852477
|
[2] |
Gasket
|
|
| 25. |
3856147
|
[3] |
Stud
|
|
| 26. |
3856137
|
[1] |
Bolt
|
|
| 27. |
3860083
|
[1] |
Pulley
|
|
| 28. |
3853390
|
[4] |
Screw
|
|
| 29. |
3841899
|
[1] |
Hose
|
|
| 30. |
3812304
|
[2] |
Hose clamp
|
|
