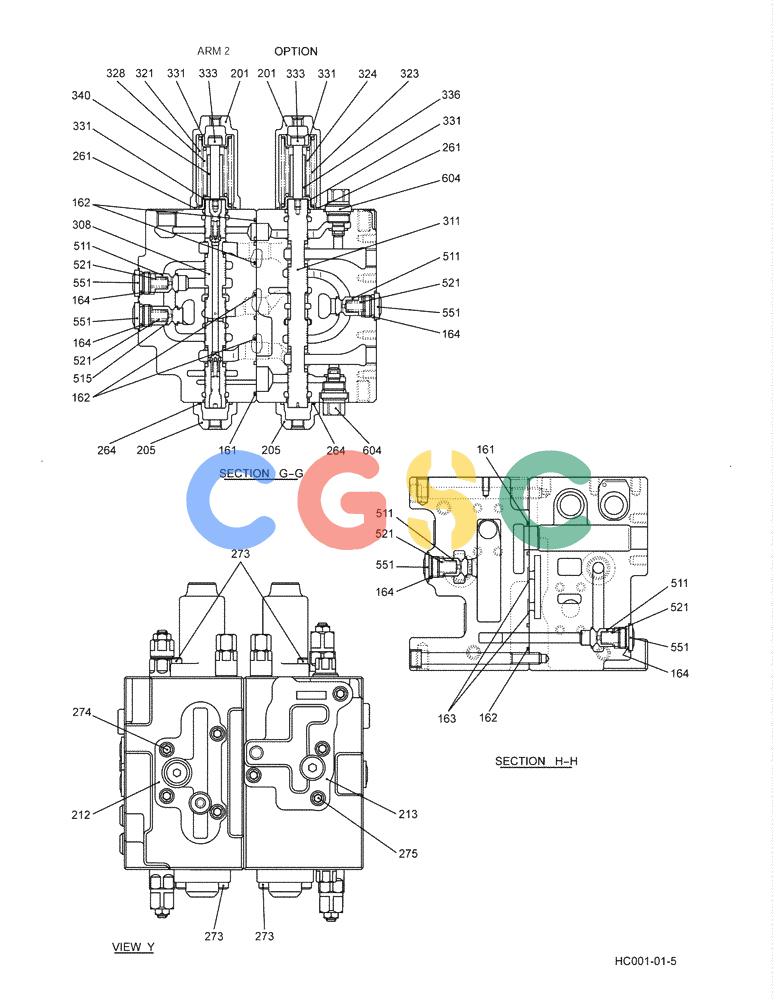

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (8.005[00]) - VALVE ASSEMBLY, CONTROL (LC30V00101F1) (HC001), FIGURE 5 OF 5 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
560 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00101F1 | [1] | VALVE, CONTROL | KOBAssembly, Figure 5 of 5, Start Serial: 0 Superseded by part number: YN30V00101F6 |
| 161. | ZD12P03800 | [7] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 162. | ZD12G03000 | [15] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 163. | ZD12P01500 | [11] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
| 164. | ZD12P02400 | [19] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 201. | YN30V00101S201 | [5] | GUARD | SMCover |
| 205. | YN30V00001S205 | [7] | COVER | KOB |
| 212. | YN30V00079S212 | [1] | PLATE | KOB |
| 213. | YN30V00101S213 | [1] | PLATE | KOB |
| 261. | ZD12G05000 | [12] | O-RING,49.40mm ID x 55.60mm OD x 3.10mm | KOBID 49.40 ± 0.45 x OD 55mm |
| 264. | ZD12G04000 | [10] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 273. | ZS23C08025 | [40] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 274. | ZS23C12025 | [4] | CAPSCREW,Hex Socket Head, M12 x 52mm | KOBSCREW M12x1.75x25mm |
| 275. | ZS23C12035 | [4] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
| 308. | YN30V00101S308 | [1] | SPOOL | KOB Superseded by part number: YN30V00101R180 |
| 311. | YN30V00101S311 | [1] | SPOOL | SM Superseded by part number: YN30V00101R210 |
| 321. | YN30V00079S321 | [5] | SPRING | KOB |
| 323. | 2436U1165S371 | [3] | SPRING | KOB |
| 324. | 2436U1165S372 | [3] | SPRING | KOB |
| 328. | YN30V00101S328 | [1] | SPRING | SM |
| 331. | 2436U1443S332 | [24] | SPRING SEAT | KOB |
| 333. | 2436U1165S336 | [12] | BOLT | KOB |
| 336. | 2436U1165S335 | [10] | STOP | KOB |
| 340. | YN30V00101S340 | [1] | CLIP | SMStop |
| 511. | YN30V00101S341 | [11] | HYDRAULIC VALVE | SMPoppet |
| 515. | 2436U1231S513 | [1] | POPPET | KOB |
| 521. | 2436U1165S521 | [11] | SPRING | KOB |
| 551. | YN30V00001S551 | [13] | PLUG | KOB |
| 604. | YN30V01062P1 | [2] | PLUG | SM |
| K. | YN30V00116R170 | [1] | REPAIR KIT | SMContains Items 308, 321, 328, 331x2, 333 & 340 |
| K. | YN30V00101R210 | [1] | REPAIR KIT | KOBContains Items 311, 323, 324, 331x2, 333 & 336 |
