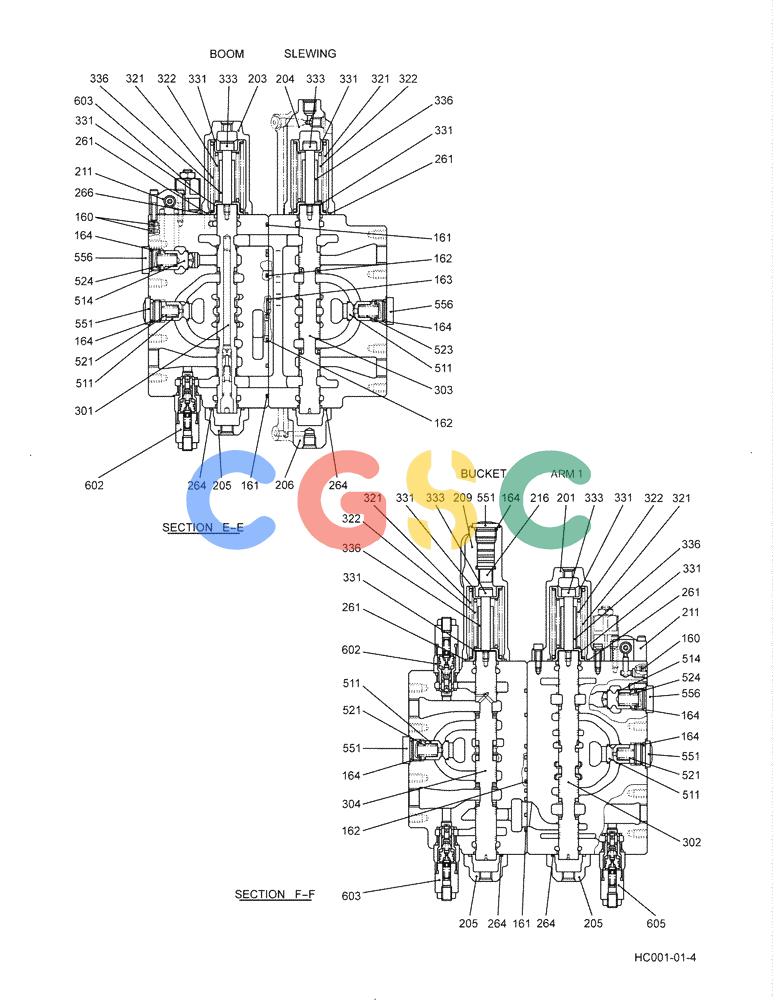

| . . | YN30V00101F1 | [1] | VALVE, CONTROL | KOBAssembly, Figure 4 of 5, Start Serial: 0 Superseded by part number: YN30V00101F6 |
| 160. | NA | [5] | NOT SERVICED | FORPLug |
| 161. | ZD12P03800 | [7] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 162. | ZD12G03000 | [15] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 163. | ZD12P01500 | [11] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
| 164. | ZD12P02400 | [19] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 201. | YN30V00101S201 | [5] | GUARD | SMCover |
| 203. | YN30V00101S203 | [1] | GUARD | SMCover |
| 204. | YN30V00101S204 | [1] | GUARD | SMCover |
| 205. | YN30V00001S205 | [7] | COVER | KOB |
| 206. | YN30V00101S206 | [1] | GUARD | SMCover |
| 209. | YN30V00101S209 | [1] | GUARD | SMCover |
| 211. | YN30V00119F1 | [2] | VALVE | KOBAssembly, Lock |
| 216. | YN30V00101S216 | [1] | PISTON | SM |
| 261. | ZD12G05000 | [12] | O-RING,49.40mm ID x 55.60mm OD x 3.10mm | KOBID 49.40 ± 0.45 x OD 55mm |
| 264. | ZD12G04000 | [10] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 266. | ZD12P00700 | [4] | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro | KOBO-Ring -- ID 06.80 ± 0.16 x OD 10mm |
| 301. | YN30V00101S301 | [1] | SPOOL | SM Superseded by part number: YN30V00101R220 |
| 302. | YN30V00101S302 | [1] | SPOOL | KOB |
| 303. | YN30V00101S303 | [1] | SPOOL | SM Superseded by part number: YN30V00101R120 |
| 304. | YN30V00101S304 | [1] | SPOOL | KOB Superseded by part number: YN30V00101R130 |
| 321. | YN30V00079S321 | [5] | SPRING | KOB |
| 322. | YN30V00079S322 | [4] | SPRING | KOB |
| 331. | 2436U1443S332 | [24] | SPRING SEAT | KOB |
| 333. | 2436U1165S336 | [12] | BOLT | KOB |
| 336. | 2436U1165S335 | [10] | STOP | KOB |
| 511. | YN30V00101S341 | [11] | HYDRAULIC VALVE | SMPoppet |
| 514. | YN30V00101S514 | [2] | HYDRAULIC VALVE | SMPoppet |
| 521. | 2436U1165S521 | [11] | SPRING | KOB |
| 523. | YN30V00089S523 | [1] | SPRING | KOB |
| 524. | YN30V00001S524 | [2] | SPRING | KOB |
| 551. | YN30V00001S551 | [13] | PLUG | KOB |
| 556. | YN30V00001S556 | [3] | PLUG | KOB |
| 602. | YN22V00002F1 | [2] | VALVE | KOBSee Figure 8.006 (HC015) |
| 603. | YN22V00002F9 | [3] | VALVE | KOBSee Figure 8.006 (HC015) |
| 605. | YN22V00029F1 | [1] | VALVE | KOBSee Figure 8.007 (HC020) |
| K. | YN30V00116R110 | [1] | REPAIR KIT | SMContains Items 302, 321, 322, 331x2, 333 & 336 |
| K. | YN30V00101R120 | [1] | REPAIR KIT | KOBContains Items 303, 321, 322, 331x2, 333 & 336 |
| K. | YN30V00116R130 | [1] | REPAIR KIT | SMContains Items 304, 321, 322, 331x2, 333 & 336 |
