纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (8.009.01[00]) - VALVE ASSEMBLY, RELIEF (YN22V00040F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
861 次

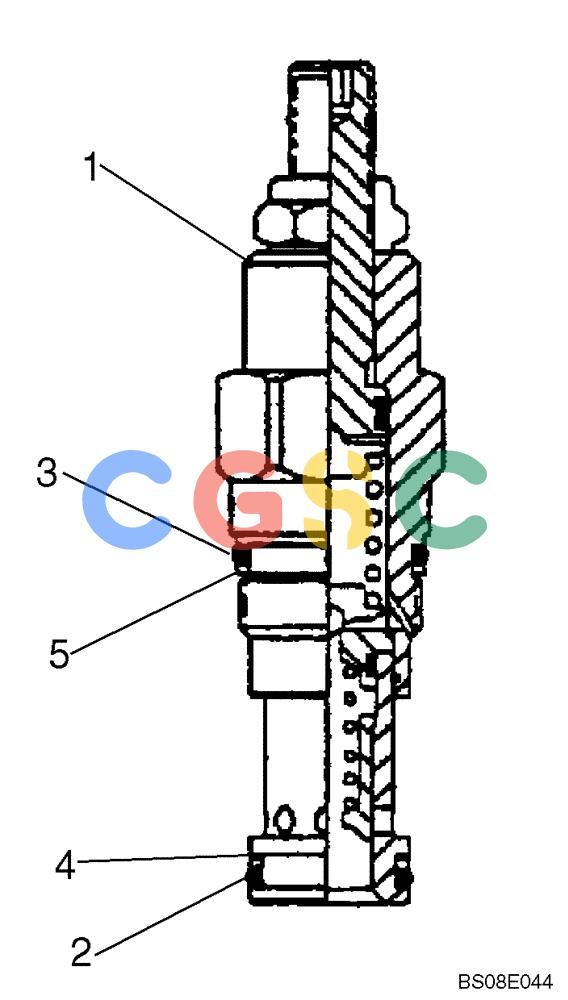

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22V00040F1 | [1] | HYDRAULIC VALVE | SMRelief Assembly |
| 1. | NA | [1] | NOT SERVICED | FORRelief Valve |
| 2. | PY22V00007S013 | [1] | O-RING | SM |
| 3. | PY22V00007S012 | [1] | O-RING | SM Superseded by part number: PY22V00007R100 |
| 4. | PY22V00007S017 | [1] | RING | SM |
| 5. | PY22V00007S016 | [1] | RING | SM |
| K. | PY22V00007R100 | [1] | SET OF PARTS | KOBKit, Repair -- Contains Items 2-5 |
