神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (12-040[04]) - SWIVEL JOINT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
479 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

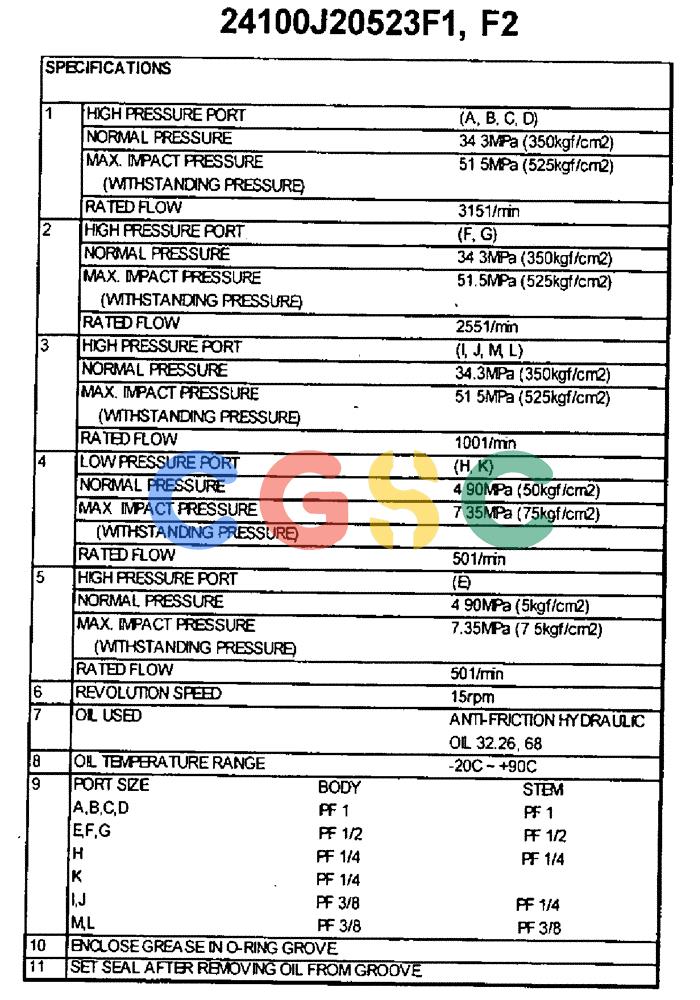

| . . | 24100J20523F1 | [1] | HYDRAULIC SWIVEL | KOBASSY |
| . . | 24100J20523F2 | [1] | HYDRAULIC SWIVEL | KOBASSY Superseded by part number: 24100J20523F3 |
| 1. | 2422J4745 | [1] | BODY | |
| 2. | 2436J385 | [1] | STEM F1 ONLY | STEM F1 ONLY |
| 3. | 2414T2712 | [1] | PIVOT | KOBPLATE, THRUST |
| 4. | 2414P6082 | [1] | COVER | KOB |
| 5. | 2445Z917 | [11] | SEAL | KOBASSY |
| 6. | ZD11P11000 | [2] | SEAL,109.6mm ID x 120mm OD x 5.2mm Thk | KOBO-Ring -- ID 109.6 ± 0.91 x OD 120mm |
| 7. | ZD11G12500 | [1] | O-RING,3.1mm Thk x 124.4mm ID, 70 Duro | KOBO-Ring -- ID 124.4 ± 1.01 x OD 130mm |
| 8. | ZS23C08020 | [2] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 9. | ZS23C08030 | [4] | SCREW,Hex Socket Head, M8 x 30mm | KOBM08x1.25x30mm Superseded by part number: ZS28C08030 |
| 10. | ZE82T06000 | [2] | PLUG | KOBPipe, 3/8" PT |
| 11. | ZE82T06000 | [5] | PLUG | KOBPipe, 3/8" PT |
| 12. | YY55V01001P1 | [1] | STEM, F2 ONLY | |
| 13. | YY55V01002P1 | [1] | COVER | KOBCOVER, F2 ONLY |
| 14. | YN22T00194P1 | [1] | TYPE PLATE | KOBNAME |
| 15. | 2420Z1036D3 | [2] | CLEVIS | KOB2.2x4.6mm |
