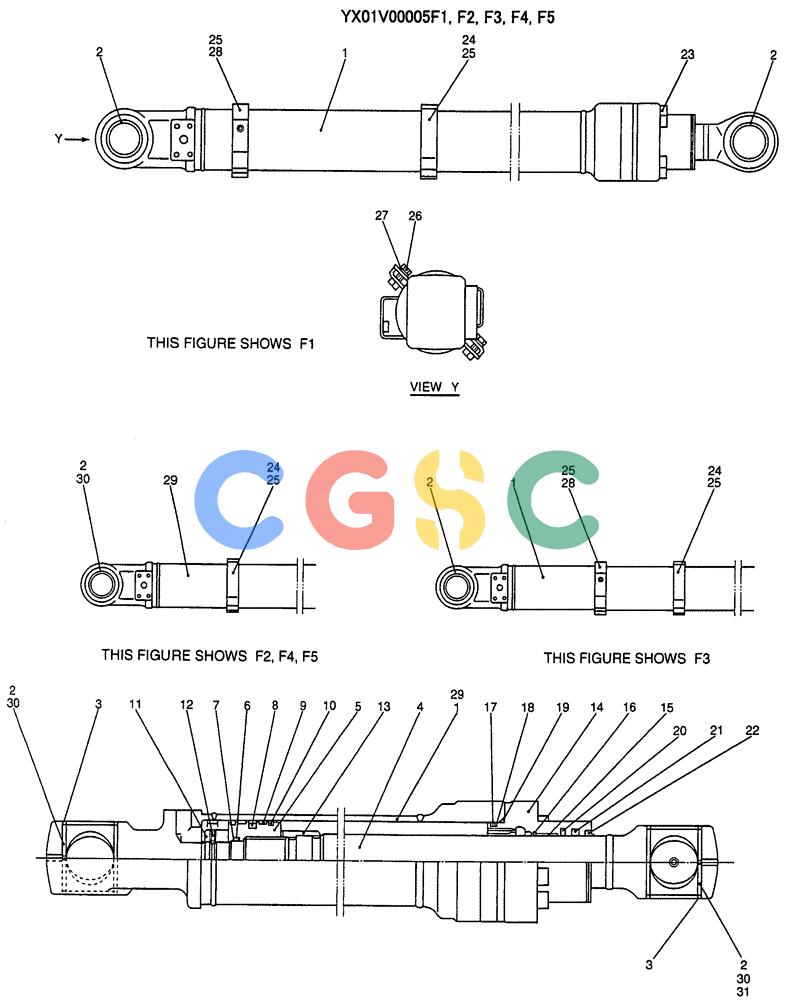

| . . | YX01V00005F1 | [1] | BUCKET CYLINDER | KOBAssembly Superseded by part number: YX01V00005F8 |
| . . | YX01V00005F2 | [1] | CYLINDER ASSY. | KOBBucket Superseded by part number: YX01V00005F7 |
| . . | YX01V00005F3 | [1] | BUCKET CYLINDER | KOBAssembly Superseded by part number: YX01V00005F8 |
| . . | YX01V00005F4 | [1] | BUCKET CYLINDER | KOBAssembly Superseded by part number: YX01V00005F6 |
| . . | YX01V00005F6R | [1] | REMAN-HYD CYLINDER | RACE215B TIER 3 (1/07-), Reman for New P/N YX01V00005F4 |
| . . | YX01V00005F6C | [1] | CORE-HYD CYLINDER | RACReturn number |
| . . | YX01V00005F5 | [1] | BUCKET CYLINDER | KOBCylinder Assembly, Bucket Superseded by part number: YX01V00005F6 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTube, Cylinder (F1 & F3 Only) |
| 2. | 2438U1097S2 | [2] | BUSHING | KOB(F1, F2 & F3 Only) |
| 3. | 2438U1097S29 | [4] | SEAL | KOBDust |
| 5. | YW01V00003S029 | [1] | PISTON | KOB |
| 6. | YW01V00001S008 | [1] | O-RING | KOB |
| 7. | YW01V00001S009 | [2] | BACK-UP RING | KOB |
| 8. | YW01V00003S030 | [1] | SEAL | KOBPiston Superseded by part number: YW01V00001S031 |
| 9. | YW01V00001S032 | [2] | RING | KOBWear |
| 10. | YW01V00001S012 | [2] | RING | KOB |
| 11. | YW01V00001S013 | [1] | NUT | KOBPiston |
| 12. | YN01V00001S014 | [1] | SCREW | KOBSet |
| 13. | YX01V00005S013 | [1] | RING | KOBCushion |
| 14. | YX01V00005S014 | [1] | COVER | KOBRod |
| 15. | 2438U1097S18 | [1] | BUSHING | KOB |
| 16. | B38K0038E10 | [1] | CLIP | KOB |
| 17. | ZD12G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOBID 89.40 ± 0.77 x OD 95mm |
| 18. | YW01V00001S020 | [1] | RING | KOBBack-Up |
| 19. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOBO-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 20. | YW01V00001S022 | [1] | SEAL | KOB |
| 21. | 2438U897S18 | [1] | PACKING | KOBRod |
| 22. | 2438U908S27 | [1] | SEAL | KOBDust |
| 23. | ZS23C14065 | [8] | BOLT,Hex Socket Head, M14 x 65mm | KOBM14x2.0x65mm |
| 24. | YW01V00003S024 | [1] | BRACKET | KOBBand |
| 25. | YW01V00003S025 | [2] | BRACKET | KOBBand (F1 & F3 Only) |
| 26. | ZS16C10030 | [4] | CAPSCREW | KOBSCREW M10x1.50x30mm (F1, F3 Only) Superseded by part number: ZS18C10030 |
| 27. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm, (F1 & F3 Only) |
| 28. | YX01V00005S028 | [1] | BAND | KOB(F1 & F3 Only) |
| 30. | YN01V01086P1 | [2] | BUSHING,60mm ID x 80mm OD x 70mm L | KOB(F4 Only) |
| 31. | YN01V01092P1 | [1] | BUSHING,60.2mm ID x 70mm OD x 80mm L | KOBBushing (F5 Only) |
| K. | YX01V00005R100 | [1] | REPAIR KIT | KOBRod Side -- Contains Items 17 (1), 18 (1), 19 (1), 20 (1), 21 (1), 22 (1) Superseded by part number: YW01V00003R100 |
| K. | YX01V00005R200 | [1] | REPAIR KIT | KOBPiston Side -- Contains Items 6 (1), 7 (2), 8 (1), 9 (2), 10 (2) Superseded by part number: YW01V00003R200 |
| K. | YX01V00005R300 | [1] | REPAIR KIT | KOBAll (Rod+Piston) -- Contains Items 6 (1), 7 (2), 8 (1), 9 (2), 10 (2), 17 (1), 18 (1), 19 (1), 20 (1), 21 (1), 22 (1) Superseded by part number: YW01V00003R300 |
| K. | YX01V00005R400 | [1] | TUBE | KOBKit, Repair -- Contains Items 1 (1), 2 (1) (F1, F3 Only) |
| K. | YX01V00005R500 | [1] | PISTON ROD | KOBKit, Repair -- Contains Items 2 (1), 4 (1) (F1, F2, F3 Only) |
| K. | YX01V00005R600 | [1] | TUBE | KOBKit, Repair -- Contains Items 2 (1), 29 (1) (F2 Only) |
| K. | YX01V00005R700 | [1] | PISTON ROD | KOBKit, Repair -- Contains Items 4 (1), 30 (1) (F4 Only) Superseded by part number: YX01V00005R900 |
| K. | YX01V00005R800 | [1] | REPAIR KIT | KOBContains Items 29 (1), 30 (1) (F4, F5 Only) |
| K. | YX01V00005R900 | [1] | REPAIR KIT | KOBKit, Repair -- Contains Items 4 (1), 31 (1) (F5 Only) |
