纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (8.025[00]) - CYLINDER ASSEMBLY, BUCKET (YN01V00153F1) (HC700) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
880 次

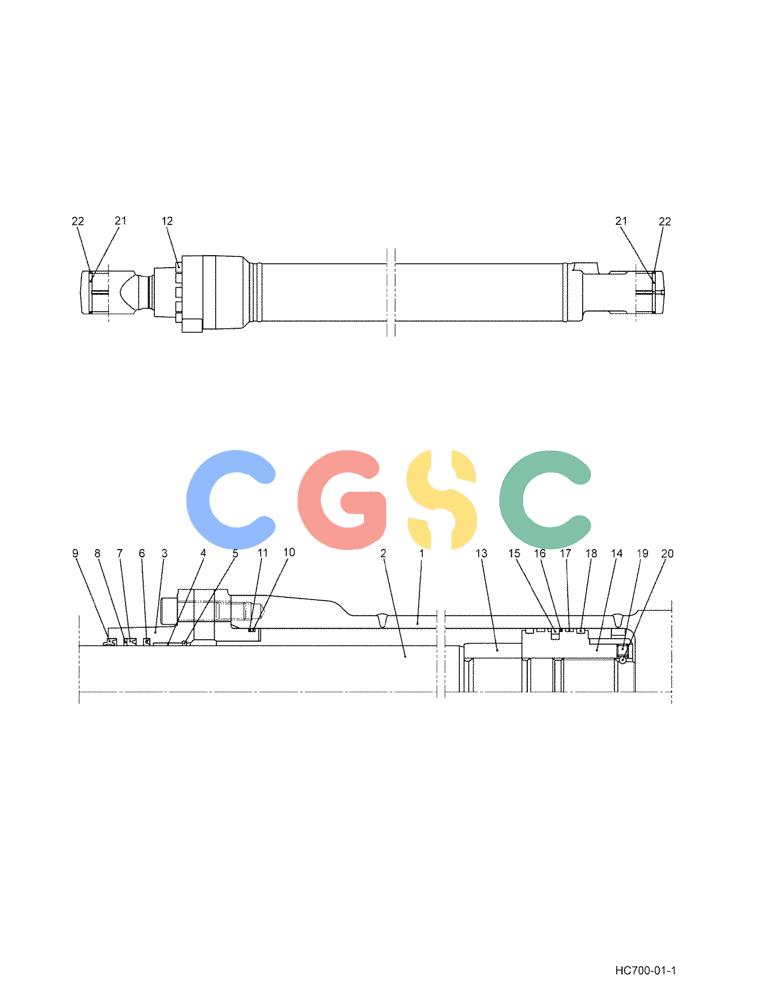

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01V00153F1 | [1] | HYDRAULIC CYLINDER | KOBAssembly, Bucket |
| . . | YN01V00153F1R | [1] | REMAN-HYD CYLINDER | KOBE215B TIER 3 (1/07-) |
| . . | YN01V00153F1C | [1] | CORE-HYD CYLINDER | KOBReturn Number |
| 1. | NA | [1] | NOT SERVICED | FORTube, Cylinder |
| 3. | YN01V00112S003 | [1] | CYLINDER HEAD | KOB |
| 4. | 2438U1109S14 | [1] | BUSHING | KOB |
| 5. | 2438U1105S5 | [1] | SNAP RING | KOB |
| 6. | YN01V00153S006 | [1] | RING | KOBBuffer |
| 7. | YN01V00153S007 | [1] | RING | KOBU-Ring |
| 8. | 2438U1105S8 | [1] | RING | KOB |
| 9. | 2438U1105S35 | [1] | RING | KOB |
| 10. | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOBID 114.40 ± 0.94 x OD 120mm |
| 11. | 2438U1105S12 | [1] | BACK-UP RING | KOB |
| 12. | ZS23C16075 | [12] | SCREW,Hex Socket Head, M16 x 75mm | KOBM16x2.0x75mm |
| 13. | YN01V00153S013 | [1] | BEARING | KOBCushion |
| 14. | YN01V00153S014 | [1] | PISTON | KOB |
| 15. | 2438U1105S16 | [1] | RING ASSY. | KOB |
| 16. | LQ01V00004S017 | [2] | BACK-UP RING | KOB |
| 17. | YN01V00151S018 | [2] | RING | KOBSide Superseded by part number: 2438U1105S17 |
| 18. | 2438U1105S18 | [2] | RING | KOB |
| 19. | 2438U999S21 | [1] | SET SCREW | KOBSet -- M12x1.75mm |
| 20. | 2436U330S16 | [1] | BALL | KOB |
| 21. | YN12B02221P1 | [4] | BUSHING,80mm ID x 95mm OD x 47mm L | KOBID 80 x OD 95 x 47mm Long |
| 22. | YN01V00153S022 | [4] | SEAL | KOBDust |
| K. | YN01V00153R100 | [1] | REPAIR KIT | KOBRod Side -- Contains Items 6X1, 7X1, 8X1, 9X1, 10X1, 11X1 |
| K. | YN01V00151R200 | [1] | REPAIR KIT | KOBPiston Side -- Contains Items 15X1, 16X2, 17X2, 18X2 Superseded by part number: YN01V00151R600 |
| K. | YN01V00153R300 | [1] | REPAIR KIT | KOBAll (Rod+Piston) -- Contains Items 6X1, 7X1, 8X1, 9X1, 10X1, 11X1, 15X1, 10X1, 11X1, 15X1 |
| K. | YN01V00153R400 | [1] | REPAIR KIT | KOBContains Items 1X1, 21X2, 22X2 |
| K. | YN01V00153R500 | [1] | REPAIR KIT | KOBContains Items 2X1, 21X2, 22X2 |
