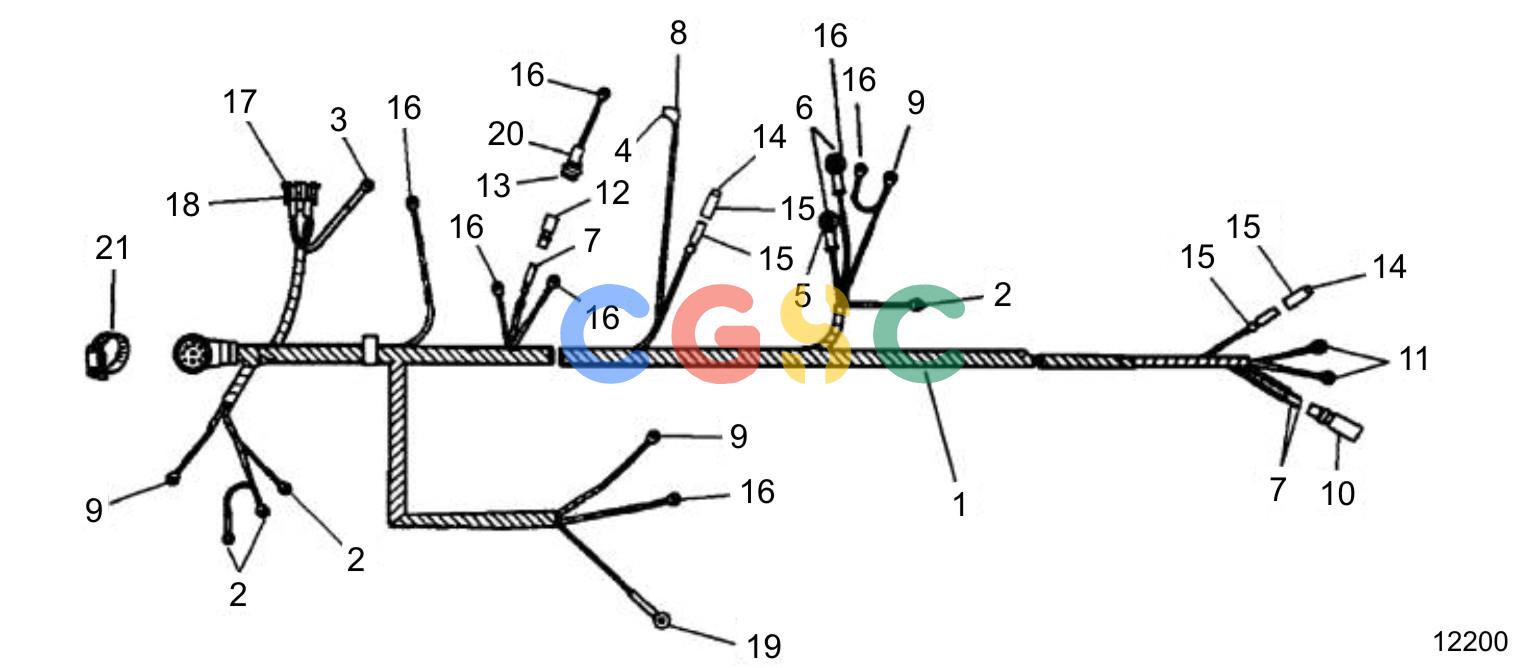

沃尔沃零件查询5.0GLPBYC; 5.0GiPBYCCE; 5.7GSPBYC; 5.7GSIPBYCCEElectrical SystemEngine HarnessEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
815 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3858132
|
[1] |
Cable harness
|
|
| 2. |
3852245
|
[4] |
Terminal
|
|
| 3. |
3852107
|
[1] |
Terminal, bracket ground
|
|
| 4. |
3852084
|
[1] |
Terminal, choke
|
|
| 5. |
3852038
|
[1] |
Terminal, alternator output
|
|
| 6. |
3852130
|
[2] |
Rubber cap, alternator
|
|
| 7. |
3852229
|
[2] |
Terminal, pin
|
|
| 8. |
3853320
|
[1] |
Cap, terminal
|
|
| 9. |
3852235
|
[3] |
Terminal
|
|
| 10. |
3853565
|
[1] |
Connector, 2-pin
|
|
| 11. |
3850998
|
[2] |
Terminal, ground
|
|
| 12. |
3850992
|
[1] |
Connector, socket
|
|
| 13. |
3852257
|
[1] |
Terminal
|
|
| 14. |
3852181
|
[2] |
Cap, socket
|
|
| 15. |
3852244
|
[2] |
Terminal, socket
|
|
| 16. |
3852233
|
[2] |
Terminal
|
|
| 17. |
3852254
|
[4] |
Terminal, starter relay
|
|
| 18. |
3854192
|
[1] |
Relay
|
|
| 19. |
3852037
|
[1] |
Terminal, starter
|
|
| 20. |
3850991
|
[1] |
Connector
|
|
| 21. |
3853786
|
[1] |
Hose clamp, instrument cable
|
|
