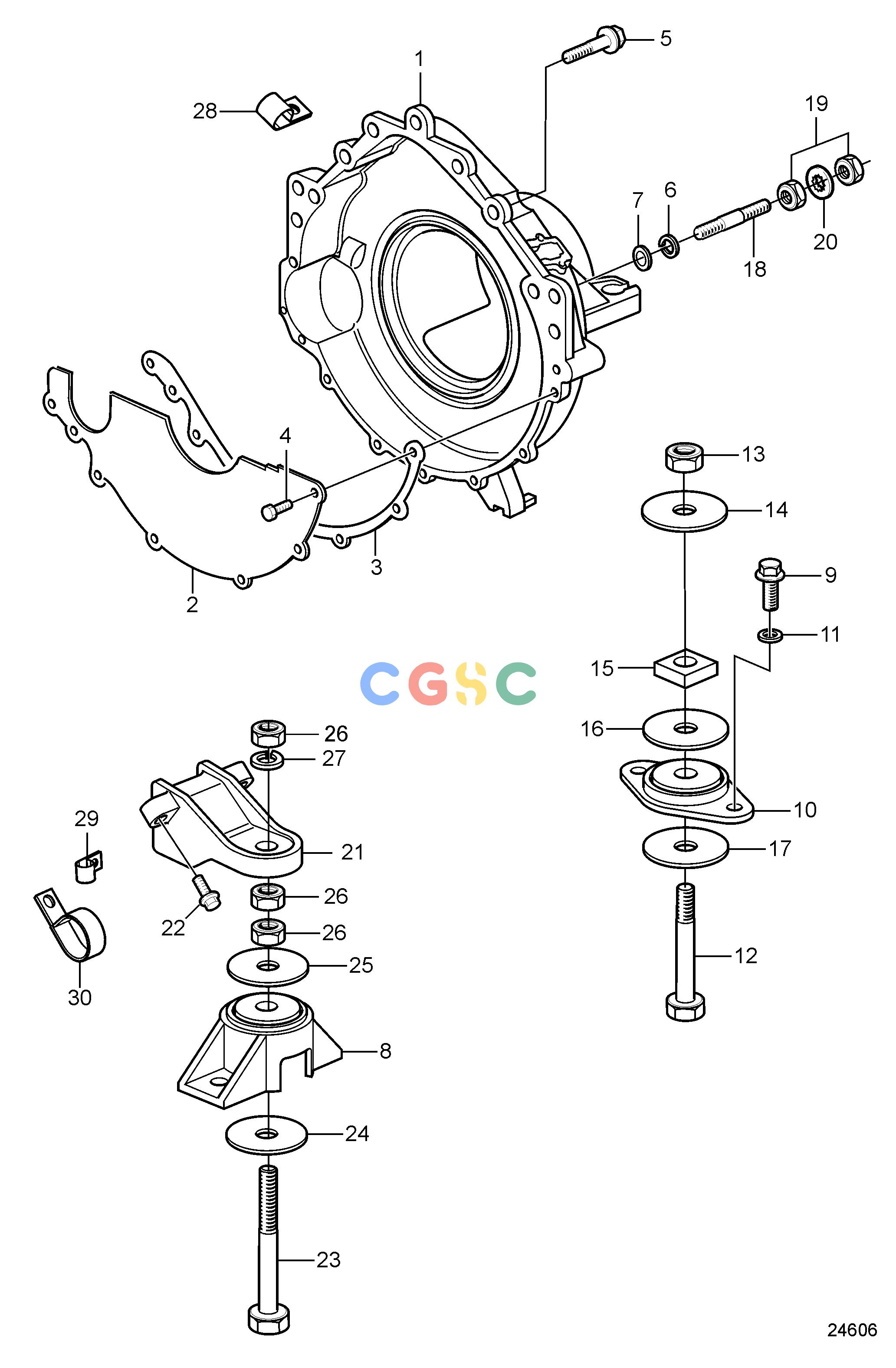

沃尔沃零件查询5.0GLPBYC; 5.0GiPBYCCE; 5.7GSPBYC; 5.7GSIPBYCCEEngineFlywheel Housing and MountsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
290 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3857846
|
[1] |
Housing
|
|
| 2. |
3854604
|
[1] |
Cover
|
|
| 3. |
3852834
|
[1] |
Gasket
|
|
| 4. |
3852421
|
[7] |
Screw, flywheel cover
|
|
| 5. |
3853392
|
[2] |
Flange screw, flywheel hsg to engine
|
|
| 5. |
3853547
|
[1] |
Flange screw, reservoir and flywheel hsg to engine
|
|
| 6. |
3852002
|
[2] |
Tab washer, ground stud, flywheel hsg
|
|
| 7. |
3852058
|
[2] |
Washer, ground stud, flywheel hsg
|
|
| 8. |
3853805
|
[2] |
Rubber cushion, engine front
|
Port and starboard
|
| 9. |
959968
|
[4] |
Hexagon screw, rear mount to transom plate
|
|
| 10. |
3853806
|
[2] |
Rubber cushion, transom plate
|
|
| 11. |
3852155
|
[4] |
Washer, rear mount to transom plate
|
|
| 12. |
3850930
|
[2] |
Hexagon screw, rear mount
|
|
| 13. |
3850929
|
[2] |
Lock nut, rear mount
|
|
| 14. |
3852540
|
[2] |
Washer, rear mount to flywheel hsg
|
|
| 15. |
3852539
|
[2] |
Square nut, rear mount
|
|
| 16. |
3852622
|
[2] |
Washer, rear mount
|
|
| 17. |
3852542
|
[2] |
Washer, rear mount
|
|
| 18. |
3852483
|
[2] |
Stud, flywheel housing to engine
|
Ground
|
| 19. |
3852065
|
[2] |
Nut, terminal to ground stud, flywheel hsg
|
|
| 20. |
3852070
|
[1] |
Washer, ground stud, flywheel hsg
|
Starboard
|
| 21. |
3857844
|
[2] |
Bracket, front, port and starboard
|
|
| 22. |
3853326
|
[6] |
Flange screw, front mount bracket to engine
|
|
| 23. |
3852566
|
[2] |
Bolt, front mount
|
Front
|
| 24. |
3852090
|
[2] |
Tab washer, bolt, front mount, engine
|
|
| 25. |
3852433
|
[2] |
Washer, front mount
|
Upper
|
| 26. |
3852021
|
[6] |
Nut, bolt, mount bracket
|
Front
|
| 27. |
3852428
|
[2] |
Washer, front mount
|
Lower
|
| 28. |
3852434
|
[1] |
Clamp
|
Harness
|
| 29. |
3852146
|
[1] |
Clamp, starter leads to stbd bracket
|
|
| 30. |
3853312
|
[1] |
Clamp
|
Starboard
|
