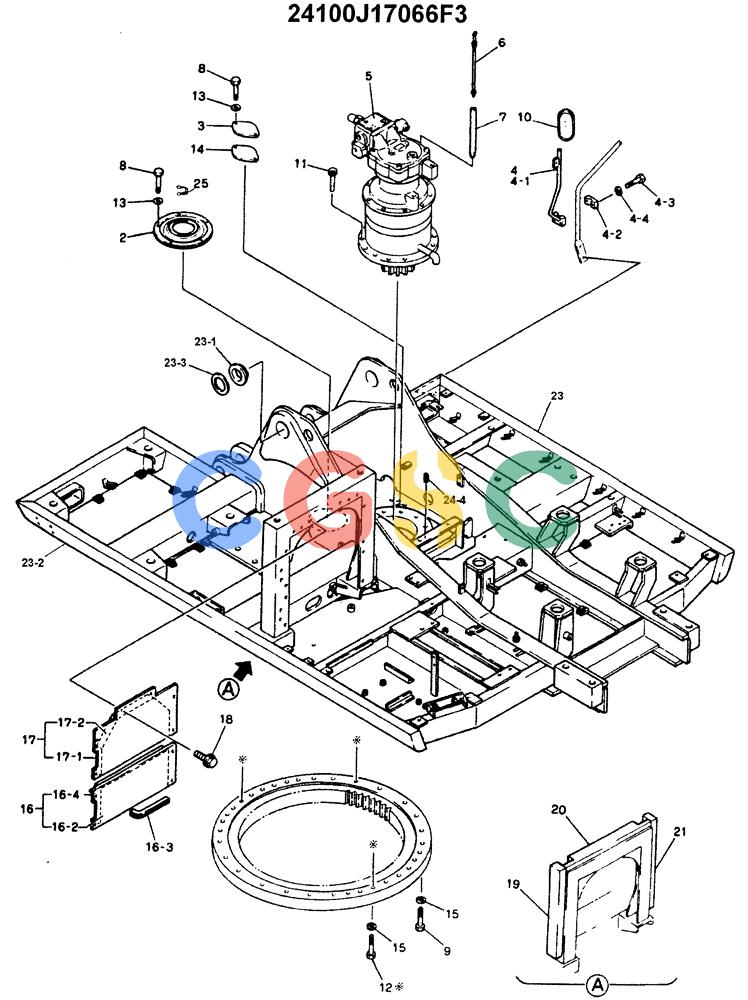

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (01-001) - UPPER FRAME ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
601 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J17066F3 | [1] | UPPER FRAME ASSY (STANDARD) | |
| 2. | YN52F01160P1 | [1] | SEAL | KOBDUST |
| 3. | YN52F01159P1 | [1] | PLATE | KOB |
| 4. | 24100P3750F1 | [1] | STAY | KOBASSY |
| 4-1. | 2416P18523 | [1] | STAY | KOB |
| 4-2. | 2432T4113D2 | [1] | CLAMP | KOB |
| 4-3. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 4-4. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 5. | 24100J16122F3 | [1] | (SEE FIGURE 01-004) | (SEE FIGURE 01-004) |
| 6. | 2420R561D1 | [1] | DIPSTICK | KOB |
| 7. | 2420P1519D1 | [1] | PIPE | KOB |
| 8. | ZS13C10025 | [7] | CAPSCREW | KOBM10x1.50x25mm Superseded by part number: ZS18C10025 |
| 9. | 2420T8428D1 | [30] | SCREW | KOBCAP, (M20X105MM) |
| 10. | 2456R351 | [1] | MIRROR | KOB |
| 11. | ZS23C20055 | [12] | SCREW,Hex Socket Head, M20 x 55mm | KOBM20x2.5x55mm |
| 12. | 2420T4564D2 | [3] | BOLT,M20 x 2.5 x 105mm | KOBReamer, M20x2.50x105mm |
| 13. | YN52F01157P1 | [7] | SEAL | KOB |
| 14. | 2416Z434 | [1] | PACKING | KOBRubber |
| 15. | ZW13H20000 | [33] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| 16. | 2414T4850F2 | [1] | COVER ASSY | KOB |
| 16-2. | 2427Z1344 | [1] | FOAM INSULATION | KOB |
| 16-3. | 2416Z263D2 | [1] | FOAM INSULATION | KOBSEAT, RUBBER |
| 16-4. | 2414P8769 | [1] | COVER | |
| 17. | 2414T4703F1 | [1] | COVER | KOB |
| 17-1. | 2414P7583 | [1] | COVER | |
| 17-2. | 2427Z1343 | [1] | FOAM INSULATION | KOB |
| 18. | 2420T6786 | [10] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| 19. | 2479Z2407 | [1] | INSULATOR | KOB |
| 20. | 2479Z3000 | [1] | FOAM INSULATION | KOB |
| 21. | 2479Z2218 | [1] | INSULATOR | KOB |
| 23. | YM52FU0003D4 | [1] | | |
| 23-1. | 2405T1893 | [2] | BUSHING | KOB |
| 23-2. | YM53FU0001P1 | [1] | DECK, L/H | |
| 23-3. | 2414T2784 | [1] | COVER | KOBID 95 X OD 146.4 x Th 06mm |
| 23-4. | ZS83C20020 | [2] | SCREW | KOBSet -- M20x2.50x20mm |
| 25. | ZC16X14800 | [1] | CLIP | KOBClamp, Hose -- Min 130 x Max 166mm |
