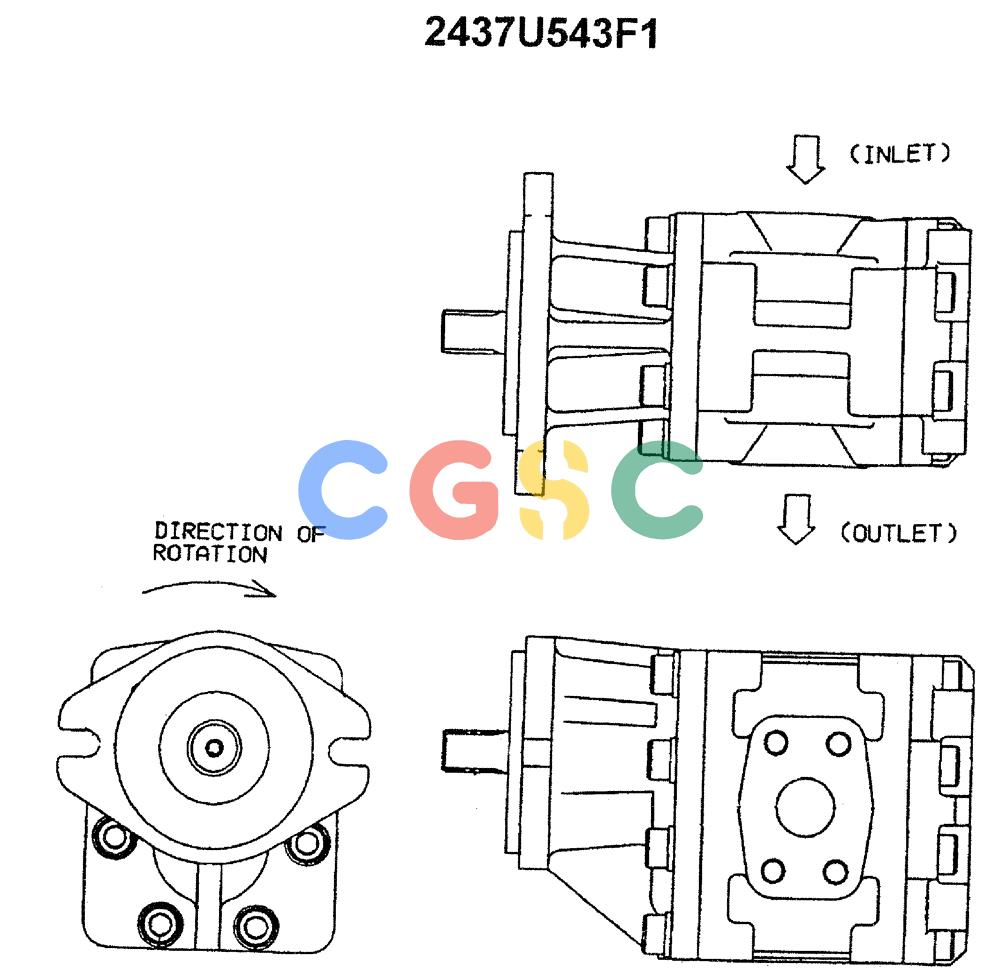

神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (12-024) - PUMP ASSEMBLY, DOZER, (2437U543F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
642 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2437U543F1 | [1] | PUMP | KOBDozer |
| 1. | 2437U543S001 | [1] | BODY | |
| 2. | 2437U543S002 | [2] | BEARING BOX, CO | |
| 3. | 2437U543S003 | [2] | BEARING BOX, CO | |
| 4. | 2437U543S004 | [1] | FRONT COVER | |
| 5. | 2437U543S005 | [2] | WEAR PLATE | KOBWEAR PLATE |
| 6. | 2437U543S006 | [2] | RING | KOBBACK-UP |
| 7. | 2437U543S007 | [2] | SEAL | KOBSEAL CORD |
| 8. | 2437U543S008 | [16] | HEX SOCKET HEAD | |
| 9. | 2437U543S009 | [2] | O-RING | KOBO-RING Superseded by part number: ZD12G07500 |
| 10. | 2437U543S010 | [1] | DRIVE SHAFT | |
| 11. | 2437U543S011 | [1] | DRIVEN SHAFT | |
| 12. | 2437U543S012 | [1] | REAR COVER | |
| 13. | 2437U543S013 | [2] | PARALLEL PIN | |
| 14. | 2437U543S014 | [1] | OIL SEAL | KOB |
| 15. | 2437U543S015 | [1] | OIL SEAL | KOB |
| 16. | 2437U543S016 | [1] | RETAINING RING | |
| 17. | 2437U543S017 | [1] | O-RING | KOBO-RING Superseded by part number: ZD12G04500 |
| 18. | 2437U543S018 | [1] | FRONT COVER FLA | |
| 19. | 2437U543S019 | [4] | HEX SOCKET HEAD | |
