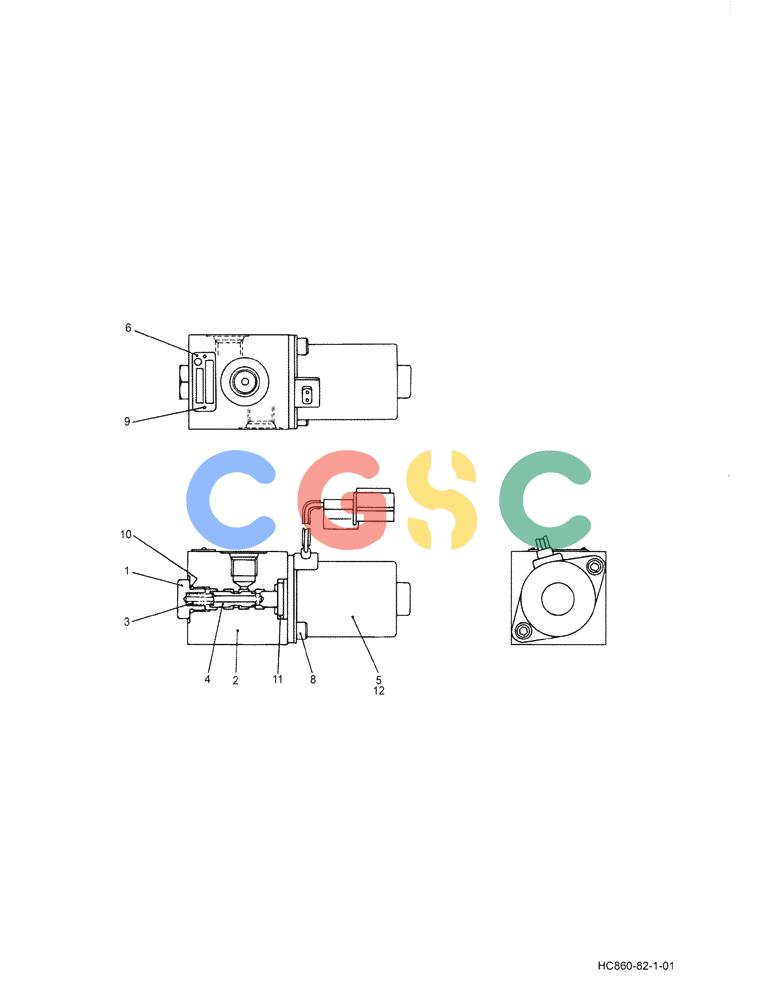

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (8.033[00]) - VALVE ASSEMBLY, SOLENOID (LE35V00001F1 & LE35V00001F2) (HC860-82) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
872 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LE35V00001F1 | [1] | VALVE | KOBAssembly, Solenoid |
| . . | LE35V00001F2 | [1] | VALVE | KOBAssembly, Solenoid |
| 1. | 2436U2159S3 | [1] | PLUG | KOB |
| 2. | YN35V00010S002 | [1] | BODY | KOB |
| 3. | 2436U2802S3 | [2] | SPRING | KOB |
| 5. | YN35V00010S005 | [1] | SOLENOID VALVE | KOBAssembly (F1 Only) |
| 6. | NA | [1] | NOT SERVICED | FORName Plate |
| 8. | EN35V00004S010 | [1] | BOLT | KOB |
| 10. | ZD11P01000 | [1] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 11. | ZD11P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20.6mm |
| 12. | EZ35V00004S015 | [1] | SOLENOID VALVE | KOBAssembly (F2 Only) |
