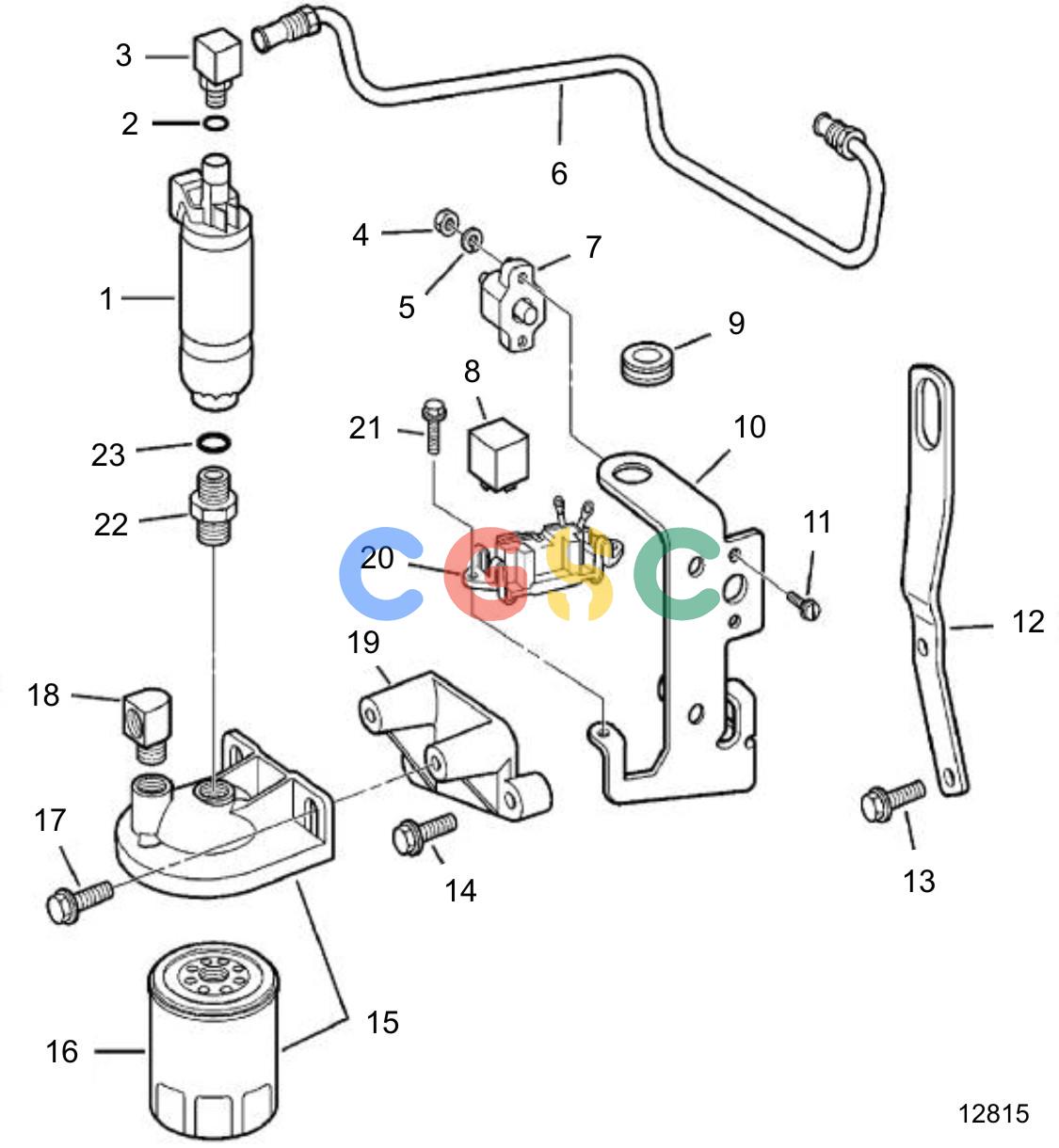

沃尔沃零件查询5.0GLPBYC; 5.0GiPBYCCE; 5.7GSPBYC; 5.7GSIPBYCCEFuel SystemFuel Pump and FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3857985
|
[1] |
Fuel pump
|
|
| 2. |
3850820
|
[2] |
O-ring, fuel line to fuel pump, carburetor
|
|
| 3. |
3853545
|
[1] |
Fitting, fuel line to fuel pump
|
|
| 4. |
3852064
|
[4] |
Nut, circuit breaker terminals
|
|
| 5. |
3852001
|
[2] |
Tab washer, circuit breaker
|
|
| 6. |
3857031
|
[1] |
Fuel pipe
|
|
| 7. |
3854162
|
[1] |
Automatic fuse, 12 amp, fuel pump
|
|
| 8. |
3857533
|
[1] |
Relay, fuel pump
|
|
| 9. |
3852481
|
[1] |
Grommet
|
|
| 10. |
3856438
|
[1] |
Bracket, fuel pump & relay mounting
|
|
| 11. |
3853620
|
[2] |
Hexagon screw, circuit breaker to bracket
|
|
| 12. |
3853311
|
[1] |
Bracket
|
|
| 13. |
3853557
|
[1] |
Flange screw, lift bracket & start leads to engine
|
|
| 14. |
3853326
|
[2] |
Flange screw, lift bracket, fuel pump & relay assy
|
|
| 15. |
3850861
|
[1] |
Kit
|
|
| 16. |
3851218
|
[1] |
Fuel filter
|
|
| 17. |
3853266
|
[2] |
Flange screw, fuel pump, support bracket, fuel filter
|
|
| 18. |
3852013
|
[1] |
Elbow, inlet, fuel filter cover
|
|
| 19. |
3853310
|
[1] |
Bracket, fuel pump, support bracket & filter
|
|
| 20. |
3852210
|
[1] |
Bracket, relay
|
|
| 21. |
3852208
|
[2] |
Screw, relay & cable assy to support bracket
|
|
| 22. |
3853493
|
[1] |
Fitting, fuel pump to fuel filter cover
|
|
| 23. |
3850819
|
[1] |
O-ring, fitting
|
|
