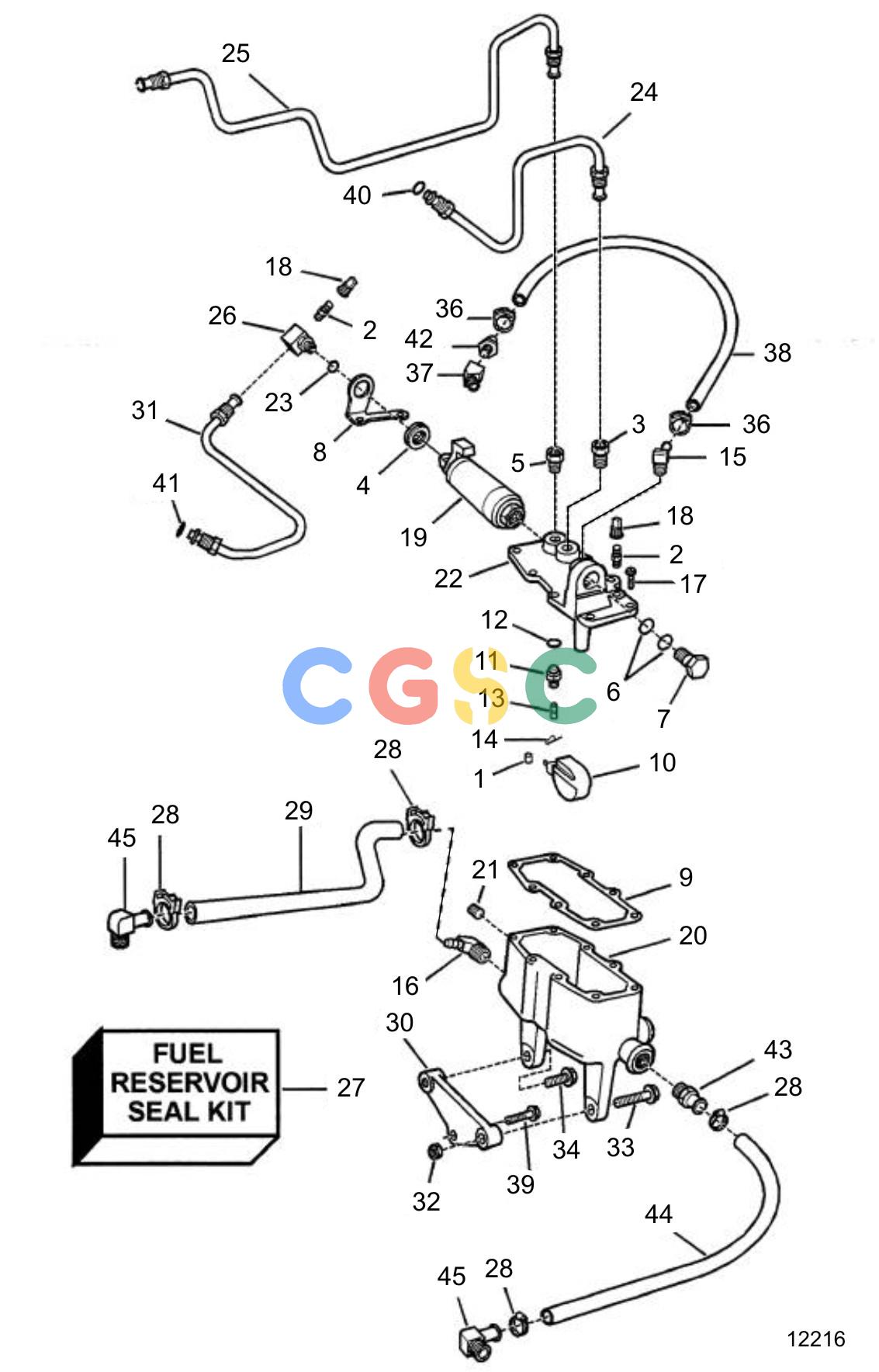

| 1. |
3852034
|
[1] |
Retainer, float pin
|
|
| 2. |
3854152
|
[2] |
Valve, reservoir assy, hp pump filting
|
|
| 3. |
3852462
|
[1] |
Fitting, fuel line to reservoir
|
|
| 4. |
3852481
|
[1] |
Grommet, fuel pump to cover
|
Reservoir assy
|
| 5. |
3852017
|
[1] |
Adapter, fuel line
|
LP pump to reservoir
|
| 6. |
3853642
|
[2] |
O-ring, retainer, fuel pump
|
|
| 7. |
3853572
|
[1] |
Retainer, fuel pump to cover
|
Reservoir assy
|
| 8. |
3853573
|
[1] |
Bracket, fuel pump grommet
|
Reservoir assy
|
| 9. |
3857728
|
[1] |
Gasket, cover
|
Reservoir assy
|
| 10. |
3853575
|
[1] |
Float, reservoir assy
|
|
| 11. |
3853576
|
[1] |
Spring seat, float needle
|
Reservoir assy
|
| 12. |
3853577
|
[1] |
Gasket, float needle seat
|
Reservoir assy
|
| 13. |
3853578
|
[1] |
Needle, float
|
Reservoir assy
|
| 14. |
3853579
|
[1] |
Clip, needle to float
|
Reservoir assy
|
| 15. |
3853597
|
[1] |
Elbow, vent, reservoir to intake
|
|
| 16. |
3852480
|
[1] |
Elbow, reservoir to thermostat hsg
|
|
| 17. |
3853606
|
[8] |
Screw, cover to reservoir
|
Reservoir assy
|
| 18. |
3853616
|
[2] |
Protective hat, pressure valve
|
|
| 19. |
3857650
|
[1] |
Fuel pump, high pressure
|
|
| 20. |
3854149
|
[1] |
Reservoir
|
|
| 21. |
3852167
|
[1] |
Plug, reservoir drain
|
|
| 22. |
3854405
|
[1] |
Cap, reservoir assy
|
|
| 23. |
3850820
|
[1] |
O-ring
|
|
| 24. |
3850278
|
[1] |
Fuel pipe, tBI to reservoir
|
|
| 25. |
3856534
|
[1] |
Fuel pipe, lp pump to reservoir
|
|
| 26. |
3854924
|
[1] |
Fitting, hp fuel pump
|
|
| 27. |
3850374
|
[1] |
Kit, fuel reservoir
|
|
| 28. |
3853794
|
[4] |
Hose clamp
|
|
| 29. |
943367
|
[1] |
Rubber hose, thermostat hsg to reservoir
|
|
| 30. |
|
|
|
|
| 31. |
3850277
|
[1] |
Fuel pipe, HP fuel pump to TBI
|
|
| 32. |
3850657
|
[1] |
Nut, reservoir & bracket to flywheel hsg
|
|
| 33. |
3852957
|
[1] |
Screw, reservoir & bracket to flywheel hsg
|
|
| 34. |
3853558
|
[1] |
Screw, reservoir to bracket
|
|
| 35. |
3852170
|
[1] |
Clamp, hose to pulse limiter
|
|
| 36. |
3852529
|
[1] |
Hose clamp, hose to pulse limiter
|
|
| 37. |
3852503
|
[1] |
Elbow, pulse limiter to adapter
|
|
| 38. |
3854870
|
[1] |
Hose, reservoir to pulse limiter
|
|
| 39. |
3853262
|
[1] |
Screw, bracket, flywheel hsg to engine
|
|
| 40. |
3850423
|
[1] |
O-ring, fuel line to fuel regulator
|
|
| 41. |
3850424
|
[1] |
O-ring, fuel line to fuel rail
|
|
| 42. |
3852225
|
[1] |
Deflection limiter
|
|
| 43. |
3856449
|
[1] |
Fitting, reservoir, port nipple
|
|
| 44. |
943367
|
[1] |
Rubber hose, reservoir to riser
|
|
| 45. |
3853598
|
[2] |
Elbow, riser, thermostat housing
|
|
