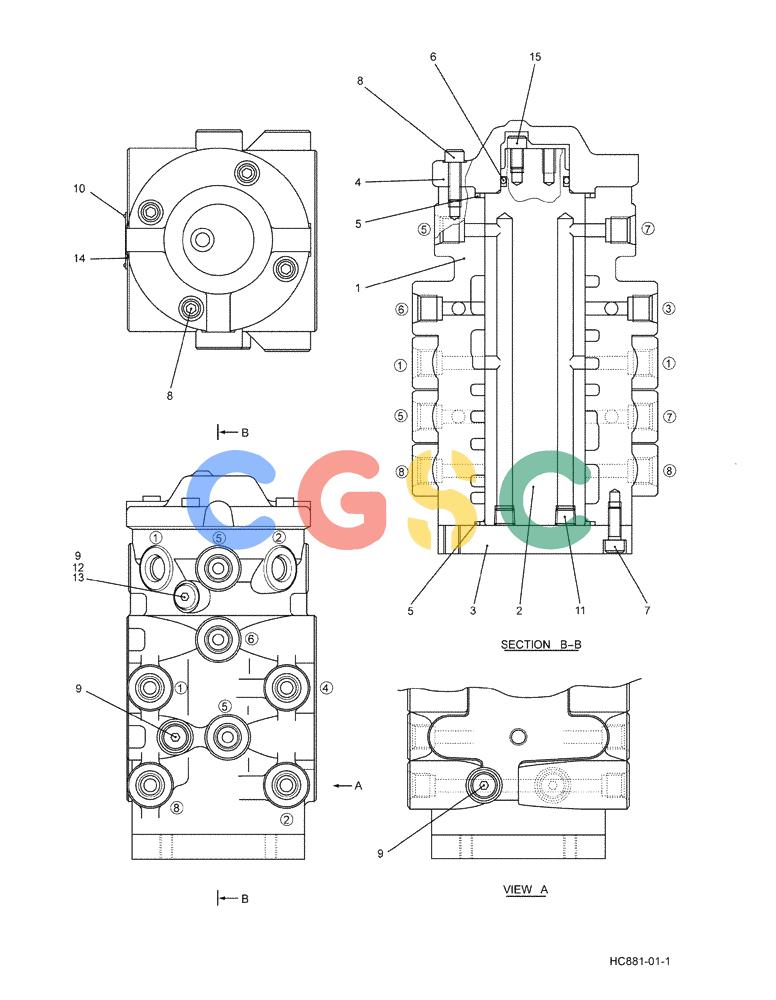

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (8.036[00]) - VALVE ASSEMBLY, SELECTOR (YN30V00113F1) (HC881) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
856 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00113F1 | [1] | VALVE | KOBAssembly, Selector |
| 1. | YN30V01033P1 | [1] | HOUSING | KOB |
| 2. | YN30V01037P1 | [1] | Spool | |
| 3. | YN30V01040P1 | [1] | COVER | KOBCover |
| 4. | YN30V01064P1 | [1] | COVER | KOB |
| 5. | ZD12G05500 | [2] | O-RING,3.1mm Thk x 54.4mm ID, 90 Duro | KOBO-Ring -- ID 54.40 ± 0.49 x OD 60mm |
| 6. | ZD11P02800 | [1] | O-RING | KOBID 27.70 ± 0.28 x OD 34mm |
| 7. | ZS28C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm |
| 8. | ZS28C06020 | [4] | SCREW,Hex Socket Head, M6 x 20mm | KOBM06x1.0x20mm |
| 9. | YN30V01027P1 | [4] | PLUG | KOB |
| 10. | 2420Z1036D3 | [2] | CLEVIS | KOB2.2x4.6mm |
| 11. | ZE82T02000 | [8] | PLUG | KOB1.25" PT |
| 12. | YN30V01015P1 | [1] | BALL | KOB |
| 13. | YN30V01028P1 | [1] | SPRING | KOB |
| 14. | YN22T00264P1 | [1] | Name Plate | |
| 15. | ZS28C06010 | [1] | CAPSCREW,Hex Socket Head, M6 x 10mm | KOBSCREW M06x1.0x10mm |
