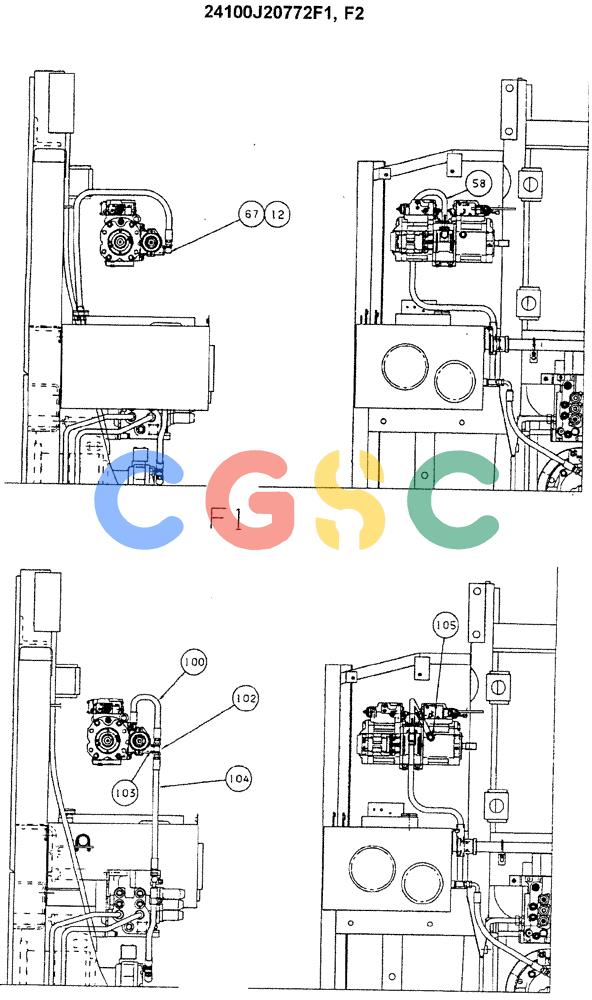

| . . | 24100J20772F1 | [1] | UPPER HYDRAULIC LINES (F1 ONLY) | |
| . . | 24100J20772F2 | [1] | UPPER HYDRAULIC LINES (REINFORCED PTO) (F2 ONLY) | |
| 1. | 2418T7002D3 | [1] | FLEXIBLE HOSE | KOB(L=490MM) |
| 2. | ZC16X09100 | [4] | CLIP | KOBClamp, Hose -- Min 80 x Max 101mm |
| 3. | 2418P51530 | [1] | TUBE | KOB(SUCTION) |
| 4. | ZD11G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOBID 74.40 ± 0.65 x OD 80mm |
| 5. | ZS23C12030 | [4] | SCREW,Hex Socket Head, M12 x 30mm | KOBM12x1.75x30mm |
| 6. | ZW22K12000 | [4] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 7. | 2436U2905F2 | [1] | CONTROL VALVE | KOBSee Figure 12-001 |
| 8. | ZW22X10000 | [23] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 9. | ZN13C12010 | [6] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 10. | ZW22X12000 | [13] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 11. | ZA23F28012 | [1] | HYD CONNECTOR | KOB(PF 3/4) |
| 12. | ZD12P02400 | [16] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm, (F1 Only) |
| 13. | 2416N5860 | [1] | BRACKET | BRACKET |
| 14. | ZS13C12050 | [5] | SCREW | KOBM12x1.75x50mm Superseded by part number: ZS18C12050 |
| 15. | ZS13C12065 | [3] | SCREW | KOB(M12X65MM) Superseded by part number: ZS18C12065 |
| 16. | 2418T17992D5 | [2] | RIGID TUBE | KOB |
| 17. | ZA23F22012 | [10] | HYD CONNECTOR | KOB3/4"PF - M30x1.50 x 46mm Long |
| 18. | 2418T22217 | [3] | TUBE | KOB |
| 19. | 2418P29561 | [1] | RIGID TUBE | KOB(BOOM) |
| 20. | 2432T2244 | [3] | CLAMP | KOBDouble -- 102x32x12mm (Ø23xØ23mm) |
| 21. | ZS13C10050 | [3] | SCREW | KOBM10x1.50x50mm Superseded by part number: ZS18C10050 |
| 22. | YM03HU1001P1 | [1] | TUBE | KOB(ARM) |
| 23. | YM03HU1002P1 | [1] | TUBE | KOB(ARM) |
| 24. | YM03HU1003P1 | [1] | TUBE | KOB(BUCKET) |
| 25. | YM03HU1004P1 | [1] | TUBE | KOB(BUCKET) Superseded by part number: 2418P29738 |
| 26. | 2418T17992D6 | [2] | TUBE | KOB |
| 27. | 2444Z2320 | [5] | ELEC CONNECTOR | KOB1"PF-M30x1.50x48mm Long |
| 28. | ZD12P02900 | [6] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 29. | 2416T28504 | [1] | SUPPORT | |
| 30. | ZS13C10025 | [10] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 31. | 2444Z2403D9 | [1] | FLEXIBLE HOSE | KOB(L=1130M) |
| 32. | ZA33F22012 | [1] | ELBOW | KOB |
| 33. | YM32HU1003P1 | [1] | SUPPORT | KOBSUPPORT |
| 34. | YM32HU1004P1 | [1] | SUPPORT | KOBSUPPORT |
| 35. | ZD11G04500 | [1] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOBID 44.40 ± 0.41 x OD 50mm |
| 36. | 2418P29608 | [1] | RIGID TUBE | KOB(RETURN) |
| 37. | YM32HU1001P1 | [1] | TUBE | KOB(RETURN) |
| 38. | YM32HU1002P2 | [1] | TUBE | KOB(RETURN) |
| 39. | R44P0089D1 | [3] | COUPLING | KOB(D=38.1MM) Superseded by part number: ZG15F03800 |
| 39-3. | R44P0089D1S3 | [2] | GASKET | KOB |
| 40. | R44P0089D8 | [2] | ELASTIC JOINT,101mm ID x 148.8mm OD x 165.1mm L | KOBCOUPLING (D=48.6MM) |
| 40-3. | R44P0089D8S3 | [2] | GASKET | KOB |
| 41. | 2436R393S4 | [1] | VALVE | KOBCHECK |
| 42. | 2444Z2285D9 | [1] | FLEXIBLE HOSE | KOB(L=630MM) Superseded by part number: 2444R1174D2 |
| 43. | 2444R1174D2 | [1] | FLEXIBLE HOSE | KOB(L=630M) |
| 44. | 2416T28508 | [1] | SUPPORT | |
| 45. | ZS13C12030 | [2] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 46. | 2420T2948D2 | [4] | U-BOLT | KOBM08x1.25x ID 38 x 72mm Long |
| 47. | ZN13C08007 | [20] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 48. | YW32HU1005P1 | [1] | SUPPORT | |
| 49. | 2420T2948D3 | [1] | U-BOLT | KOB(M8) |
| 50. | 2418T22216 | [3] | TUBE | KOB |
| 51. | YM30HU1003P1 | [1] | TUBE | KOB |
| 52. | 2444Z3719 | [2] | ELBOW | KOB |
| 53. | 2416T28505 | [1] | SUPPORT | |
| 54. | ZX21M08085 | [1] | FLEXIBLE HOSE | KOB850mm Long (33-29/64 in) |
| 55. | YM30HU1002P1 | [1] | RIGID TUBE | KOB |
| 56. | ZH22X08000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 57. | ZH52X08000 | [1] | TEE,30 Degree Fl, Male, PF 1/2" x 1/2" x 1/2", O-Ring | KOB(Incls. O-Ring 237-6008) |
| 58. | 2444R3144 | [1] | HOSE | KOB(F1 ONLY) |
| 59. | ZW13H10000 | [7] | WASHER | KOBID 11 x OD 24 x Th 3.2mm Superseded by part number: ZW16H10000 |
| 60. | ZX31M08080 | [1] | HOSE | KOB(L=800MM) |
| 61. | 2432T2242 | [1] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| 62. | ZW13H12000 | [6] | WASHER | KOB |
| 63. | 2444R949D4 | [6] | FLEXIBLE HOSE | KOB(L=2000MM) |
| 64. | 2444R1170D1 | [1] | FLEXIBLE HOSE | KOB(L=900MM) |
| 65. | 2444R1170D3 | [2] | FLEXIBLE HOSE | KOB(L=1100MM) |
| 66. | 2444R1170D5 | [1] | FLEXIBLE HOSE | KOB(L=1220MM) |
| 67. | 2444Z4644 | [1] | ELBOW | KOBELBOW (F1 ONLY) |
| 68. | ZD12G03000 | [2] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 69. | ZS13C10030 | [9] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 70. | 2414Z199D040 | [3] | PROTECTIVE SLEEVE | KOB400mm Long (15-3/4 in) |
| 71. | ZS13C10055 | [1] | SCREW | KOBM10x1.50x55mm Superseded by part number: ZS18C10055 |
| 72. | 2444Z4635 | [2] | ELBOW | KOB |
| 73. | ZC27X22012 | [1] | COLLAR | HITCLAMP |
| 74. | ZA33F15008 | [2] | ELBOW | KOB |
| 75. | ZW13H08000 | [10] | WASHER | KOB |
| 76. | ZA33F15006 | [2] | ELBOW | KOB |
| 77. | ZE72X12000 | [2] | PLUG | KOB(3/4" PF) (Incls. O-Ring ZD12P02400) |
| 78. | 2436U2623F2 | [1] | VALVE | KOBHOLDING (SEE CPM) |
| 79. | 2418P29569 | [1] | RIGID TUBE | KOB |
| 80. | YM03HU1005P1 | [1] | TUBE | KOB |
| 81. | 2444Z2418 | [1] | ELBOW | KOB(PF 1) |
| 82. | 2444Z2236 | [7] | HYD CONNECTOR | KOB(PF 3/4) |
| 83. | ZH22X12000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| 84. | ZX32M12120 | [1] | HOSE | KOB(L=1200MM) |
| 85. | 2418T24410D5 | [2] | SPACER | KOB |
| 86. | ZH42X12000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOB45° -- 3/4" PF (Incls. O-Ring 237-6012) |
| 87. | ZH32X12016 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 1", O-Ring | KOB(PF 1 - PF 3/4) |
| 88. | 2418T23927 | [1] | TUBE | KOB |
| 89. | YM30HU1006P1 | [1] | HOSE | KOB(L=1900MM) |
| 90. | ZX22M12045 | [1] | HOSE,19.05mm ID x 450mm L | KOB450mm Long (17-23/32 in) |
| 91. | 2414Z199D060 | [2] | PROTECTIVE SLEEVE | HITGUIDE (L=600MM) Superseded by part number: 2414Z199D60 |
| 92. | 2432Z290D6 | [4] | CLIP | KOBWire Ties -- 292mm Long Superseded by part number: PY01P01043D5 |
| 93. | ZN13C10008 | [1] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 94. | 2444Z3945 | [1] | TEE | KOB1/2" PF x 74mm Long (Incls. O-Ring ZD12P01800) |
| 95. | 2418P51546 | [1] | TUBE | KOB |
| 96. | 2418T26351 | [1] | FLANGE KIT | |
| 97. | 2444R3145 | [1] | HOSE | KOB |
| 98. | ZS13C12045 | [3] | SCREW | KOBM12x1.75x45mm Superseded by part number: ZS18C12045 |
| 99. | 2436U3057F1 | [1] | VALVE ASSY, CONTROL (SEE CPM) | VALVE ASSY, CONTROL (SEE CPM) |
| 100. | ZX21M08045 | [1] | HOSE | KOB450mm Long (17-23/32 in), (F2 Only) |
| 102. | ZH52X08000 | [1] | TEE,30 Degree Fl, Male, PF 1/2" x 1/2" x 1/2", O-Ring | KOB(Incls. O-Ring 237-6008), (F2 Only) |
| 103. | 2444Z4665 | [1] | CONNECTOR (F2 ONLY) | |
| 104. | ZX21M08085 | [1] | FLEXIBLE HOSE | KOB850mm Long (33-29/64 in), (F2 ONLY) |
| 105. | ZH32X08000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 1/2", O-Ring | KOBElbow, 90° -- 1/2"PT (Incls. O-Ring ZD12P01800), (F2 Only) |
| 106. | 2444Z2525 | [2] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| 107. | 2444Z2891 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 108. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
