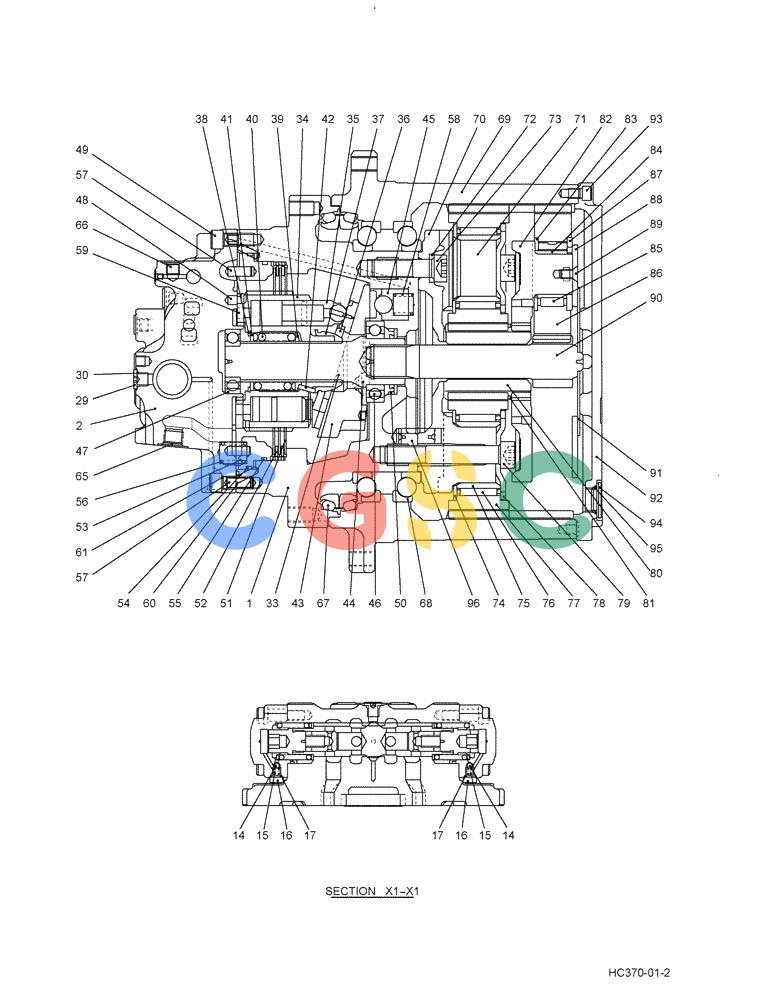

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (8.043[01]) - MOTOR ASSEMBLY, PROPELLING HC370 (LQ15V00020F1), FIGURE 2 OF 2 New Holland Constructuion_纽荷兰New Holland_工程机械

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (8.043[01]) - MOTOR ASSEMBLY, PROPELLING HC370 (LQ15V00020F1), FIGURE 2 OF 2 New Holland Constructuion

广数供应链运营团队, 15 02月, 2025，浏览： 694 次

Pos.	Part No	Qty	Parts name	Comments
. .	LQ15V00020F1	[1]	HYDRAULIC MOTOR	SMAssembly, Propel -- Figure 2 of 2 Superseded by part number:
1.	NA	[1]	NOT SERVICED	FORFlange
7.	ZD12P02100	[2]	O-RING,2.4mm Thk x 20.8mm ID, 90 Duro	KOBO-Ring -- ID 20.80 ± 0.23 x OD 25mm
8.	2436U1027S203	[2]	SEAT/SLOT	KOB
9.	LQ15V00020S009	[2]	SPRING	SMSpring
10.	2436U1027S205	[2]	SEAT/SLOT	KOB
12.	ZD12G04500	[2]	O-RING,44.40mm ID x 50.60mm OD x 3.10mm	KOBID 44.40 ± 0.41 x OD 50mm
13.	ZS23C12040	[8]	SCREW,Hex Socket Head, M12 x 40mm	KOBM12x1.75x40mm
14.	2436U281S37	[2]	BALL	KOB
15.	2441U792S18	[2]	SPRING	SM
16.	2441U792S19	[2]	PLUG	SM
17.	ZD12P00800	[2]	O-RING,1.9mm Thk x 7.8mm ID, 90 Duro	KOBID 07.80 ± 0.16 x OD 11mm
18.	YN23V00003F1	[2]	PRESSURE RELIEF VALVE	KOBSee Figure 8.043.01
22.	LQ15V00007S027	[1]	SPRING	KOB
23.	2441U792S141	[1]	PLUG	KOB
24.	ZD12P01800	[2]	O-RING	KOBID 17.80 ± 0.21 x OD 22mm
25.	LQ15V00007S030	[1]	GUIDE PIN	KOB
26.	LQ15V00007S031	[1]	PLUG	KOB
30.	ZD12P01100	[4]	O-RING	KOB
33.	LQ15V00007S042	[1]	SHAFT	KOB
38.	YN15V00005S114	[1]	SNAP RING	KOB
39.	YN15V00005S115	[1]	SPRING SEAT	KOB
40.	YN15V00005S116	[1]	SPRING	KOBSpring
41.	YN15V00005S117	[1]	RING	KOB
42.	2441U792S119	[3]	PIN	KOB
43.	LQ15V00020S043	[1]	PLATE	SMPlate
44.	2441U792S110	[2]	BALL	KOB
46.	LQ15V00007S055	[1]	BALL BEARING	KOB
47.	LQ15V00007S056	[1]	BALL BEARING	KOB
48.	LQ15V00020S048	[1]	PIN	SMPin
49.	ZS23C14035	[10]	SCREW,Hex Socket Head, M14 x 35mm	KOBM14x2.0x35mm
50.	LQ15V00020S050	[1]	SEAL	SMSeal, Oil
51.	LQ15V00020S051	[3]	PLATE	SMDisk plate Superseded by part number: LQ15V00031R940
52.	2441U983S126	[2]	PLATE	KOB
53.	LQ15V00020S053	[1]	PISTON	SMBrake Biston
54.	2441U984S42	[1]	O-RING	KOB
55.	2441U983S130	[1]	O-RING	KOB
56.	2441U792S130	[6]	SPRING	KOB
57.	YN15V00005S128	[4]	PIN	KOBPin
58.	YN15V00005S139	[2]	SPRING	KOB
59.	LQ15V00020S059	[1]	PLATE	SMValve plate
60.	ZD12P01000	[4]	O-RING	KOBID 09.80 ± 0.17 x OD 13mm
61.	2441U802S30	[1]	O-RING	KOB
67.	LQ15V00020S067	[2]	SEAL	SMSeal, Floating
68.	LQ15V00007S077	[2]	BEARING	KOB
71.	LQ15V00020S071	[1]	RUBBER RING	SMHolder
72.	LQ15V00007S081	[8]	FRICTION WASHER	KOB
73.	LQ15V00007S082	[8]	SCREW	KOB
74.	LQ15V00020S074	[4]	PLATE	SMThrust Plate
75.	LQ15V00007S084	[4]	RACE	KOB
76.	LQ15V00020S076	[4]	NEEDLE BEARING	SMNeedle Bearing
77.	LQ15V00007S086	[4]	DRIVEN GEAR	KOB
78.	LQ15V00020S078	[4]	PLATE	SMThrust Plate
79.	LQ15V00007S088	[4]	SCREW	KOB
80.	LQ15V00020S080	[1]	GEAR	SMSun Gear
81.	LQ15V00007S090	[1]	RING	KOB
82.	LQ15V00020S082	[1]	CARRIER	SMHolder
83.	LQ15V00007S092	[3]	PLATE	KOB
84.	LQ15V00020S084	[3]	RACE	SMInner Race
85.	LQ15V00020S085	[3]	NEEDLE BEARING	SMNeedle Bearing
86.	LQ15V00020S086	[3]	GEAR	SMGear
87.	LQ15V00007S096	[3]	PLATE	KOB
88.	LQ15V00020S088	[1]	PLATE	SMThrust
89.	LQ15V00007S098	[3]	SCREW	KOB
90.	LQ15V00020S090	[1]	GEAR	SMDrive
92.	LQ15V00007S101	[1]	COVER	KOB
93.	ZS28C10016	[16]	SCREW,Hex Socket Head, M10 x 16mm	KOBM10x1.50x16mm
94.	LQ15V00007S103	[3]	PLUG	KOB
95.	ZD12P02400	[3]	O-RING	KOBID 23.70 ± 0.24 x OD 30mm
96.	LQ15V00007S105	[4]	PIN	KOB
K.	LQ15V00020R100	[1]	KIT	SMKit Repair, Contains Items 7, 12, 17, 24, 30, 50, 54, 55, 60 & 61
K.	LQ15V00020R200	[1]	KIT	SMRepair, Contains Items 67 & 95 Superseded by part number: LQ15V00031R200
K.	LQ15V00020R300	[1]	KIT	SMKit Repair, Contains Items 1 & 45
K.	LQ15V00020R400	[1]	KIT	SMKit Repair, Contains Items 2-7, 19-21 & 28-32
K.	2441U792S13	[1]	CAP	KOBKit Repair, Contains Items 11-17
K.	LQ15V00020R600	[1]	BLOCK	KOBKit Repair, Contains Items 34-42
K.	LQ15V00007R700	[1]	REPAIR KIT	KOBContains Items 70
K.	LQ15V00007R800	[1]	REPAIR KIT	KOBContains Items 91
K.	LQ15V00020R900	[1]	REDUCER	KOBKit Repair, Contains Items 67-78 & 79-96
