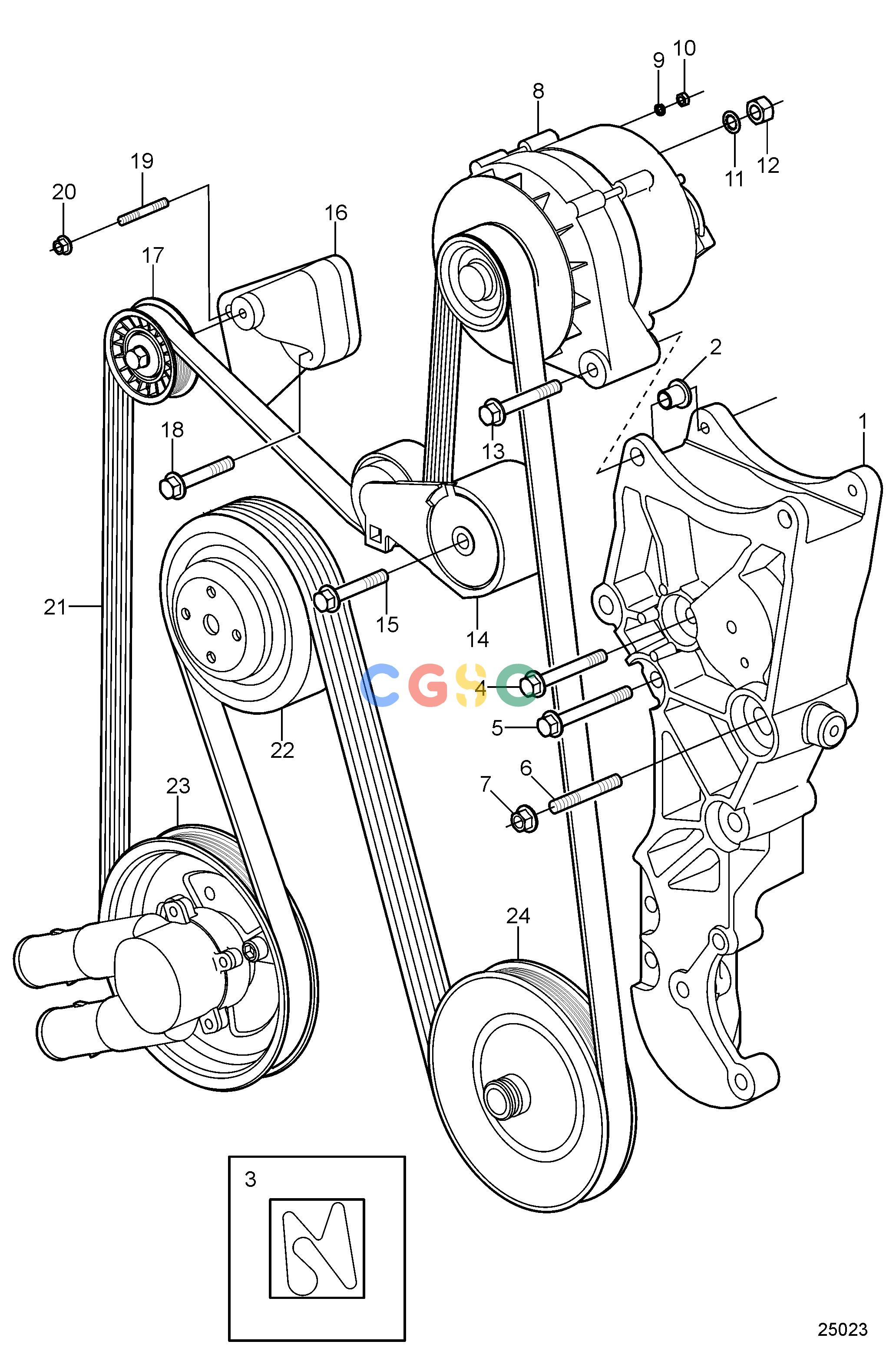

沃尔沃零件查询5.0GLPEFS; 5.0GiPEFS; 5.7GSPEFS; 5.7GSIPEFSElectrical SystemSerpentine Belt and AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
975 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3860080
|
[1] |
Bracket
|
|
| 2. |
3863175
|
[2] |
Bushing
|
|
| 3. |
3860383
|
[1] |
Decal
|
|
| 4. |
3860281
|
[1] |
Flange screw
|
|
| 5. |
3853367
|
[2] |
Flange screw
|
|
| 6. |
3860477
|
[2] |
Stud
|
|
| 7. |
3853404
|
[2] |
Nut
|
|
| 8. |
3860082
|
[1] |
Alternator
|
|
| 9. |
3852001
|
[2] |
Tab washer
|
|
| 10. |
3852185
|
[3] |
Nut
|
|
| 11. |
3852520
|
[1] |
Washer
|
|
| 12. |
3852099
|
[1] |
Nut
|
|
| 13. |
3853367
|
[2] |
Flange screw
|
|
| 14. |
3860079
|
[1] |
Belt tensioner
|
|
| 15. |
3860281
|
[1] |
Flange screw
|
|
| 16. |
3860078
|
[1] |
Bracket
|
|
| 17. |
3860201
|
[1] |
Idler pulley
|
|
| 18. |
3860285
|
[1] |
Flange screw
|
|
| 19. |
3860286
|
[2] |
Stud
|
|
| 20. |
3853404
|
[2] |
Nut
|
|
| 21. |
3860086
|
[1] |
Belt
|
|
| 22. |
|
|
|
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
