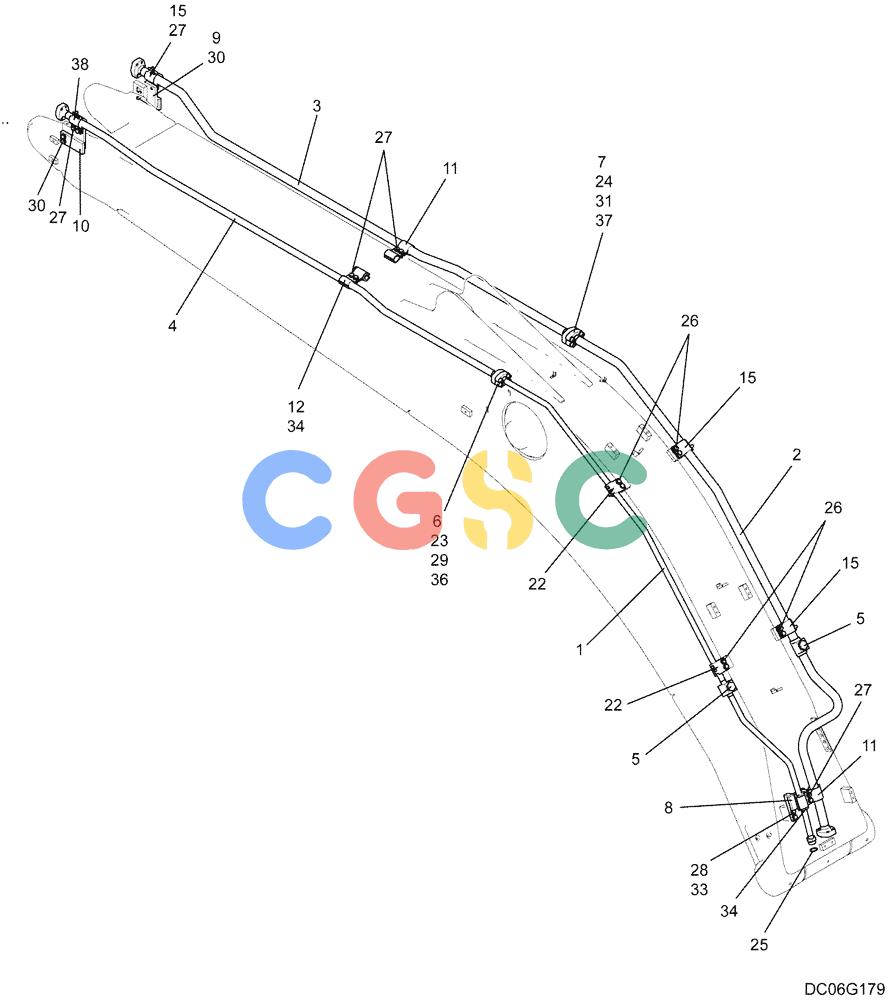

| 1. | YN42H02611P1 | [1] | TUBE,27.2 mm OD | KOB2254.5mm Long (88-3/4 in) |
| 2. | YN42H02612P1 | [1] | TUBE,42.7 mm OD | KOB2248.8mm Long (88-17/32 in) |
| 3. | YN42H02613P1 | [1] | TUBE,42.7 mm OD x 3779.2, 280.3 mm Length | KOB3779.2mm Long (148-25/32 in) |
| 4. | YN42H02614P1 | [1] | TUBE,34.0 mm OD x 3779.2, 280.3 mm Length | KOB3779.2mm Long (148-25/32 in) |
| 5. | YN42H02582P1 | [2] | PLUG | KOB1" PFx31mm Long (Incls. O-Ring ZD12P02900) |
| . . | ZD12P02900 | [1] | O-RING | KOB(Part of YN42H02582P1), ID 28.70 ± 0.29 x OD 35mm, Not Shown |
| 6. | ZE13X16000 | [2] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 7. | ZE13X20001 | [2] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) Superseded by part number: ZE13X20000 |
| 8. | YN42H02405P1 | [1] | BRACKET | KOB Superseded by part number: YN42H02405P2 |
| 9. | YN42H02409P1 | [1] | BRACKET | KOB |
| 10. | YN42H02410P1 | [1] | BRACKET | KOB |
| 11. | YN42H02348P1 | [4] | CLAMP | KOBDouble -- 145.5x65x23.5mm |
| 12. | YN42H02351P1 | [2] | CLAMP | KOB Superseded by part number: 84528894 |
| 15. | YN42H02363P1 | [6] | CLAMP,46mm ID, J Type | KOBØ23x65x52mm |
| 22. | YN42H02355P1 | [4] | CLAMP | KOB Superseded by part number: 84528898 |
| 23. | ZD12P03400 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 24. | ZD12P03800 | [1] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 25. | ZD12A02100 | [1] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
| 26. | ZM73C12030 | [8] | BOLT,M12x30mm - Course Thread | KOBM12x1.75x30mm (Incls. Washer) |
| 27. | ZM73C12035 | [10] | BOLT,M12x35mm - Course Thread | KOBM12x1.75x35mm (Incls. Washer) |
| 28. | ZS18C12050 | [2] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 29. | ZS28C12050 | [4] | CAPSCREW,Hex Socket Head, M12 x 50mm | KOBSCREW M12x1.75x50mm |
| 30. | ZM73C12040 | [4] | BOLT,M12x40mm - Course Thread | KOBM12x1.75x40mm (Incls. Washer) |
| 31. | ZS28C14050 | [4] | CAPSCREW,Hex Socket Head, M14 x 50mm | KOBSCREW M14x2.0x50mm |
| 33. | ZW16H12000 | [2] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 34. | YN42H02319P1 | [2] | BUSHING,27.2mm ID x 34mm OD x 83mm L | SMID 27.20 x OD 34 x 83mm Long Superseded by part number: 84354627 |
| 36. | ZW26K12000 | [4] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
| 37. | ZW26K14000 | [4] | LOCK WASHER | KOBID 14 x OD 21.8 x Th 3.5mm |
| 38. | YN42H02357P1 | [2] | CLAMP,37mm ID, J Type | KOBØ18.5x65x52mm Superseded by part number: 87343093 |
