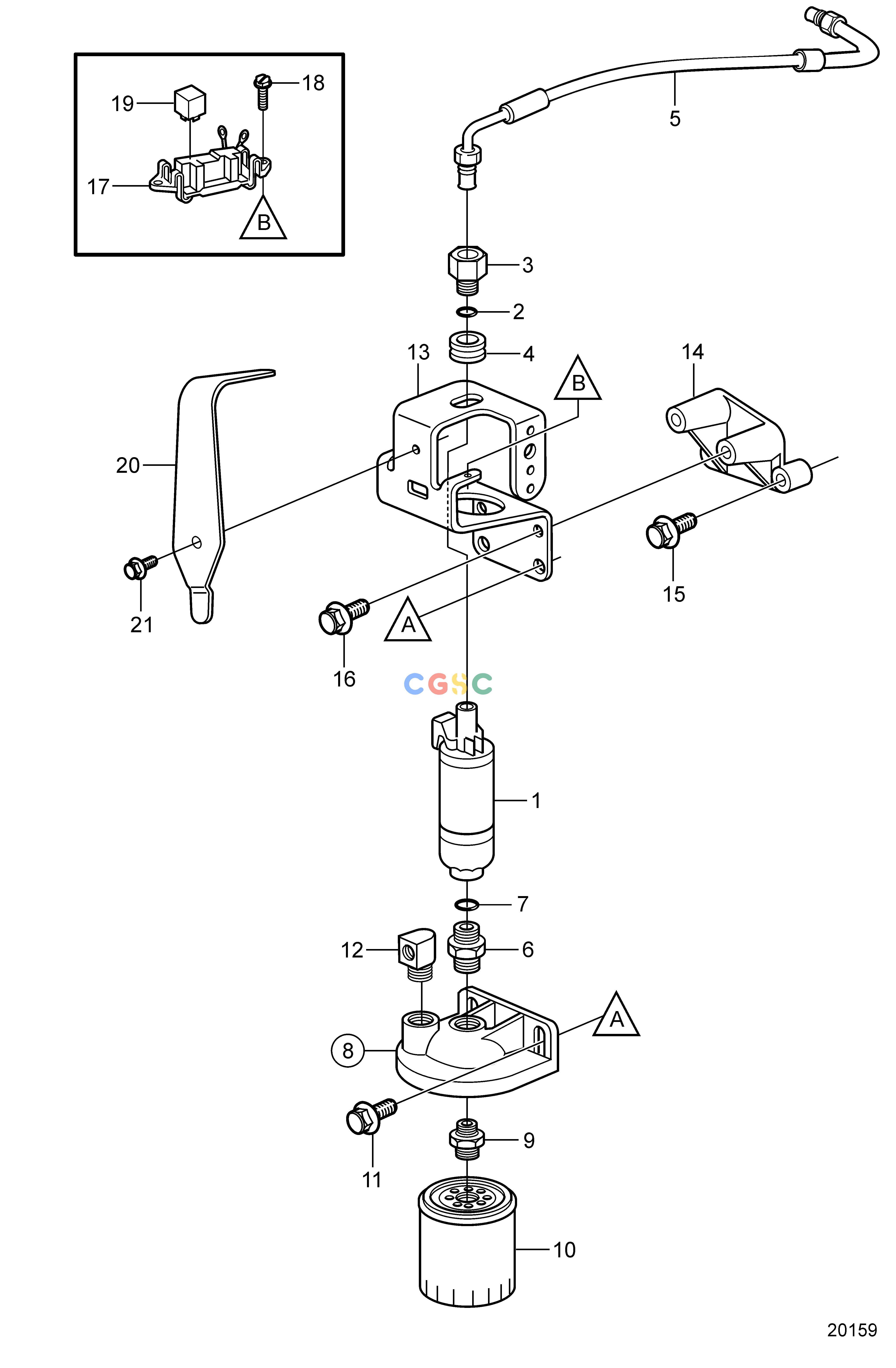

沃尔沃零件查询5.0GLPEFS; 5.0GiPEFS; 5.7GSPEFS; 5.7GSIPEFSFuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
613 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3858261
|
[1] |
Fuel pump
|
|
| 2. |
3850820
|
[1] |
O-ring
|
|
| 3. |
856954
|
[1] |
Nipple
|
|
| 4. |
3858345
|
[1] |
Grommet
|
|
| 5. |
3858220
|
[1] |
Fuel pipe
|
|
| 6. |
3853493
|
[1] |
Fitting
|
|
| 7. |
3850819
|
[1] |
O-ring
|
|
| 8. |
3850861
|
[1] |
Kit
|
|
| 9. |
|
|
|
|
| 10. |
3862228
|
[1] |
Fuel filter
|
|
| 11. |
3853557
|
[2] |
Flange screw
|
|
| 12. |
3852013
|
[1] |
Elbow
|
|
| 13. |
3858233
|
[1] |
Bracket
|
|
| 14. |
3853310
|
[1] |
Bracket
|
|
| 15. |
3853326
|
[2] |
Flange screw
|
|
| 16. |
3853266
|
[2] |
Flange screw
|
|
| 17. |
3852210
|
[1] |
Bracket
|
Included in engine harness
|
| 18. |
3852208
|
[2] |
Screw
|
|
| 19. |
3857533
|
[1] |
Relay
|
Included in engine harness.
|
| 20. |
3858255
|
[1] |
Bracket
|
|
| 21. |
3857938
|
[1] |
Screw
|
|
