沃尔沃零件查询5.0GLPEFS; 5.0GiPEFS; 5.7GSPEFS; 5.7GSIPEFSIgnitionIgnitionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
827 次

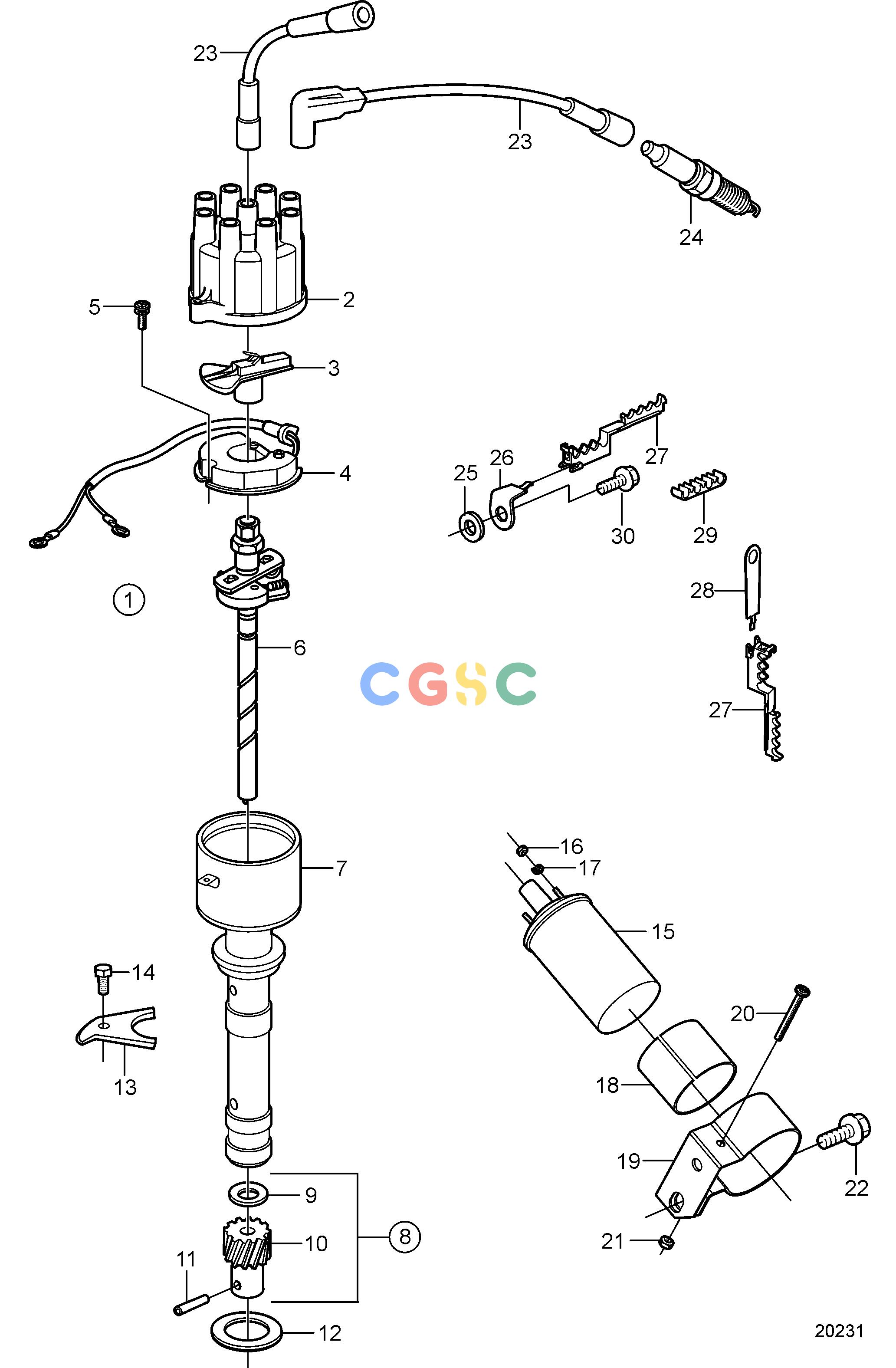

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3854043
|
[1] |
Distributor
|
|
| 2. |
3853815
|
[1] |
Distributor cap
|
|
| 3. |
3853801
|
[1] |
Rotor
|
|
| 4. |
3854077
|
[1] |
Module
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
3853888
|
[1] |
Gear
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
3852109
|
[1] |
Gasket
|
|
| 13. |
3852108
|
[1] |
Clamp
|
|
| 14. |
3856129
|
[1] |
Bolt
|
|
| 15. |
3852217
|
[1] |
Coil
|
|
| 16. |
3852064
|
[2] |
Nut
|
|
| 17. |
3852001
|
[2] |
Tab washer
|
|
| 18. |
3853236
|
[1] |
Spacer
|
|
| 19. |
3852218
|
[1] |
Clamp
|
|
| 20. |
3852126
|
[1] |
Screw
|
|
| 21. |
3852079
|
[1] |
Nut
|
|
| 22. |
3860163
|
[1] |
Flange screw
|
|
| 23. |
3857166
|
[1] |
Cable kit
|
|
| 24. |
3851857
|
[2] |
Spark plug kit
|
4 pack
|
| 24. |
3851858
|
[1] |
Spark plug kit
|
24 pack
|
| 25. |
980933
|
[2] |
Washer
|
|
| 26. |
3856052
|
[2] |
Bracket
|
|
| 27. |
3852619
|
[4] |
Retainer
|
|
| 28. |
3856053
|
[2] |
Bracket
|
|
| 29. |
3852491
|
[2] |
Retainer
|
|
| 30. |
3853419
|
[2] |
Flange screw
|
|
