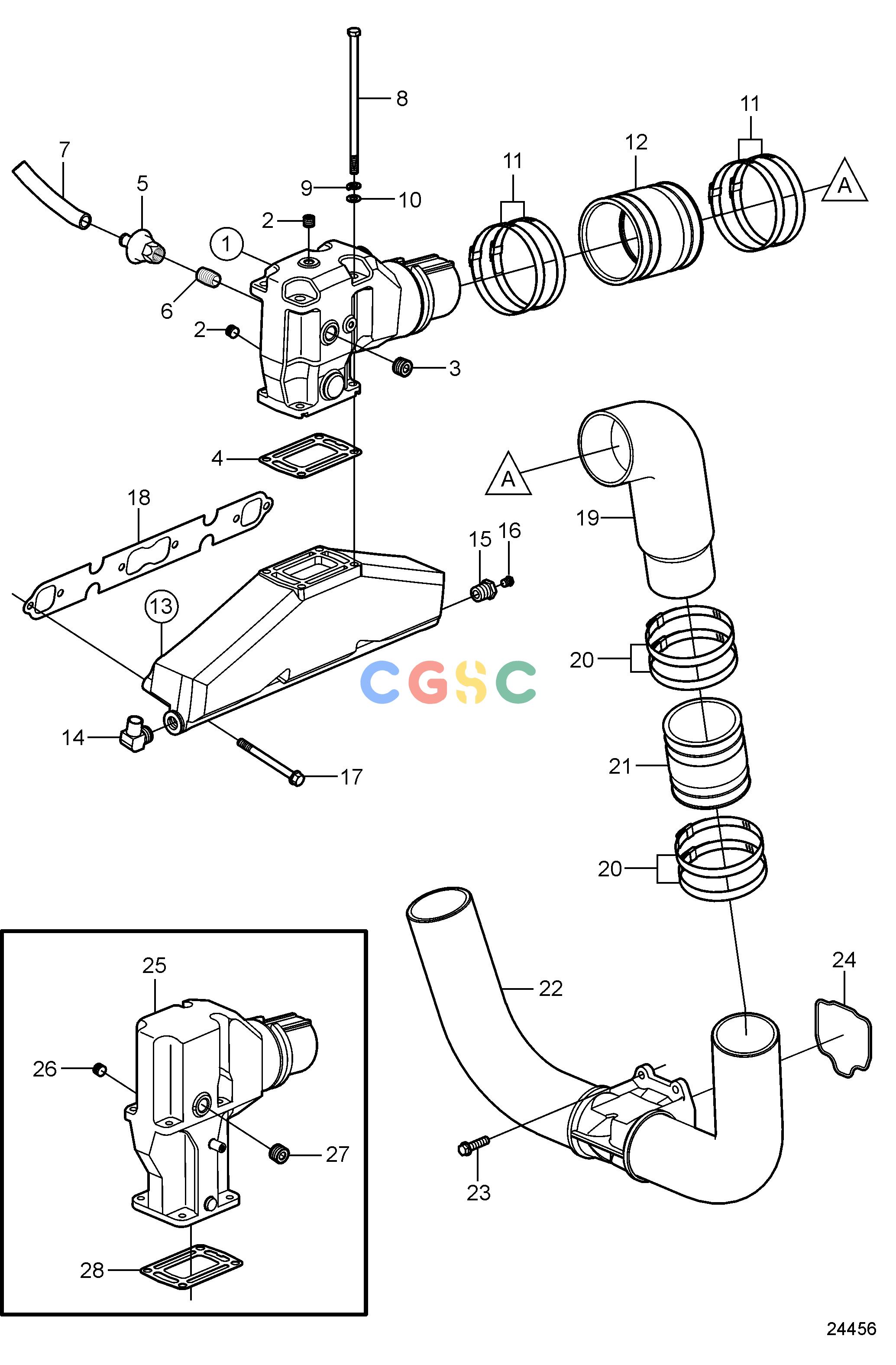

沃尔沃零件查询5.0GLPEFS; 5.0GiPEFS; 5.7GSPEFS; 5.7GSIPEFSIntake and Exhaust SystemExhaustEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
345 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3857944
|
[2] |
Elbow
|
Repl by 3863061
|
| 2. |
3850740
|
[4] |
Plug
|
|
| 3. |
3850999
|
[4] |
Plug
|
|
| 4. |
3850496
|
[2] |
Gasket
|
Repl by 3863191
|
| 4. |
3863191
|
[1] |
Kit
|
|
| 5. |
3857761
|
[1] |
Valve
|
|
| 6. |
3857763
|
[2] |
Fitting
|
|
| 7. |
3858840
|
[2] |
Hose
|
|
| 8. |
3852830
|
[8] |
Screw
|
|
| 9. |
3852002
|
[8] |
Tab washer
|
|
| 10. |
3852058
|
[8] |
Washer
|
|
| 11. |
3853860
|
[8] |
Hose clamp
|
|
| 12. |
3852696
|
[2] |
Hose
|
|
| 13. |
3857723
|
[2] |
Exhaust manifold
|
|
| 14. |
3852538
|
[2] |
Elbow
|
|
| 15. |
3858291
|
[2] |
Reduction sleeve
|
|
| 16. |
3850802
|
[2] |
Plug
|
|
| 17. |
3857184
|
[12] |
Flange screw
|
|
| 18. |
3852468
|
[2] |
Gasket
|
|
| 19. |
3852738
|
[2] |
Exhaust pipe
|
|
| 20. |
3853791
|
[8] |
Hose clamp
|
|
| 21. |
3852742
|
[2] |
Hose
|
|
| 22. |
3858873
|
[1] |
Exhaust pipe
|
|
| 23. |
3855472
|
[4] |
Flange screw
|
|
| 24. |
3587651
|
[1] |
Kit
|
|
| 25. |
3862904
|
[1] |
Elbow
|
3.00'' (76mm)
|
| 26. |
3850740
|
[1] |
Plug
|
|
| 27. |
3850999
|
[1] |
Plug
|
|
| 28. |
3863191
|
[1] |
Kit
|
|
