纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (5.029[00]) - HYDRAULIC LINES, ARM (ROTATION) (YN43H00227F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
526 次

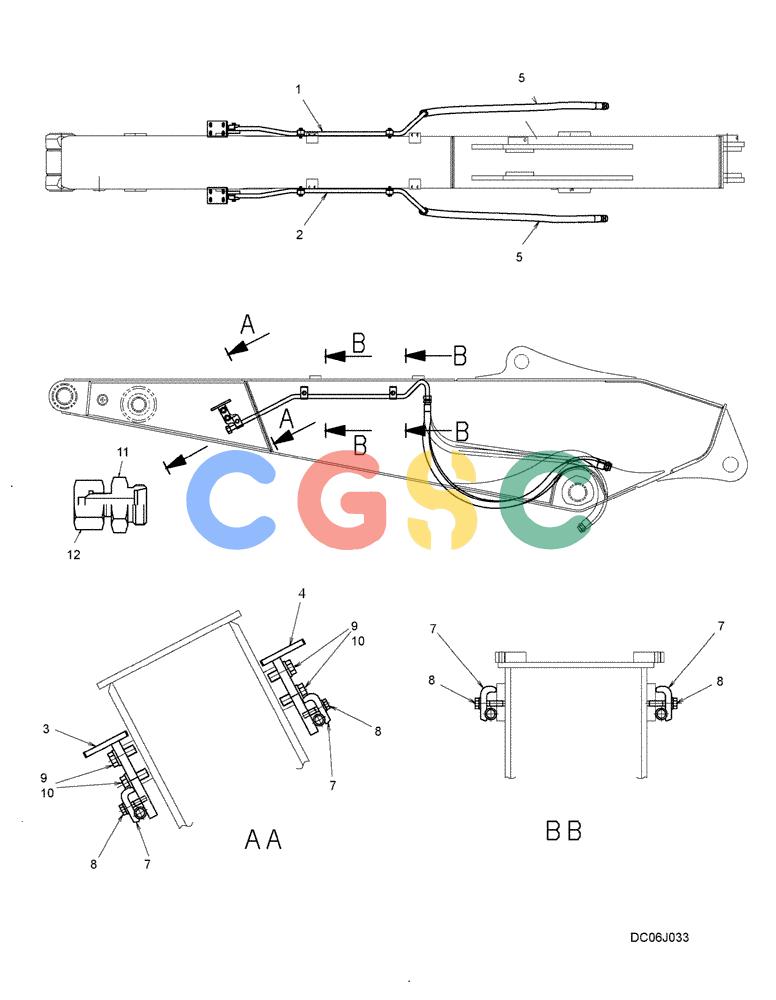

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN43H01675P1 | [1] | TUBE,22.0 mm OD | KOBTube |
| 2. | YN43H01676P1 | [1] | TUBE,22.0 mm OD | KOBTube |
| 3. | YN43H01669P1 | [1] | BRACKET | KOBBracket |
| 4. | YN43H01671P1 | [1] | BRACKET | KOBBracket |
| 5. | ZX58N10155 | [2] | HOSE | KOB1550mm Long (61 in) |
| 6. | ZA82P22000 | [1] | PLUG | KOB |
| 7. | ZC26X22011 | [6] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 8. | ZM73C10045 | [6] | BOLT,M10x45mm - Course Thread | KOBBolt -- M10x1.50x45mm (Incls. Washer) |
| 9. | ZS18C16040 | [4] | SCREW,Hex, M16 x 40mm | KOBM16x2.0x40mm |
| 10. | ZW16H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 11. | 2444T2657D1 | [2] | HYD CONNECTOR | KOBM30x1.5mm - 3/4"-16UNF x 46mm Long |
| 12. | 2420T4405 | [2] | PLUG | KOB3/4"-16UNF x 22mm Long |
