纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (5.030[00]) - HYDRAULIC LINES, SWIVEL (HIGH & WIDE) (YN19HU0001F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
720 次

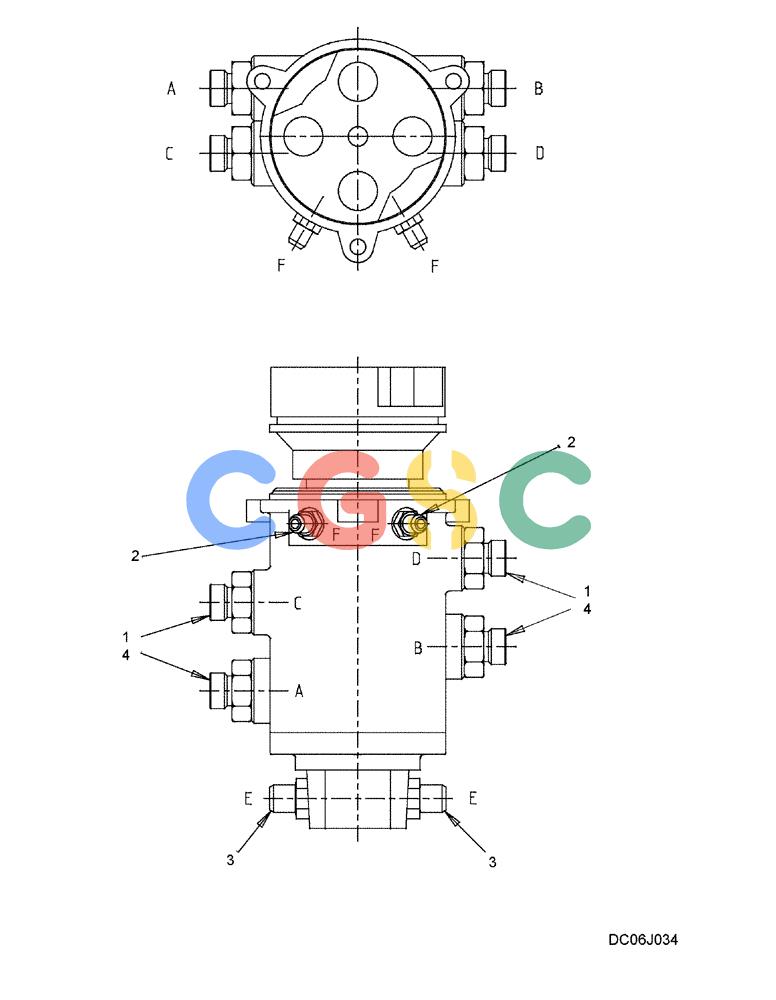

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ZG23F12016 | [4] | HYD CONNECTOR | KOB1 3/16" 12UN-1" PT x 48mm Long (Incls. O-Ring 237-6016) |
| . . | 237-6016 | [1] | O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro | CAS(Part of ZG23F12016), SAE No. 16-1, Not Shown Superseded by part number: 72186238, 167268 |
| 2. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring 237-6004) |
| . . | 237-6004 | [1] | O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro | CAS(Part of ZH22X04000), SAE No. 4-1, Not Shown Superseded by part number: 72186131, 165202 |
| 3. | ZH22X08000 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| . . | ZD12P01800 | [1] | O-RING | KOB(Part of ZH22X08000), ID 18.77 ± 0.12 x OD 22.33mm, Not Shown |
| 4. | ZD12A01800 | [4] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
