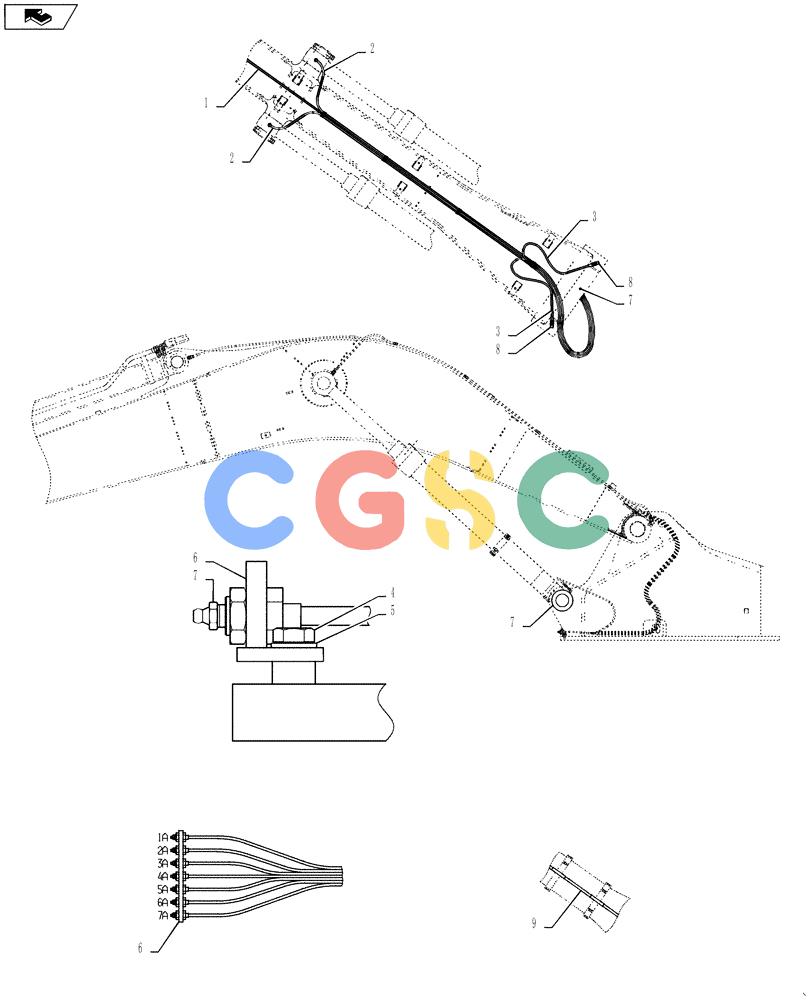

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (03-004[00]) - BOOM GROUP - LUBE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
773 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2444R1117D525 | [1] | HOSE,6.40mm ID x 5250mm L | KOB5250mm Long |
| 2. | 2444R1117D465 | [2] | FLEXIBLE HOSE,6.40mm ID x 4650mm L | KOB Superseded by part number: 2444R1117D470 |
| 3. | 2444R1117D280 | [2] | HOSE,6.40mm ID x 2800mm L | KOB |
| 4. | ZS18C10040 | [2] | SCREW,Hex, M10 x 40mm | KOB |
| 5. | ZW16H10000 | [2] | WASHER | KOB |
| 6. | YN02BU1011P1 | [1] | SUPPORT | KOB |
| 7. | ZG91S02000 | [1 0] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 8. | ZH32Z04000 | [1] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
