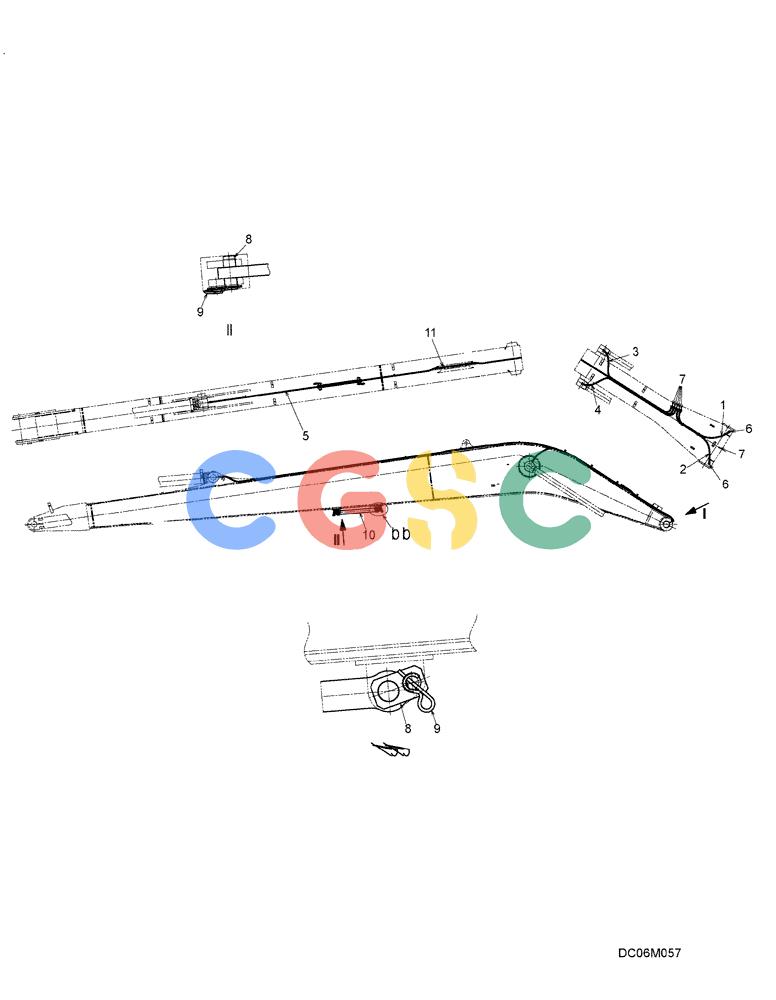

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (03-005[00]) - BOOM GROUP - LUBE (LONG REACH) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
770 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2444R1117D080 | [1] | HOSE,6.4mm ID x 800mm L | KOB |
| 2. | 2444R1117D084 | [1] | HOSE,6.40mm ID x 840mm L | KOB Superseded by part number: 2444R1117D085 |
| 3. | 2444R1117D250 | [1] | HOSE,6.40mm ID x 2500mm L | KOB1950mm Long (76-49/64 in) Superseded by part number: HX21E04250DY |
| 4. | 2444R1117D260 | [1] | HOSE,6.4mm ID x 2600mm L | KOB2050mm Long (80-45/64 in) |
| 5. | 2444R1117D605 | [1] | HOSE,6.35mm ID x 6050mm L | KOB6050mm Long (238-11/64 in) |
| 6. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of ZH32Z04000), ID 10.8mm x OD 13.2mm, Not Shown |
| 7. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 8. | 2419T4696 | [2] | PIN | KOBOD 40 x 90mm Long Superseded by part number: LQ02B01300P1 |
| 9. | 2419T3095 | [2] | COTTER PIN | KOBLocking |
| 10. | YN02B01098P1 | [1] | LINK | KOB |
| 11. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
