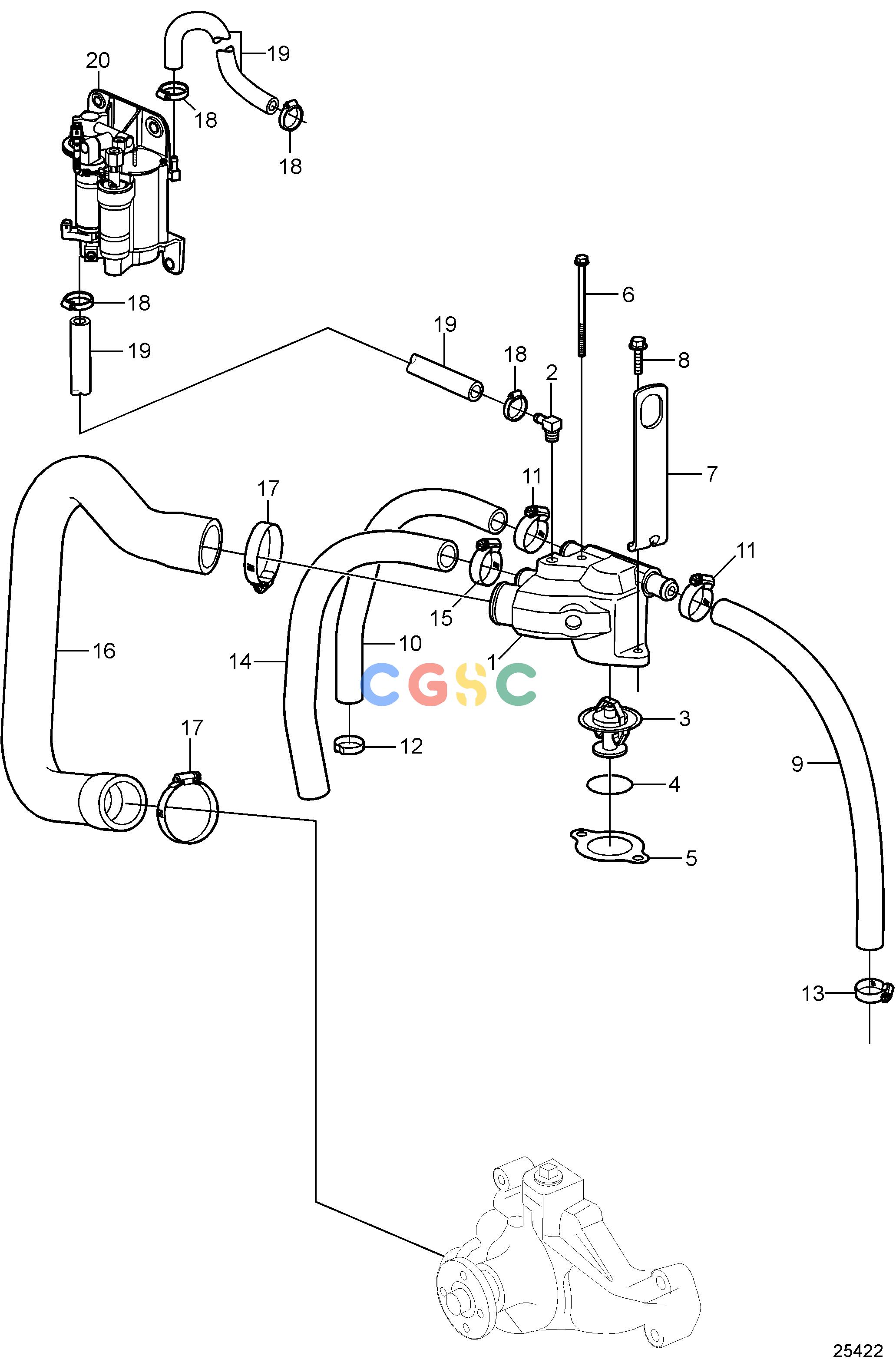

沃尔沃零件查询5.0GXi-270-RCooling SystemSeawater System, Thermostat Housing to ExhaustEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
945 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3589553
|
[1] |
Thermostat housing
|
|
| 2. |
3853597
|
[1] |
Elbow
|
|
| 3. |
3587597
|
[1] |
Thermostat
|
|
| 4. |
983944
|
[1] |
O-ring
|
|
| 5. |
3852111
|
[1] |
Gasket
|
|
| 6. |
968842
|
[1] |
Flange screw
|
|
| 7. |
3593503
|
[1] |
Bracket
|
|
| 8. |
946671
|
[1] |
Flange screw
|
|
| 9. |
21545765
|
[1] |
Hose
|
Exhaust, Port
|
| 10. |
3862536
|
[1] |
Hose
|
Exhaust, Starboard
|
| 11. |
3863439
|
[2] |
Hose clamp
|
|
| 12. |
982715
|
[1] |
Hose clamp
|
|
| 13. |
982715
|
[1] |
Hose clamp
|
|
| 14. |
3817817
|
[1] |
Hose
|
Sea water pump
|
| 15. |
3863441
|
[1] |
Hose clamp
|
|
| 16. |
3862523
|
[1] |
Hose
|
|
| 17. |
3863438
|
[2] |
Hose clamp
|
|
| 18. |
3860413
|
[4] |
Hose clamp
|
|
| 19. |
3862550
|
[2] |
Hose
|
|
| 20. |
|
|
|
|
