沃尔沃零件查询5.0GXi-270-RElectrical SystemEngine HarnessEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
233 次

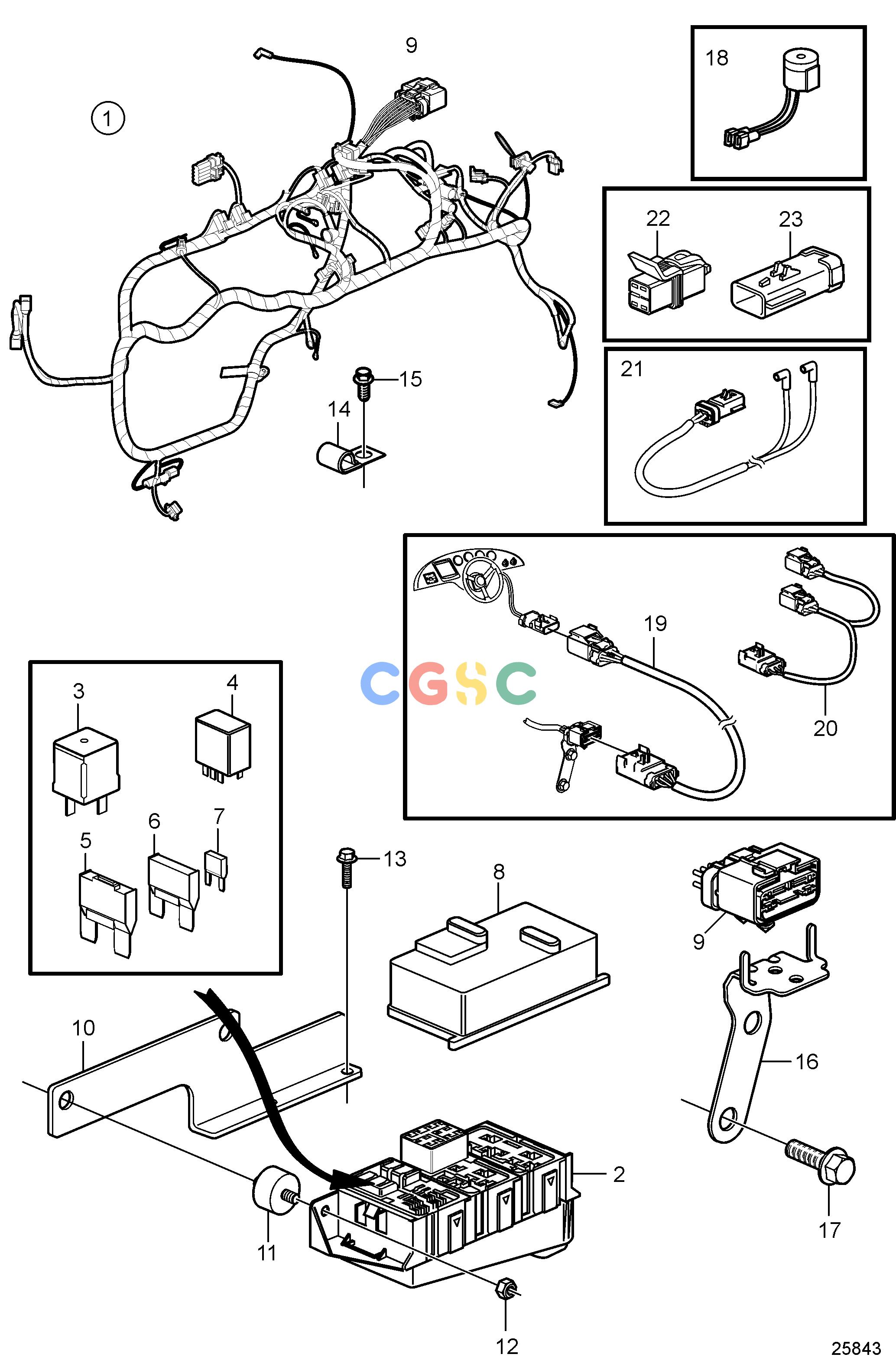

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21512118
|
[1] |
Cable harness
|
|
| 2. |
|
|
|
Not sold separately
|
| 3. |
3858809
|
[3] |
Relay
|
|
| 4. |
3841366
|
[2] |
Relay
|
|
| 5. |
3884849
|
[1] |
Fuse
|
40A
|
| 6. |
3841370
|
[1] |
Fuse
|
20A
|
| 6. |
3841371
|
[1] |
Fuse
|
40A
|
| 7. |
3841373
|
[1] |
Fuse
|
5A
|
| 7. |
3863403
|
[1] |
Fuse
|
7,5A
|
| 7. |
3841372
|
[1] |
Fuse
|
10A
|
| 7. |
3861373
|
[1] |
Fuse
|
15A
|
| 7. |
3861374
|
[1] |
Fuse
|
20A
|
| 8. |
|
|
|
Not sold separately
|
| 9. |
|
|
|
Not sold separately
|
| 10. |
|
|
|
|
| 11. |
3840402
|
[2] |
Mounting base
|
|
| 12. |
3852118
|
[2] |
Nut
|
|
| 13. |
946544
|
[2] |
Flange screw
|
|
| 14. |
3852146
|
[2] |
Clamp, J
|
D=.375'' (9,5mm)
|
| 14. |
3852434
|
[2] |
Clamp, J
|
D=.750'' (19.0mm)
|
| 14. |
3852490
|
[1] |
Attaching clamp
|
|
| 15. |
3853557
|
[2] |
Flange screw
|
3/8-16 UNC, L=0.75'' (19mm)
|
| 16. |
3884234
|
[1] |
Bracket
|
|
| 17. |
3853557
|
[2] |
Flange screw
|
3/8-16 UNC, L=0.75'' (19mm)
|
| 18. |
3883708
|
[1] |
Alarm kit
|
|
| 19. |
21147169
|
[1] |
Cable harness
|
L=3.0m, 10 ft.
|
| 19. |
21147170
|
[1] |
Cable harness
|
L=6,0m, 19.7 ft.
|
| 19. |
21147171
|
[1] |
Cable harness
|
L=8,0m, 26.2 ft.
|
| 20. |
3887733
|
[1] |
Cable harness, y
|
|
| 21. |
21544456
|
[1] |
Cable harness
|
exhaust over-heat sensors
|
| 22. |
21544465
|
[7] |
Cap
|
for sensor leads not used on this specification
|
| 23. |
21544466
|
[1] |
Cap
|
for sensor leads not used on this specification
|
