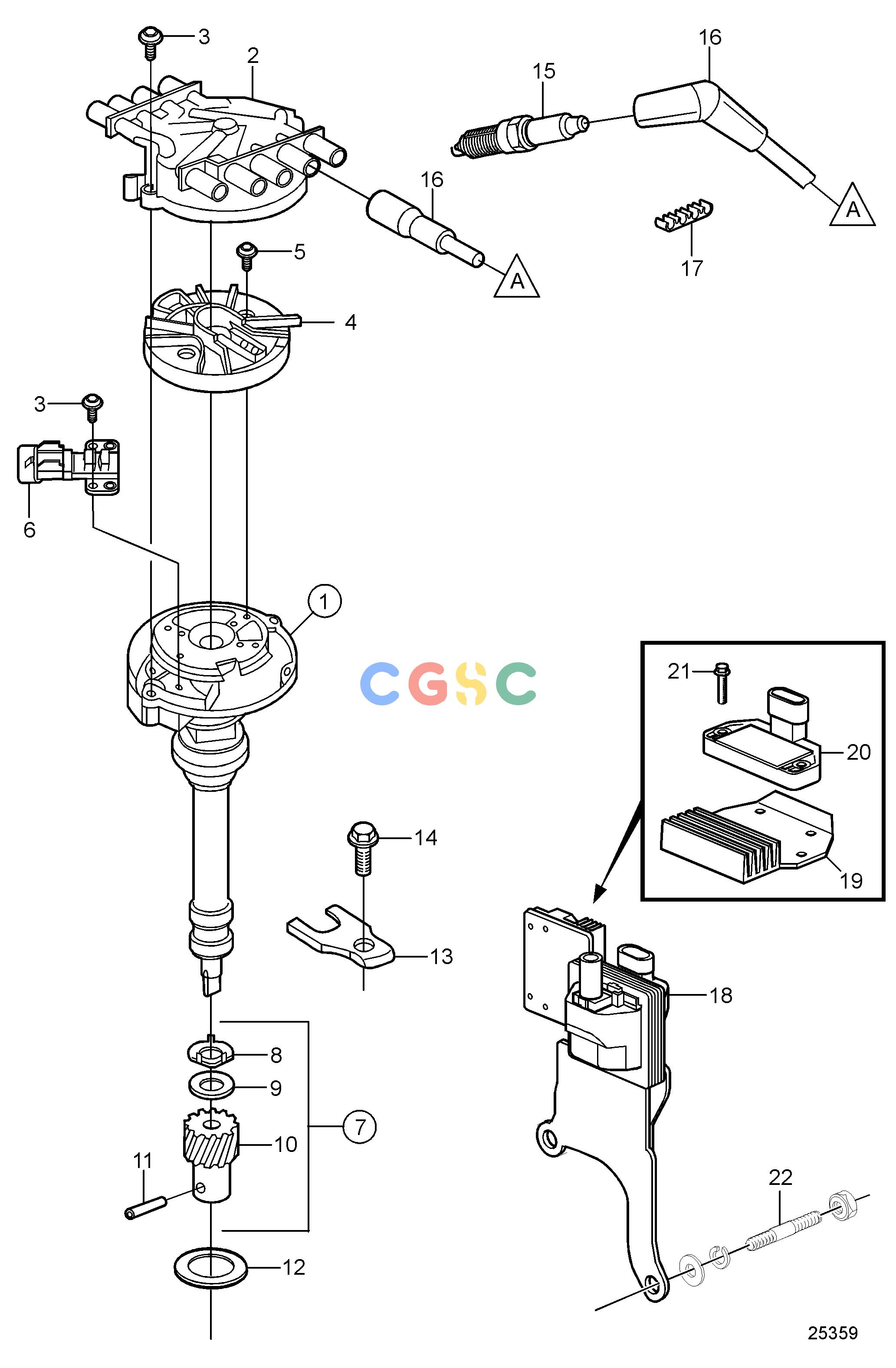

沃尔沃零件查询5.0GXi-270-RIgnitionIgnitionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
904 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3861987
|
[1] |
Distributor
|
Replaced by next part number
|
| 1. |
21622232
|
[1] |
Distributor
|
|
| 2. |
3858975
|
[1] |
Distributor cap
|
|
| 3. |
3858976
|
[4] |
Bolt
|
|
| 4. |
3858977
|
[1] |
Rotor
|
|
| 5. |
3858978
|
[2] |
Bolt
|
|
| 6. |
3863130
|
[1] |
Sensor, camshaft position
|
|
| 7. |
3858980
|
[1] |
Kit
|
|
| 8. |
|
|
|
Not sold separately
|
| 9. |
|
|
|
Not sold separately
|
| 10. |
|
|
|
Not sold separately
|
| 11. |
|
|
|
Not sold separately
|
| 12. |
3852109
|
[1] |
Gasket
|
|
| 13. |
3852108
|
[1] |
Clamp
|
|
| 14. |
3861978
|
[1] |
Screw
|
|
| 15. |
21467472
|
[2] |
Spark plug kit
|
4 pack
|
| 15. |
21467473
|
[1] |
Kit
|
24 pack
|
| 16. |
3888328
|
[1] |
Ignition cable kit
|
|
| 17. |
3852491
|
[4] |
Retainer
|
|
| 18. |
21436799
|
[1] |
Ignition coil
|
|
| 19. |
3858985
|
[1] |
Cooling plate
|
|
| 20. |
3858984
|
[1] |
Module
|
|
| 21. |
3858986
|
[2] |
Bolt
|
|
| 22. |
|
|
|
See page with flywheel and flywheel housing.
|
