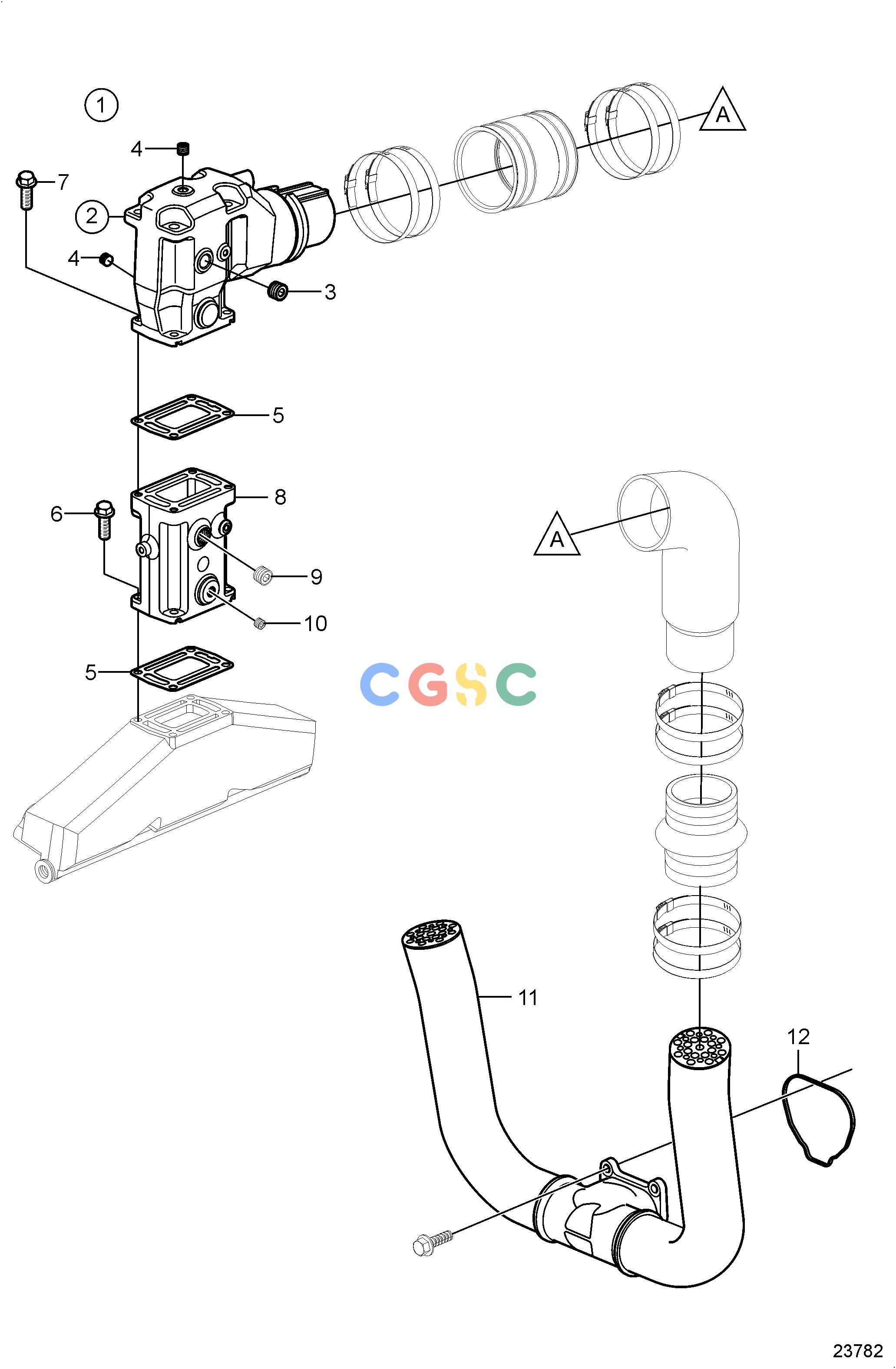

沃尔沃零件查询5.0GXi-270-RIntake and Exhaust System3'' Riser ExtensionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
184 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
40005141
|
[1] |
Kit
|
See exhaust section for mounting parts
|
| 2. |
3863061
|
[2] |
Exhaust pipe kit
|
|
| 3. |
3850999
|
[4] |
Plug
|
|
| 4. |
3850740
|
[4] |
Plug
|
|
| 5. |
3863191
|
[2] |
Kit
|
|
| 5. |
|
|
|
Not sold separately
|
| 6. |
3887488
|
[8] |
Flange screw
|
|
| 7. |
3887488
|
[8] |
Flange screw
|
|
| 8. |
3842853
|
[2] |
Exhaust pipe extensi
|
|
| 9. |
3850999
|
[4] |
Plug
|
|
| 10. |
3850740
|
[4] |
Plug
|
|
| 11. |
3888687
|
[1] |
Exhaust pipe
|
|
| 12. |
3841013
|
[1] |
Gasket
|
|
